7.
(Figure
8):
~over'the openings of the dry
ink plus cartridge with adhesive tape, and
remove the dry
ink plus cartridge.
'
8.
Place a drop cloth or a large sheet of paper
on the floor.
9. (Figure 9.2510): Remove the developer
module (REP
9.5).
A
REMOVE
SCREW
REMOVE
COVER
THE

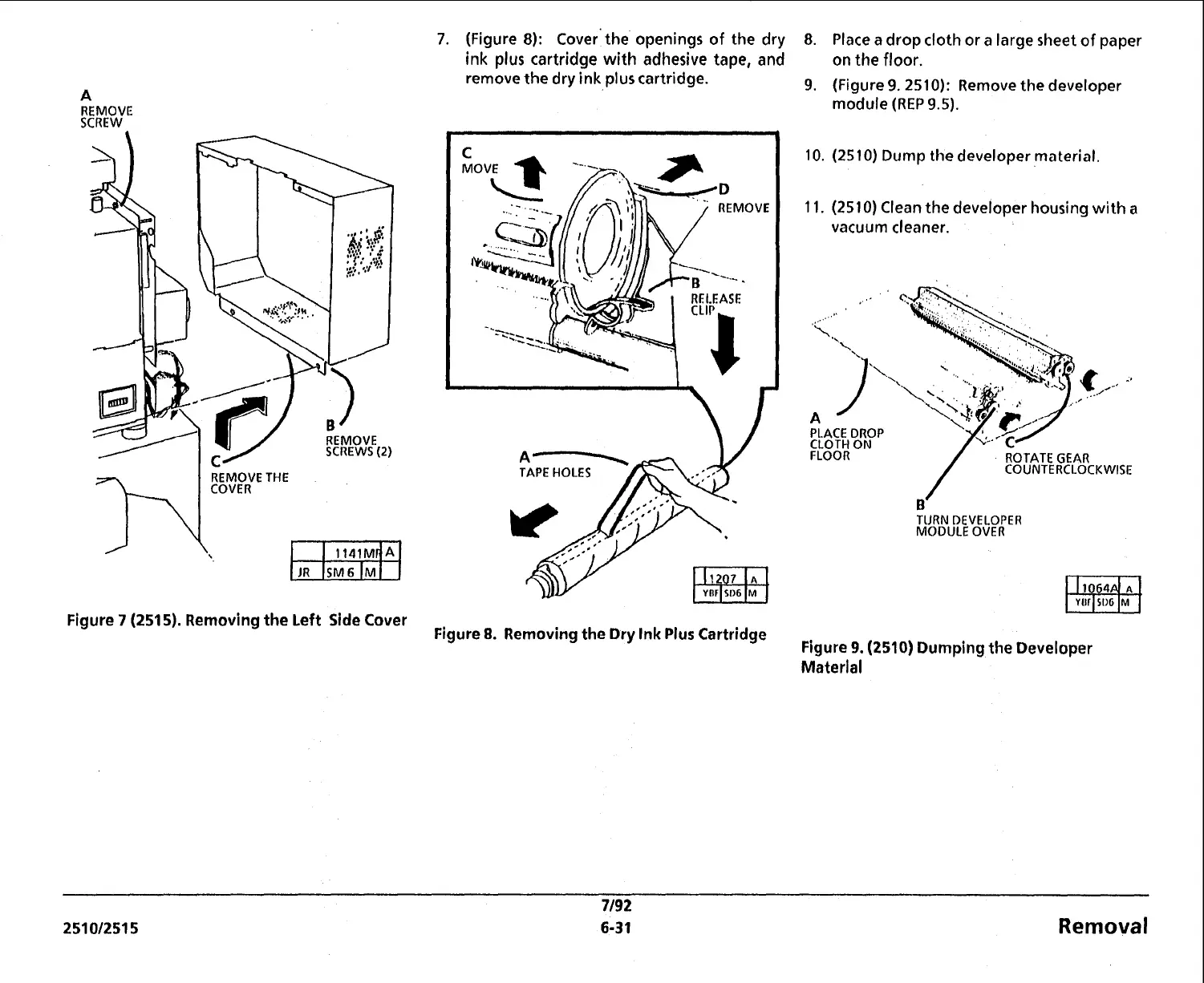

Figure
7
(2515).
Removing the Left Side Cover
Figure
8.
Removing the Dry
Ink
Plus Cartridge
10. (2510) Dump the developer material.
11.
(2510) Clean the developer housing with a
vacuum cleaner.
A
PLACE DROP
CLOTH ON
FLOOR ROTATE GEAR
COUNTERCLOCKWISE
B'
TlJRN DEVELOPER
MODULE OVER
Figure
9.
(2510)
Dumping the Developer
Material
Removal
