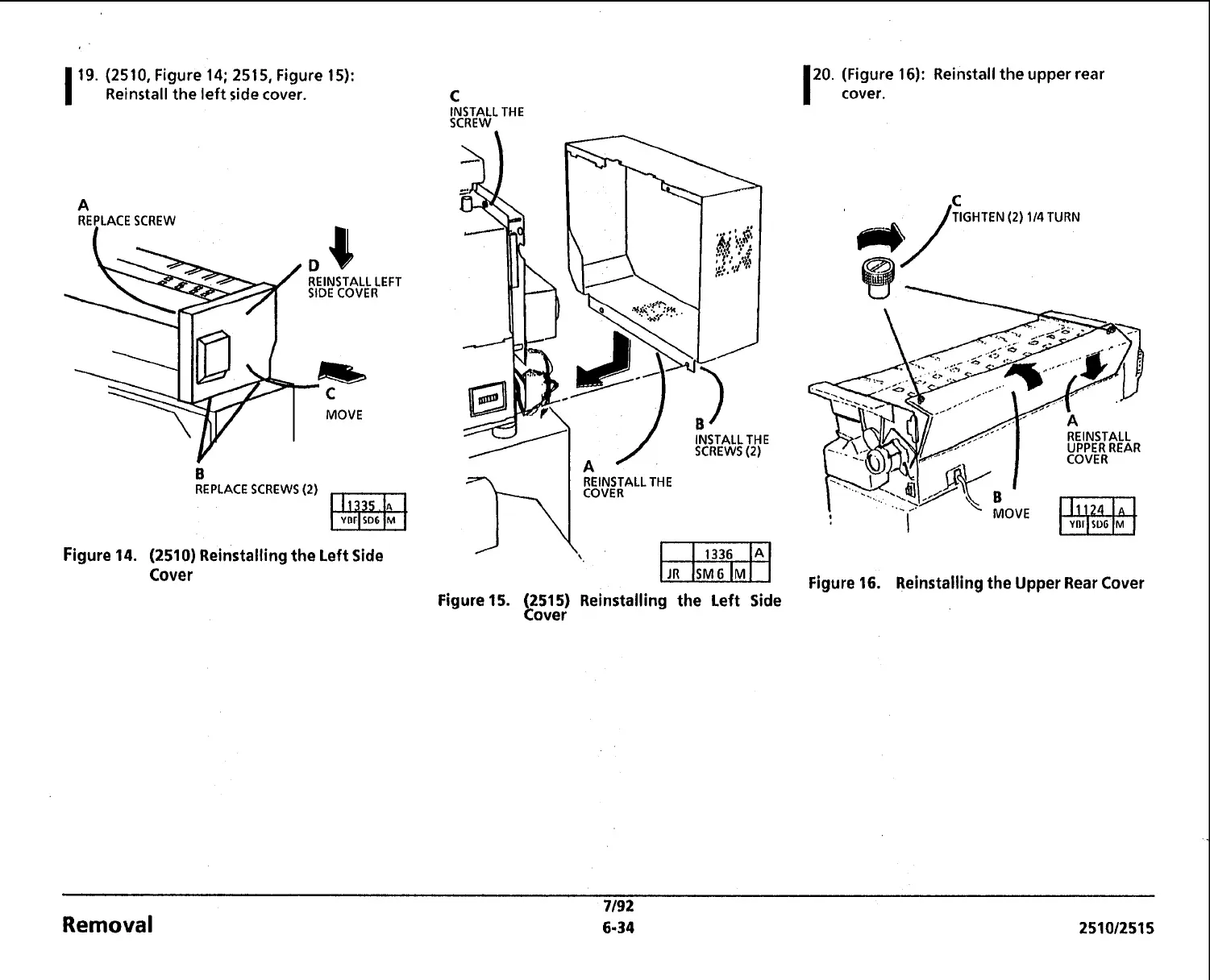

19. (2510,
Figure
14; 2515,
Figure
15):
Reinstall the left side cover.
REPLACE SCREW
REINSTALL LEFT
SIDE COVER
B
REPLACE SCREWS
(2)
Figure 14. (2510) Reinstalling the Left Side
Cover
C
INSTALL THE
SCREW
I
20.
(Figure
16):
Reinstall the upper rear
cover.
REINSTALL
COVER
THE
JR SMG
M
t-t"it"l
Figure
IS.
(2515) Reinstalling the Left Side
Cover
Figure 16. Reinstalling the Upper Rear Cover
7/92
Removal
6-34 251012515
