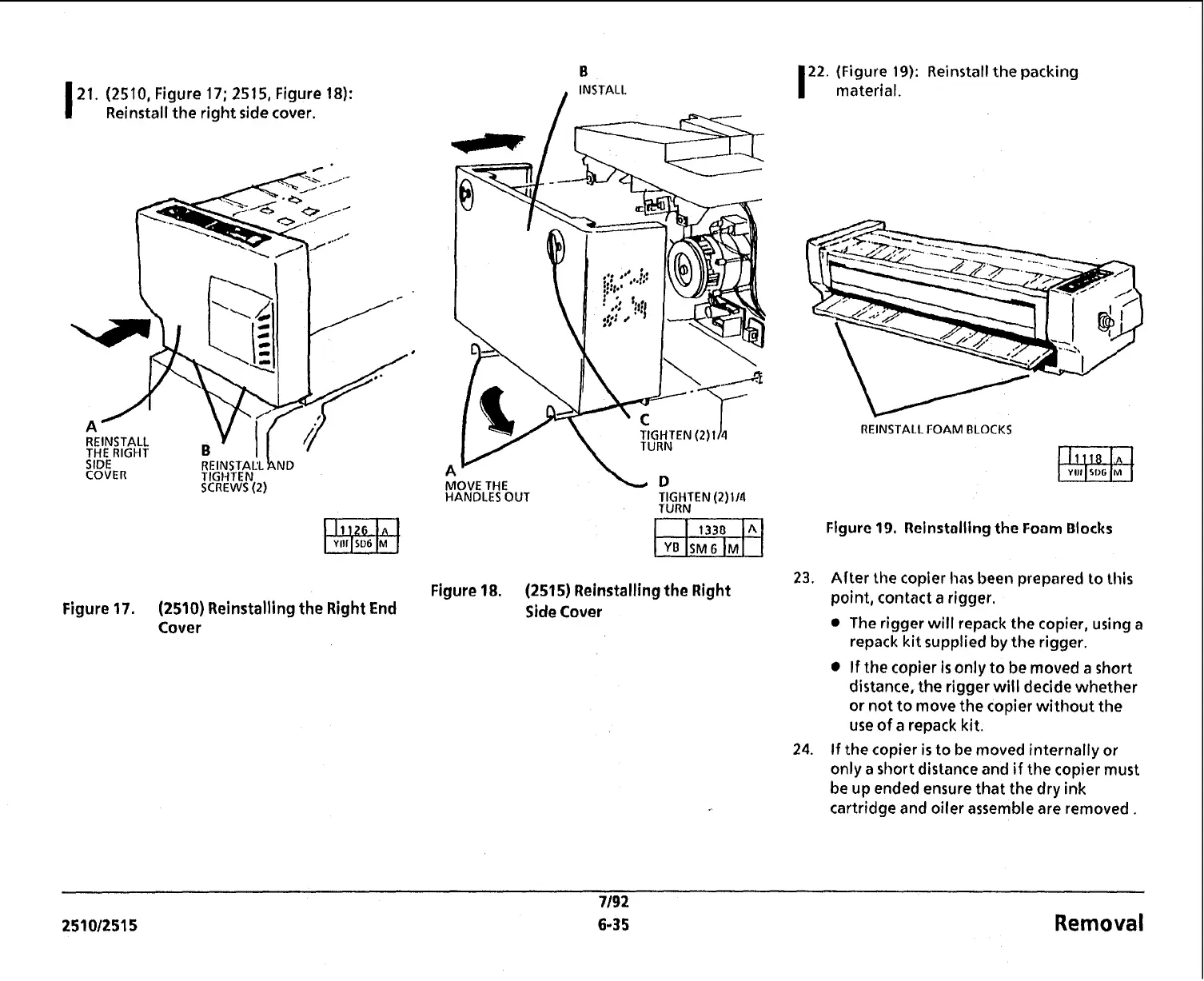

21.
(2510,
Figure
17;
251
5,
Figure
18):
I
Reinstall the right side cover.
Figure
17. (2510)
Reinstalling the Right End
Cover
MOVE
THE
HANDLES
OUT
TIGHTEN
(2)~
TURN
Figure
18.
(2515)
Reinstalling the Right
Side Cover
22.
(Figure
19):
Reinstall the packing
I
material.
REINSTALL
FOAM
BLOCKS
Flgurc
19.
Reinstalling the
Foam
Blocks
23.
After the copier has been prepared to this
point, contact
a
rigger.
The rigger will repack the copier, using a
repack kit supplied by the rigger.
If the copier
is
only to be moved a short
distance, the rigger will decide whether
or not to move the copier without the
use of
a
repack kit.
24.
If
the copier
is
to be moved internally or
only
a
short distance and if the copier must
be up ended ensure that the dry ink
cartridge and oiler assemble are removed
.
7/92
251012515
6-35
