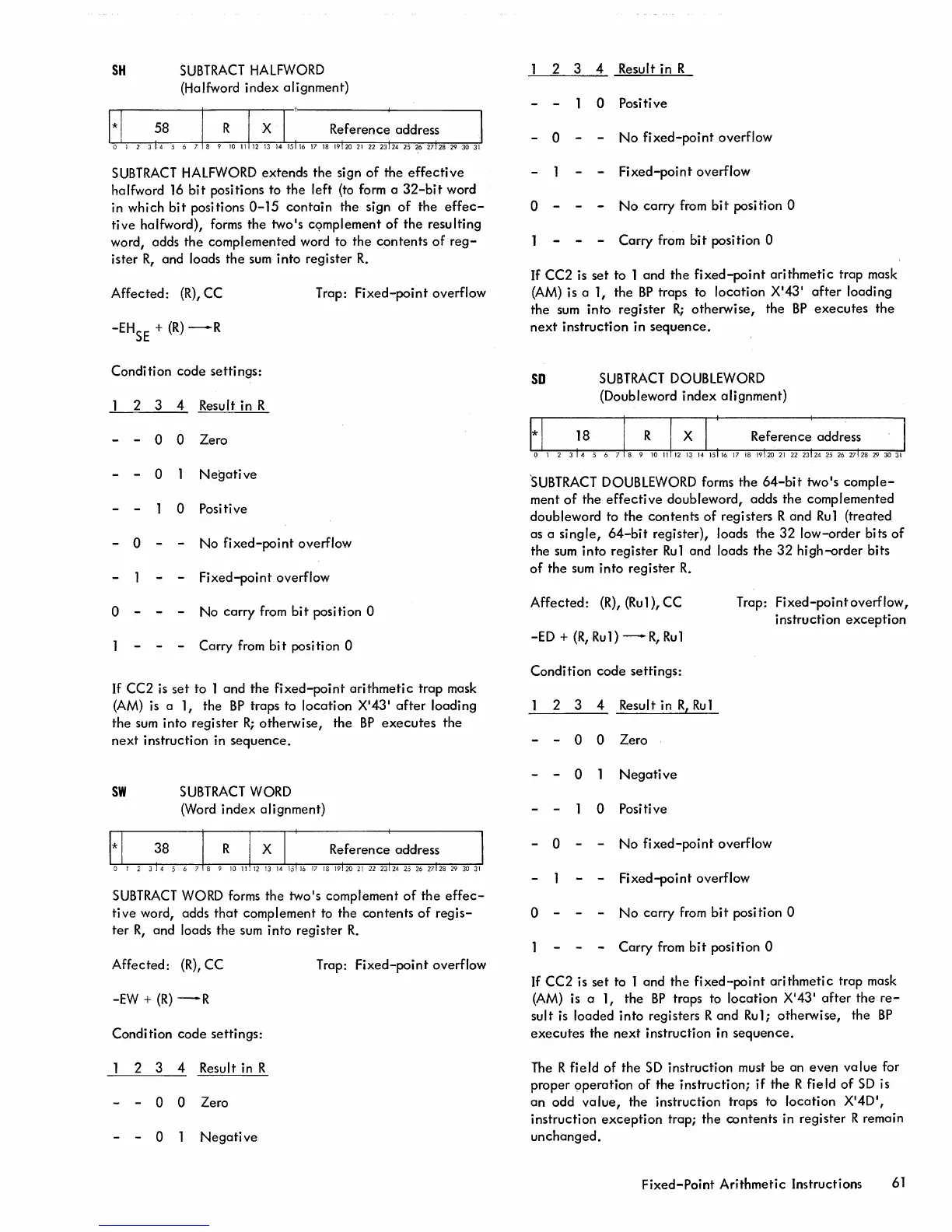

SH SUBTRACT HALFWORD
(Halfword
index alignment)
SUBTRACT HALFWORD extends the sign of the effective
halfword 16 bit positions to the left (to form a 32-bit word
in which
bit positions 0-15 contain the sign of the effec-
tive halfword), forms the two's cQmplement of the resulting
word, adds
the complemented word to the contents of reg-
ister R, and loads the sum into register R.
Affected: (R), CC
Trap: Fixed-point overflow
-EH
+ (R)-R
SE
Condition code settings:
2 3 4
Resu It in R
o 0 Zero
- -
0 Negative
o Positive
-
0 No fixed-point overflow
Fixed-point overflow
o -
No carry from bit position 0
- Carry from bit position 0
If CC2 is set to 1 and the fixed-point arithmetic trap mask
(AM) is a 1, the BP traps to location X'43' after loading
the sum into register R; otherwise, the BP executes the
next instruction in sequence.
SW SUBTRACT WORD
(Word index alignment)
o 1 314567891011121314151617181912021222324252627128293031
SUBTRACT WORD forms the two's complement of the effec-
tive word, adds that complement to the contents of regis-
ter R, and loads the sum into register R.
Affected: (R), CC Trap: Fixed-point overflow
-EW
+ (R)-R
Condition code settings:
2 3 4
Resu It in R
o 0 Zero
o Negative
2 3 4 Result in R
o Positive
-
0 - - No fixed-point overflow
- -
Fixed-point overflow
o - - - No carry from bit position 0
Carry from bit position 0
If CC2 is set to 1 and the fixed-point arithmetic trap mask
(AM) is a 1, the BP traps to location X'43' after loading
the sum into register R; otherwise, the BP executes the
next instruction in sequence.
so
SUBTRACT DOUBLEWORD
(Doubleword index alignment)
'SUBTRACT DOUBLEWORD forms the 64-bit two's comple-
ment of the effective doubleword, adds the complemented
doubleword to
the contents of registers Rand Ru1 (treated
as a single, 64-bit register), loads the 32 low-order bits of
the sum into register Ru 1 and loads the 32 hi gh -order bits
of the sum into register R.
Affected: (R), (Rul), CC
-ED + (R, Ru1) - R, Ru1
Condition code settings:
2 3 4 Result in
R, Ru1
o 0 Zero
- - 0
Negative
o Positive
Trap:
Fixed-point overflow,
instruction exception
- 0
- No fixed-point overflow
Fixed-point overflow
o -
- No carry from bit position 0
- Carry from bit position 0
If CC2 is set to 1 and the fixed-point arithmetic trap mask
(AM) is a 1,
the BP traps to location X
'
43
1
after the re-
sult is loaded into registers Rand Ru1; otherwise, the BP
executes the next instruction in sequence.
The R field of the SD instruction must be an even value for
proper operation of the instruction; if the R field of SD is
an odd value, the instruction traps to location X'4D',
instruction exception trap; the contents in register R remain
unchanged.
Fixed-Point Arithmetic Instructions 61
