Features
WorkCentre 6015 Color Multifunction Printer 21
User Guide

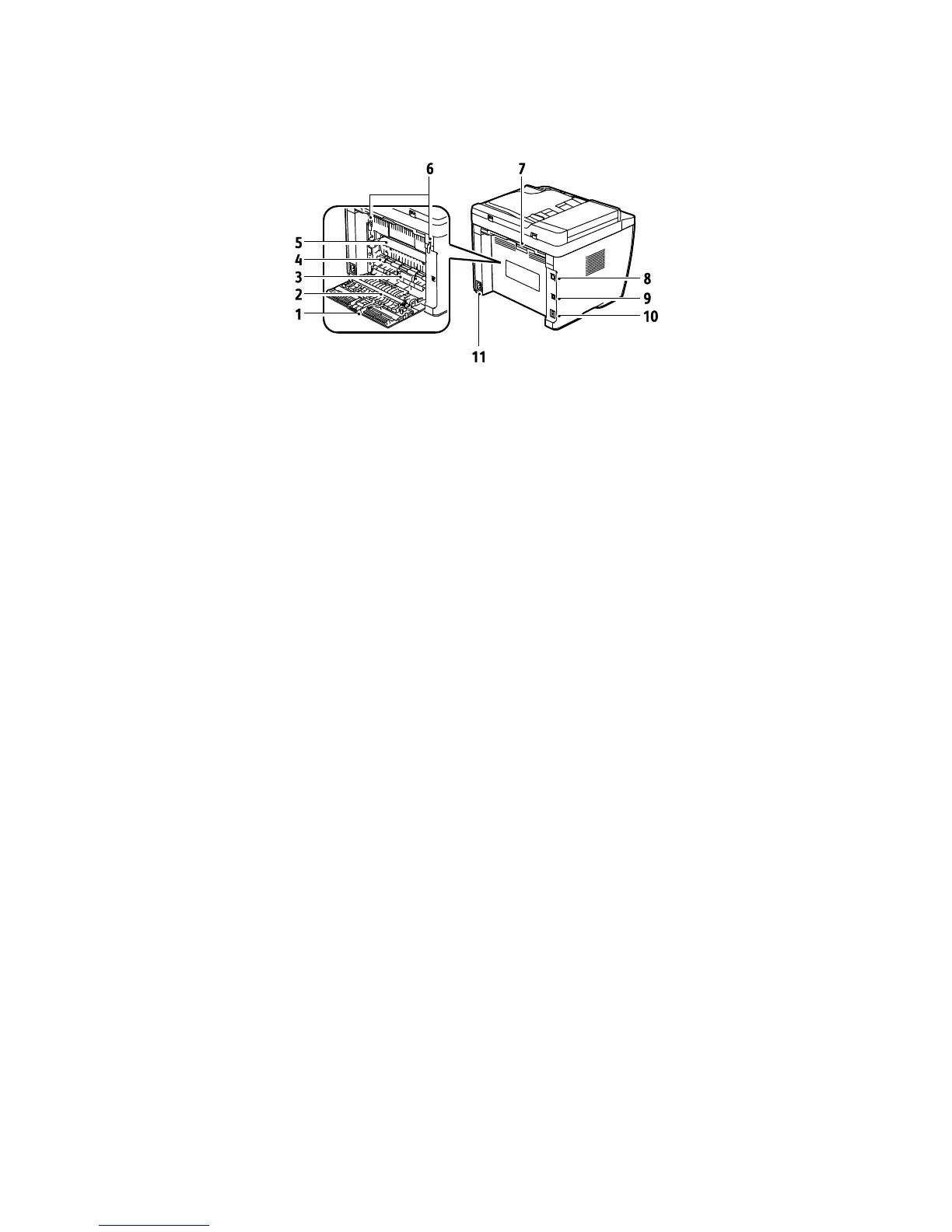

Rear View
1. Rear Cover
2. Transfer Roller
3. Paper Chute
4. Registration Roller
5. Transfer Belt
6. Fuser Roller Release Levers
7. Rear Cover Release Lever
8. Ethernet Connection
Available on WorkCentre 6015N/NI Color
Multifunction Printer only.
9. USB Port
10. Line In/Out (fax/telephone)
Available on WorkCentre 6015N/NI Color
Multifunction Printer only.
11. Power Connector
Control Panel
The control panel consists of a display, a keypad, and buttons you press to control the functions available
on the printer. The control panel:
 Displays the current operating status of the printer.
 Provides access to copy, print, scan, and fax features.
 Provides access to information pages.
 Prompts you to load paper, replace supplies, and clear jams.
 Displays errors and warnings.
For details, see Control Buttons and Indicators on page 21.
