R
eplacing
P
arts
and
Supplies

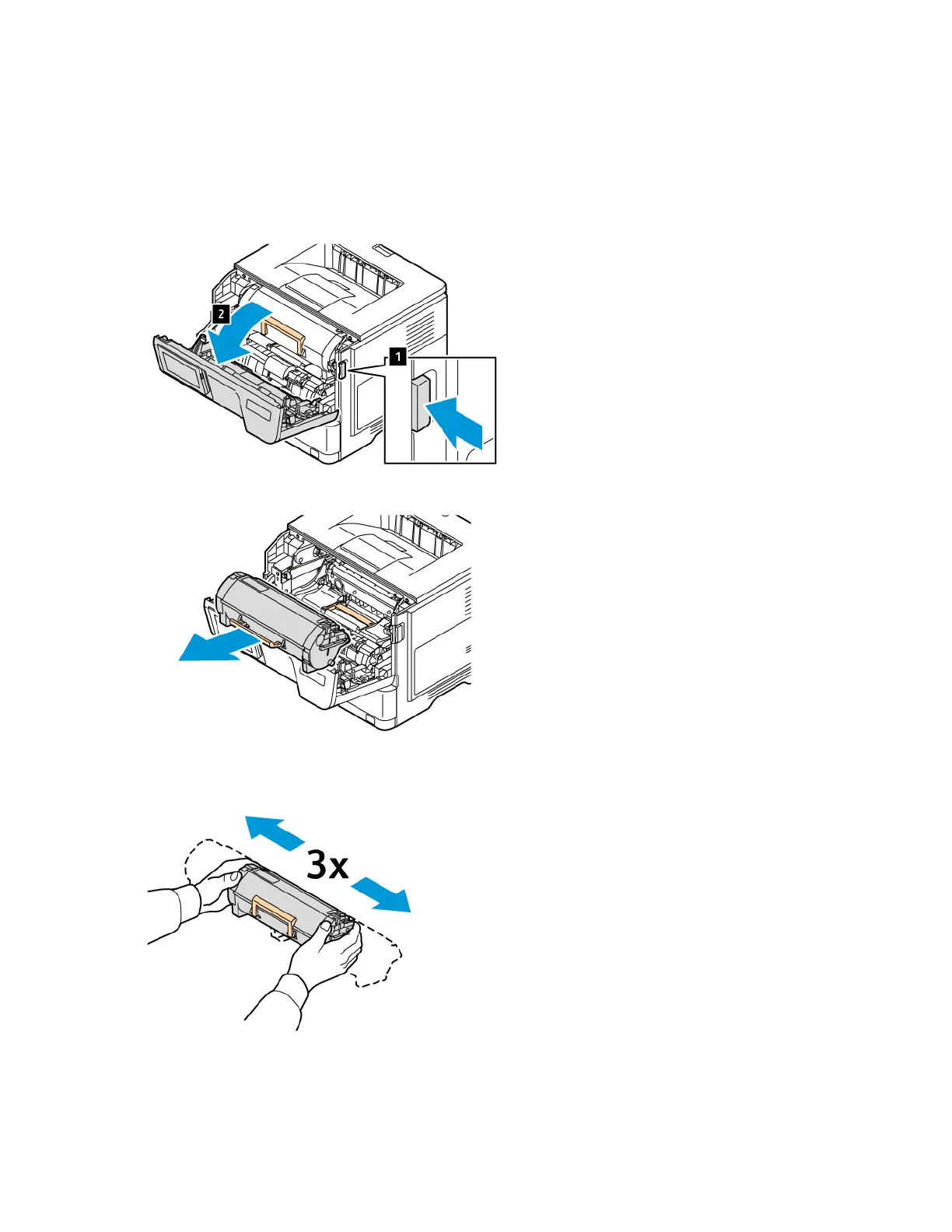

REPLACING
THE
TONER
CARTRIDGE
1.
Open
Door
A.
2.
R
emove
the
used
toner
cartridge.
3.
Unpack
the
new
toner
cartridge.
4.
Shake
the
toner
cartridge
to
redistribute
the
toner.
Xerox
®
B410
Printer
User
Guide
159
