Xerox Phaser 3600 User Manual

2.1 < System setup>
2 System setup
This chapter provides step by step information on setting up your printer.
This chapter includes:
• Using control panel menus
• Menu overview
• Printing a demo page
• Changing the display language

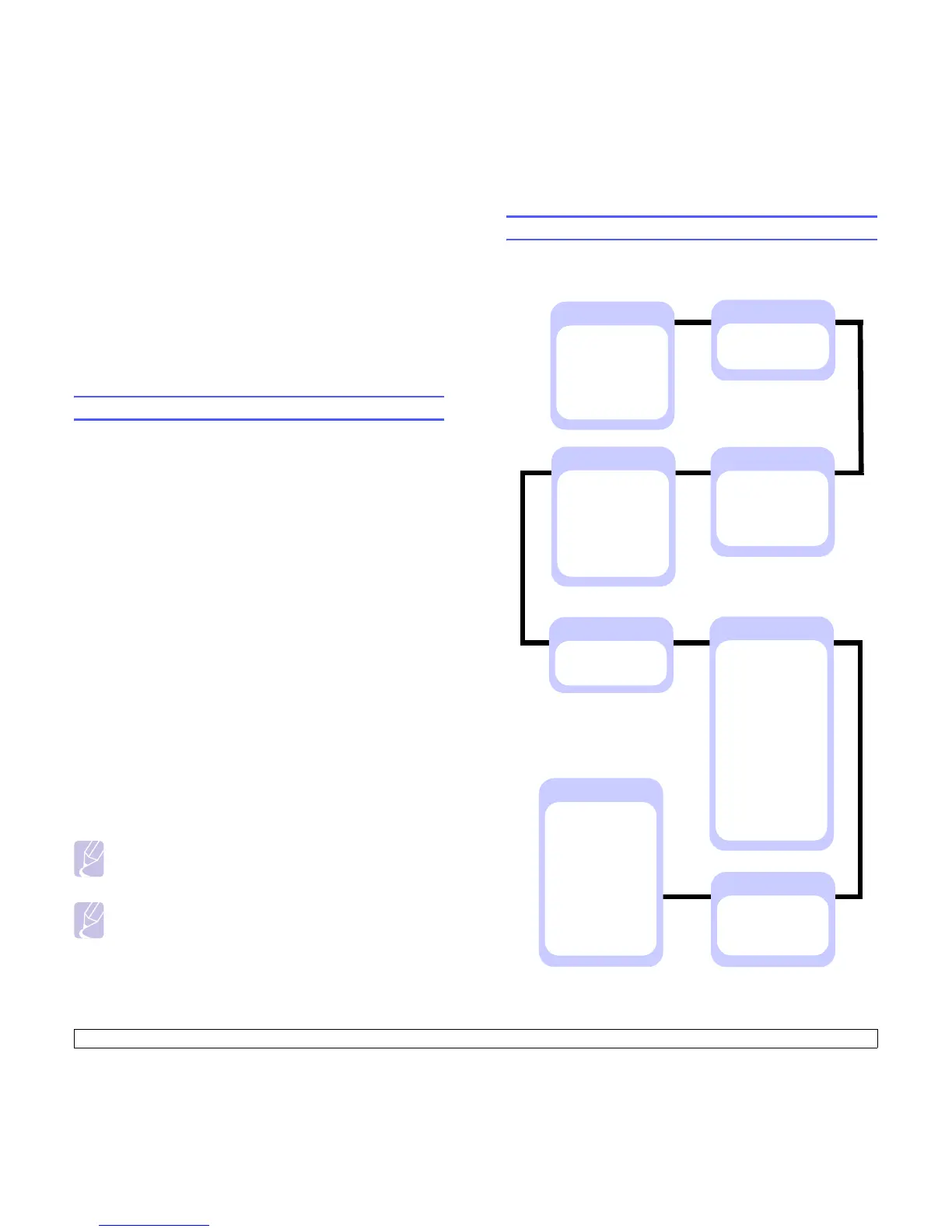

Using control panel menus
A number of menus are available to make it easy for you to change the
printer settings. The diagram on the next column shows the menus and
all of the menu items available in each menu. The items in each menu
and the options you can select are described in more detail in the tables
beginning on page 2.2.
Accessing control panel menus
You can control your printer from the printer’s control panel. You can
also set the control panel menus while the printer is in use.
1 Press Menu until the menu you want appears on the bottom line of
the display and press OK.
2 Press the Up/down arrow buttons until the desired menu item
appears and press OK.
3 If the menu item has sub menus, repeat step 2.
4 Press the Up/down arrow buttons to access the desired setting
option or the required value.
5 Press OK to save your selection.
An asterisk (*) appears next to the selection on the display,
indicating that it is now the default.
6 Press Start/Stop to return to Standby mode.
After 30 seconds of inactivity (no key being pressed), the printer
automatically returns to Standby mode.
Note
Print settings made from the printer driver on a connected
computer override the settings on the control panel.
Note
Some menus may not appear in the display depending on
options or models. If so, it is not applicable to your machine.
Menu overview
The control panel menus are used to configure the printer. The control
panel provides access to the following menus:
a. Available when the installed memory is larger than 128 MB.
b. Available when duplex unit is installed.
c. Available when optional tray 3 is installed.
Information
(See page 2.2.)
Menu Map
Configuraton
Demo Page
PCL Font List
PS3 Font List
a
FlashDirectory
EPSON Font
Layout
(See page 2.2.)
Orientation
Simplex Margin
Duplex
b
Duplex Margin
b
Image Adjust
Emulation
(See page 2.7.)
Emulation Type
Setup
Hex Mode
Paper
(See page 2.4.)
Copies
Tray 1MPT Size
Tray 1MPT Type
Tray 2 Type
Tray 3 Type
c
Paper Source
Bypass MP Tray
Tray Chaining
System Setup
(See page 2.5.)
Language
Power Save
Auto Continue
Altitude Adj.
Auto CR
Collation
a
SmartDuplexing
b
Job Timeout
Job Held Timer
a
Maintenance
Parallel Setup
USB Setup
Panel Lockout
Secure Print
Low Toner
Cm or inches
Clear Setting
Graphic
(See page 2.5.)
Resolution
Darkness
Network
a
(See page 2.8.)
TCP/IP
EtherTalk
NetWare
Ethernet Speed
Clear Setting
Network Info.
802.1x
Port 9100
LPR
IPP
SLP
CentreWare IS
SNMP
Secure Print
a
(See page 2.2.)
Release
a
Delete
a

Xerox Phaser 3600 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Warm-up time (from sleep mode)	31 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Internal memory	32 MB
Maximum internal memory	512 MB
Total input capacity	600 sheets
Total output capacity	250 sheets
Maximum input capacity	1100 sheets
Paper tray 2 input capacity	500 sheets
Functions	Print
I/O ports	Parallel (IEEE 1284), USB 2.0
Device manager	DHCP, Xerox CentreWare Internet Services Embedded Web Server, Xerox CentreWare Printer Management for Microsoft, Novell, and UNIX
Package length	563.87 mm
Depth (imperial)	18.8 \
Width (imperial)	15.7 \
Height (imperial)	15.1 \
Power requirements	240 V, 50/60 Hz
Standard input trays	2
Print memory (standard)	64 MB
Power consumption (active)	700 W
Compatible operating systems	HP-UX 10.2, Linux, Mac OS X ver.10.2 Red Hat 9, SCO, SUSE 9, Solaris 2.5.1/2.6+, Windows 2000/Vista
Acoustic power emissions (standby)	35 dB
Standard output capacity for envelopes	8000 sheets
Acoustic power emissions (active, print, copy or scan)	56 dB
PCL fonts	68
Certification	CE, UL 60950-1/CSA 60950-1-03, FCC Part 15 Class A, 73/23/EEC, RoHS 2002/95/EC
Maximum duty cycle	200000 pages per month
Recommended duty cycle	8000 pages per month
Number of PostScript fonts	136
Power consumption (standby)	13 W
Power consumption (PowerSave)	130 W
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Depth	478 mm
Width	399 mm
Height	383 mm
Package width	515.61 mm
Package height	584.19 mm
Package weight	21201.2 g
Dimensions (WxDxH)	399 x 462 x 383 mm
