Xerox Phaser 3600 User Manual

5.7 < Loading print media>
• Card stock: Print side up and the short edge entering the printer
first.
• Previously printed paper: Previously printed side down with an
uncurled edge toward the printer.
Note
Make sure that you have not loaded too much print material.
The print material buckles if you load a stack that is too thick or
if you push it in too far.
Caution
When you print on special material like envelopes, labels,
transparencies, or cards, the output location should be the
rear cover. Open the rear cover to use it. See page 5.9.

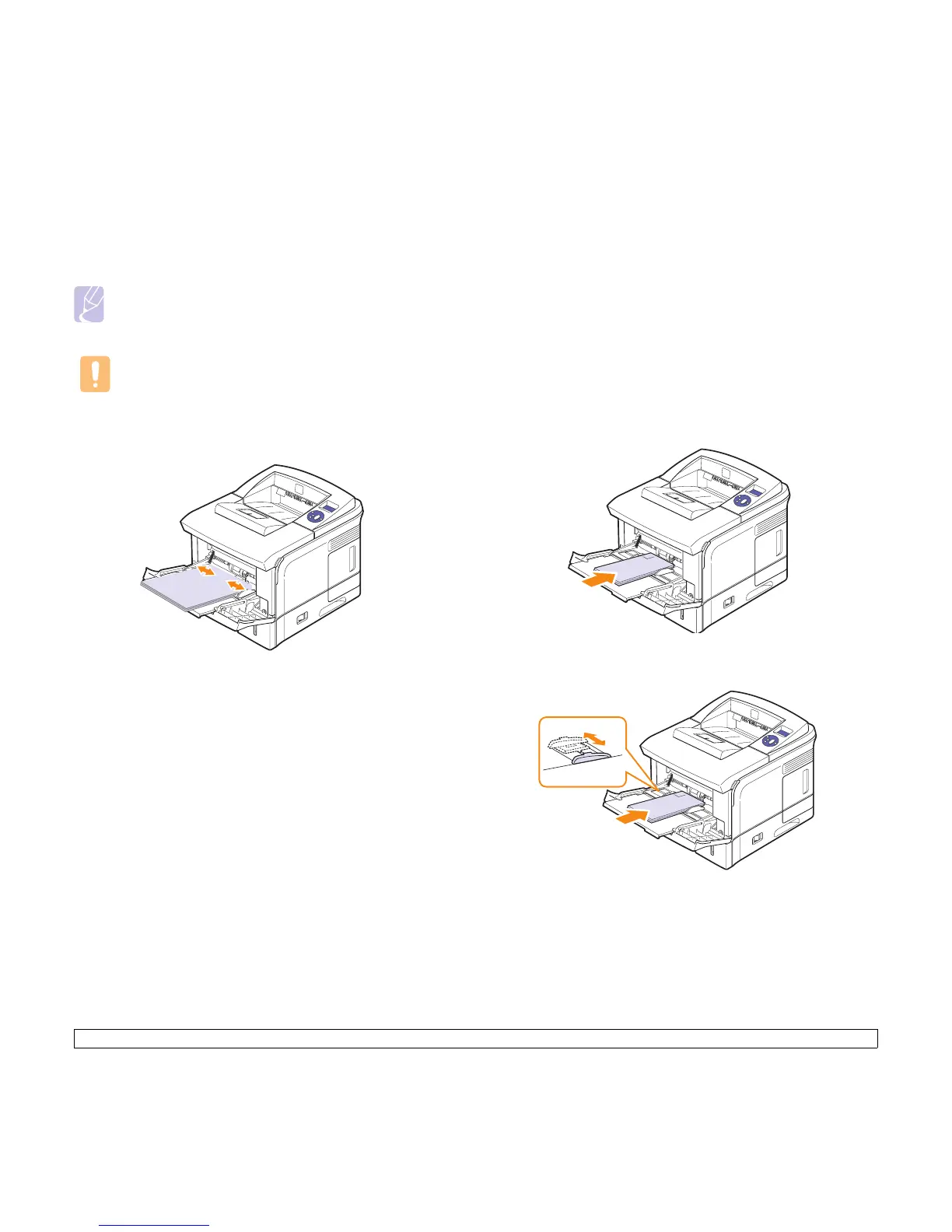

4 Squeeze tray1(MPT) paper width guides and adjust them to the
width of the paper. Do not force too much, or the paper will be bent,
which will result in a paper jam or skew.
5 When you print a document, set the paper source and type in the
software application. See the Software Section.
For information about setting the paper source and type on the
control panel, see page 2.4.
6 After printing, put the extender back to its place and close multi-
purpose tray.
Tips on using tray1(MPT)
• Load only one size of print media at a time in tray1(MPT).
• To prevent paper jams, do not add paper when there is still paper in
tray1(MPT). This also applies to other types of print media.
• Print media should be loaded face up with the top edge going into
tray1(MPT) first and be placed in the center of tray.
• Always load only the print media specified in page 5.1 to avoid paper
jams and print quality problems.
• Flatten any curl on postcards, envelopes, and labels before loading
them into tray1(MPT).
• When you print on 76 mm x 127 mm (3 x 5 inches) sized media on
tray1(MPT), open the rear cover for straight paper path to avoid
paper jams.
• Make sure to open the rear cover when you print on transparencies.
If not, they may tear while exiting the printer.
Using manual feed mode
You can manually load a sheet of print material in tray1(MPT) if you
select Manual Feed in the Source option from the Paper tab when you
change print settings to print a document. See the Software Section.
Manually loading paper can be helpful when you want to check the print
quality after each page is printed.
This loading procedure is almost the same as the procedure for loading
in tray1(MPT), except you load paper sheet-by-sheet in tray, send print
data to print the first page, and press Start/Stop on the control panel to
print each following page.
1 Load the paper with the side to be printed on facing up.
2 Squeeze tray1(MPT) paper width guides and adjust them to the
width of the paper. Do not force too much, or the paper will be bent,
which will result in a paper jam or skew.
3 When you print a document, set the paper source to Manual Feed
and select the appropriate paper size and type in the software
application. See the Software Section.
4 Print a document.
The display shows a message prompting you to load paper and
press Start/Stop.

Xerox Phaser 3600 Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	600 x 600 DPI
Warm-up time (from sleep mode)	31 s
Print speed (black, normal quality, A4/US Letter)	38 ppm
Internal memory	32 MB
Maximum internal memory	512 MB
Total input capacity	600 sheets
Total output capacity	250 sheets
Maximum input capacity	1100 sheets
Paper tray 2 input capacity	500 sheets
Functions	Print
I/O ports	Parallel (IEEE 1284), USB 2.0
Device manager	DHCP, Xerox CentreWare Internet Services Embedded Web Server, Xerox CentreWare Printer Management for Microsoft, Novell, and UNIX
Package length	563.87 mm
Depth (imperial)	18.8 \
Width (imperial)	15.7 \
Height (imperial)	15.1 \
Power requirements	240 V, 50/60 Hz
Standard input trays	2
Print memory (standard)	64 MB
Power consumption (active)	700 W
Compatible operating systems	HP-UX 10.2, Linux, Mac OS X ver.10.2 Red Hat 9, SCO, SUSE 9, Solaris 2.5.1/2.6+, Windows 2000/Vista
Acoustic power emissions (standby)	35 dB
Standard output capacity for envelopes	8000 sheets
Acoustic power emissions (active, print, copy or scan)	56 dB
PCL fonts	68
Certification	CE, UL 60950-1/CSA 60950-1-03, FCC Part 15 Class A, 73/23/EEC, RoHS 2002/95/EC
Maximum duty cycle	200000 pages per month
Recommended duty cycle	8000 pages per month
Number of PostScript fonts	136
Power consumption (standby)	13 W
Power consumption (PowerSave)	130 W
Export Control Classification Number (ECCN)	EAR99

Weight and Dimensions

Depth	478 mm
Width	399 mm
Height	383 mm
Package width	515.61 mm
Package height	584.19 mm
Package weight	21201.2 g
Dimensions (WxDxH)	399 x 462 x 383 mm
