Moving and Repacking the System
Phaser® 8510/8560MFP Multifunction Product
8-33
b. Disconnect the cable between the scanner and the rest of the system.

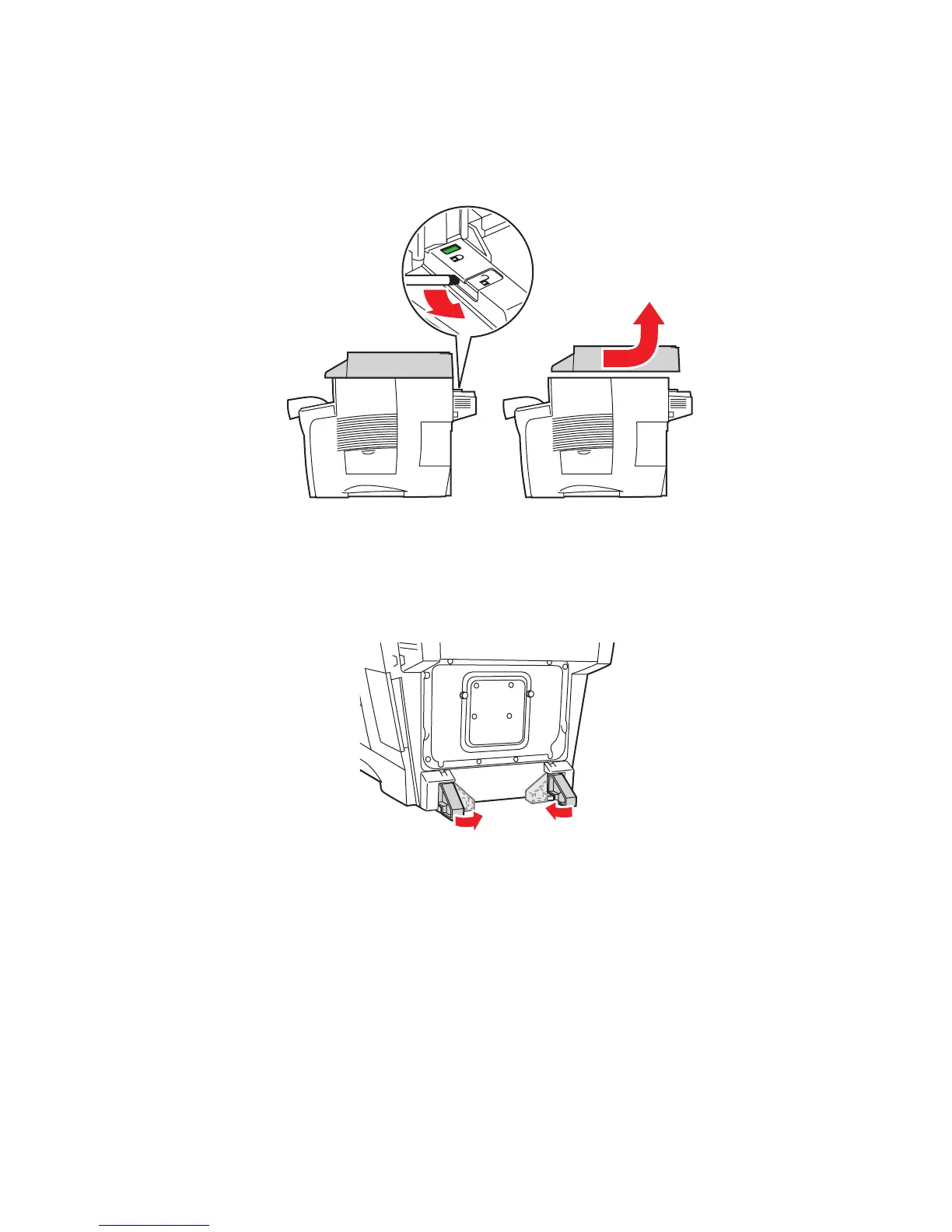

c. Using a pen, slide both the scanner latches to the unlocked position, and then slide the
scanner back and lift it away from the system.
d. Pack the scanner separately from the rest of the system
4. Fold the stabilizers in toward the system.
8560-072
8560-073
