Doc. 20780_03 53
A
DPRO Passive-Infrared (PIR) PRO Series by Xtralis Planning and Commissioning Manual
<F5> Run scope
<Ctrl> + <F5> Stop scope
<F6> Change scroll direction, “right to left” or “left to right”
<F7> Hide/ show grid
<F8> Increase signal speed
<Ctrl> + <F8> Decrease signal speed
<F9> Clear scope
<F10> Delete all triggers
<Ctrl> + <K> Open scope window
<Ctrl> + <P> Take picture
<Ctrl> + <V> View picture
<Ctrl> + <A> Picture auto
<Ctrl> + <O> Picture memo
<Ctrl> + <M> Open statistics window
<Ctrl> + <T> Test
<Ctrl> + <D> Open debugger window
The following sections discuss all the actions you can perform, the available tools and how to
use them.
10.3.1 Select Detector
Before you start using the ADPRO PRO Windows® Software, you need to select the
detector to be used. The Software normally finds the detector’s definition file automatically;
however, this step is performed only if there is no automatic loading.
There are two methods for selecting the detector in use in order to load its definition file and
connect it to the “IFM-485-ST” data bus.
First method:
1. Click “File”,

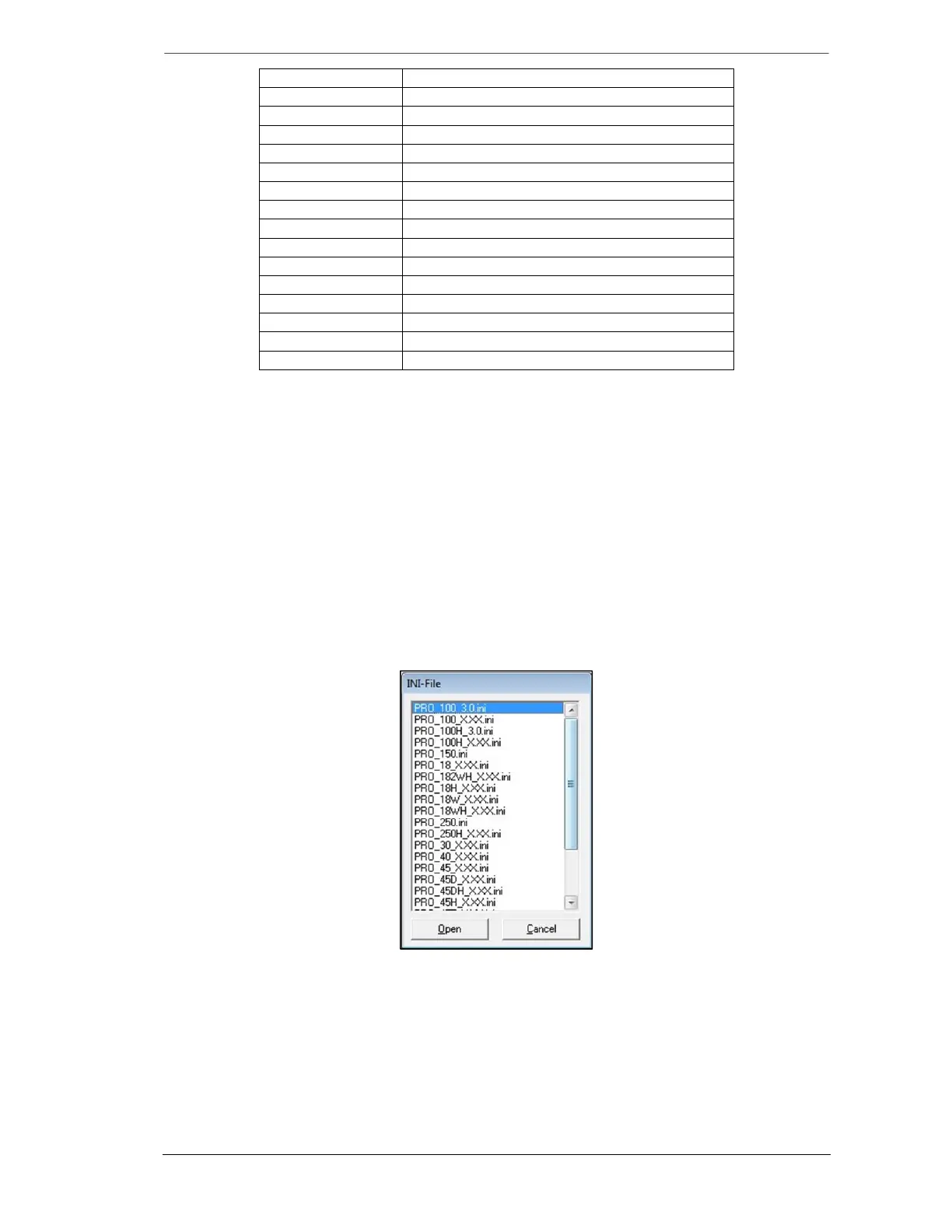

2. Click (Open Detector INI),the following appears:
3. Select the detector,
4. Click (Open).
Second method:
1. Click “Option”,
2. Click (Search
Detector),the following window appears:
