80 Doc. 20780_03

Planning and Commissioning Manual ADPRO Passive-Infrared (PIR) PRO Series by Xtralis

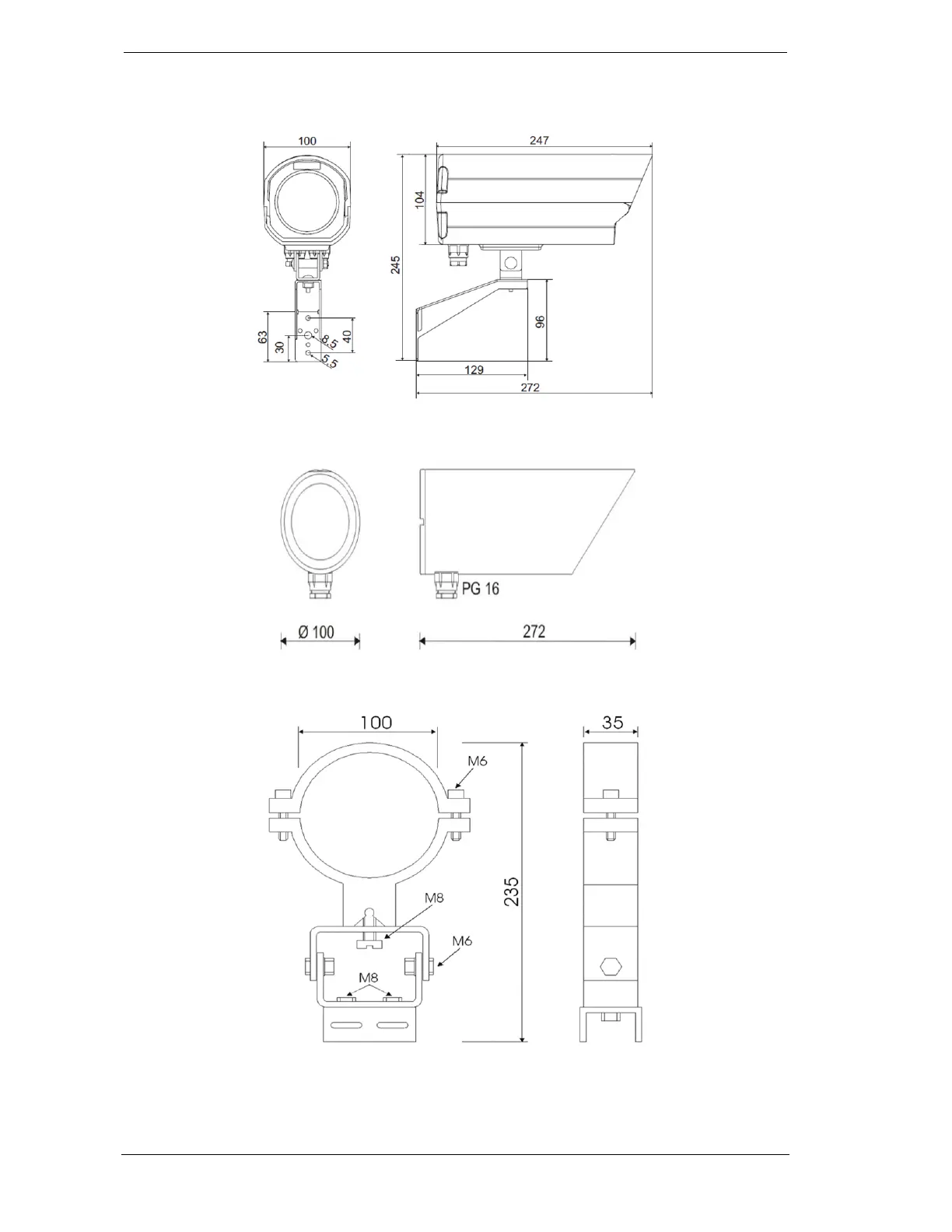

15 Dimensions

All models (except PRO-250H) with metal bracket

All dimensions are in (mms).

PRO-250H

AD 653 Pole Mount for PRO-250H (optional)
