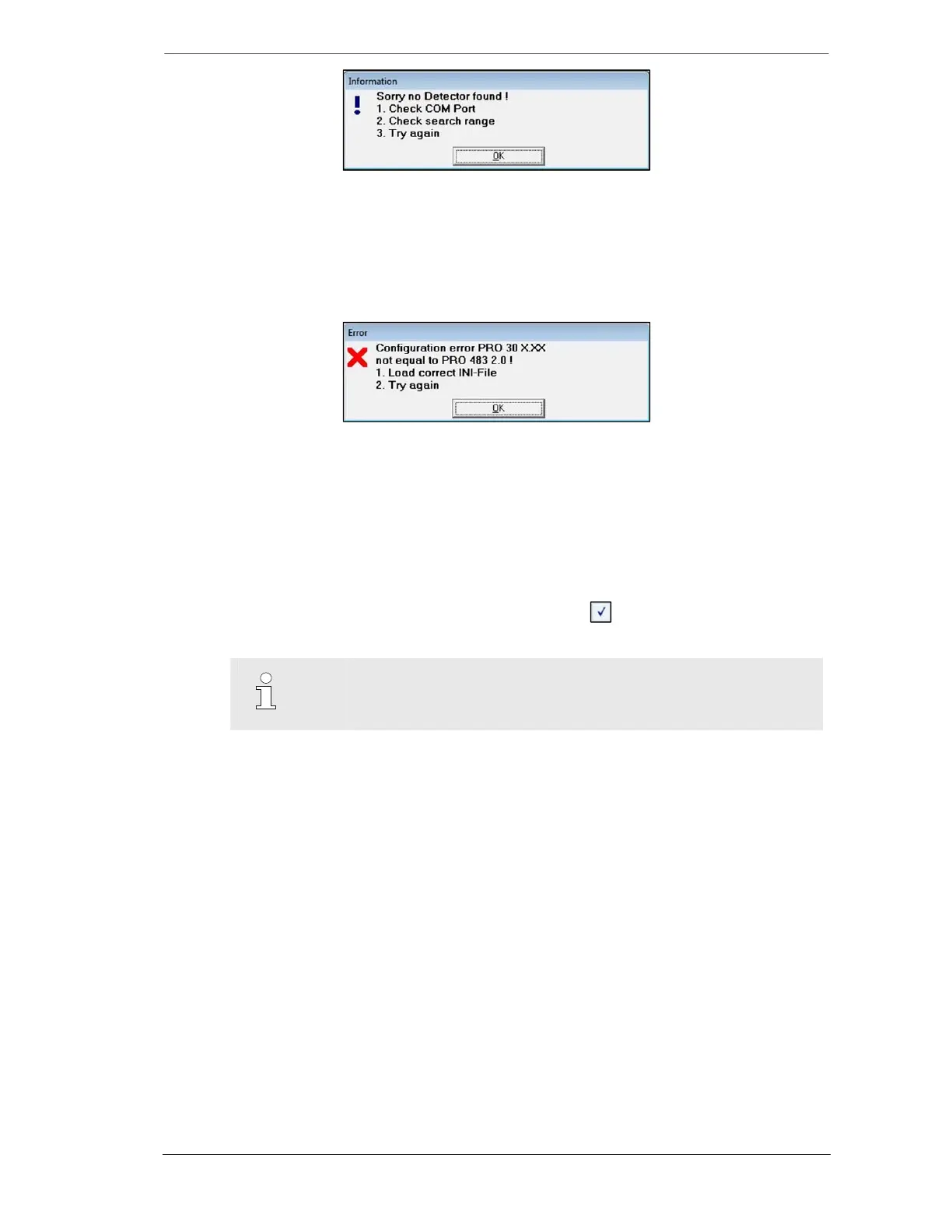

The message shows the possible reasons for not retrieving any detector. Click (OK),
check the error, and repeat the search.
4. Select the detector you want, or enter its identification number in “Choice” field,
5. Click (OK).
If you select the wrong detector, the following message appears:
Click (OK) then select the correct detector.
10.3.2 Select Communication Port
To select the communication port to which the “IFM-485-ST” data bus will be connected,
follow these steps:
1. Click “Option”,
2. Click “Com Port”, a menu listing the available ports appears,
3. Select the port you want; it will be marked with a ( ) sign.
NOTE!
Communication ports’ numbers vary according to the system you are
using and available ports.
10.3.3 File
This option enables you to select the detector in use in order to load its definition file and
connect it to the “IFM-485-ST” data bus.
For more information, refer to section (10.3.1 Select Detector).
10.3.4 Option
Through this menu you can search for a certain detector, upload/ download detector
settings, select port, etc.
Option appears as shown next:
