16.2 Curtain Detectors (Barrier Detectors)
16.2.1 ADPRO Passive-IR-Detector (PIR) PRO-45, PRO-45H and
PRO-45H-IP65
Specifications ADPRO PRO-45/PRO-45H
Model Item code
PRO-45: 201312
PRO-45H: 201736
PRO-45H/ IP65 202485
Max. Nominal Length
PRO-45: 50 m
PRO-45H: 60 m
Nominal Width PRO-45: 3.3 m
PRO-45H: 3.9 m
Nominaler Aperture angle (AA) PRO-45: 3.4°
PRO-45H: 3.8°
Sensitivity adjustment
(% of default adjustment)
DIP-Switch: 40%, 75% 100%
PRO Software: 20 - 140%
Internal Switch
 Sensitivity
 ATD
 Test
 Vandalism Detection
 Nominal mounting height

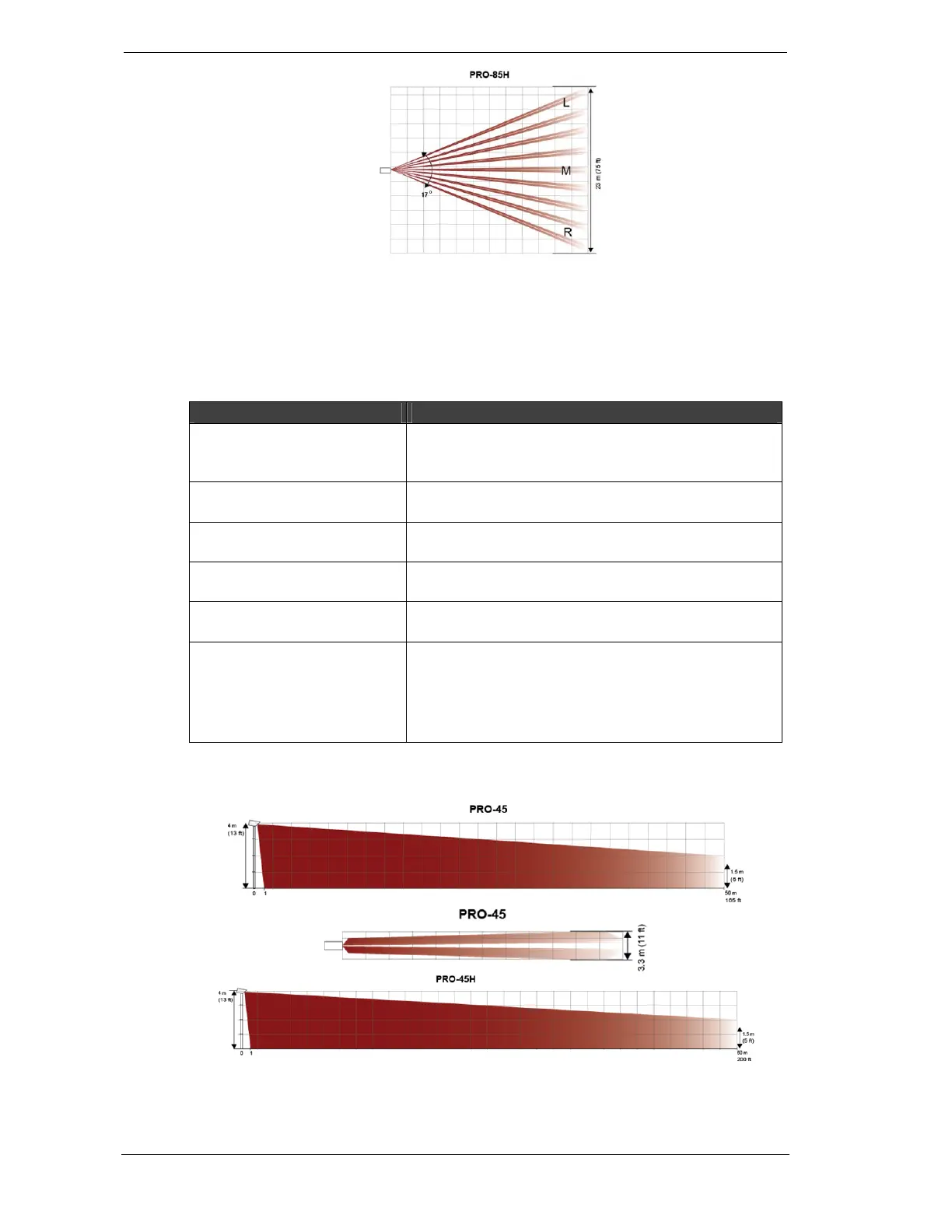

Nominal detection ranges
