90 Doc. 20780_03

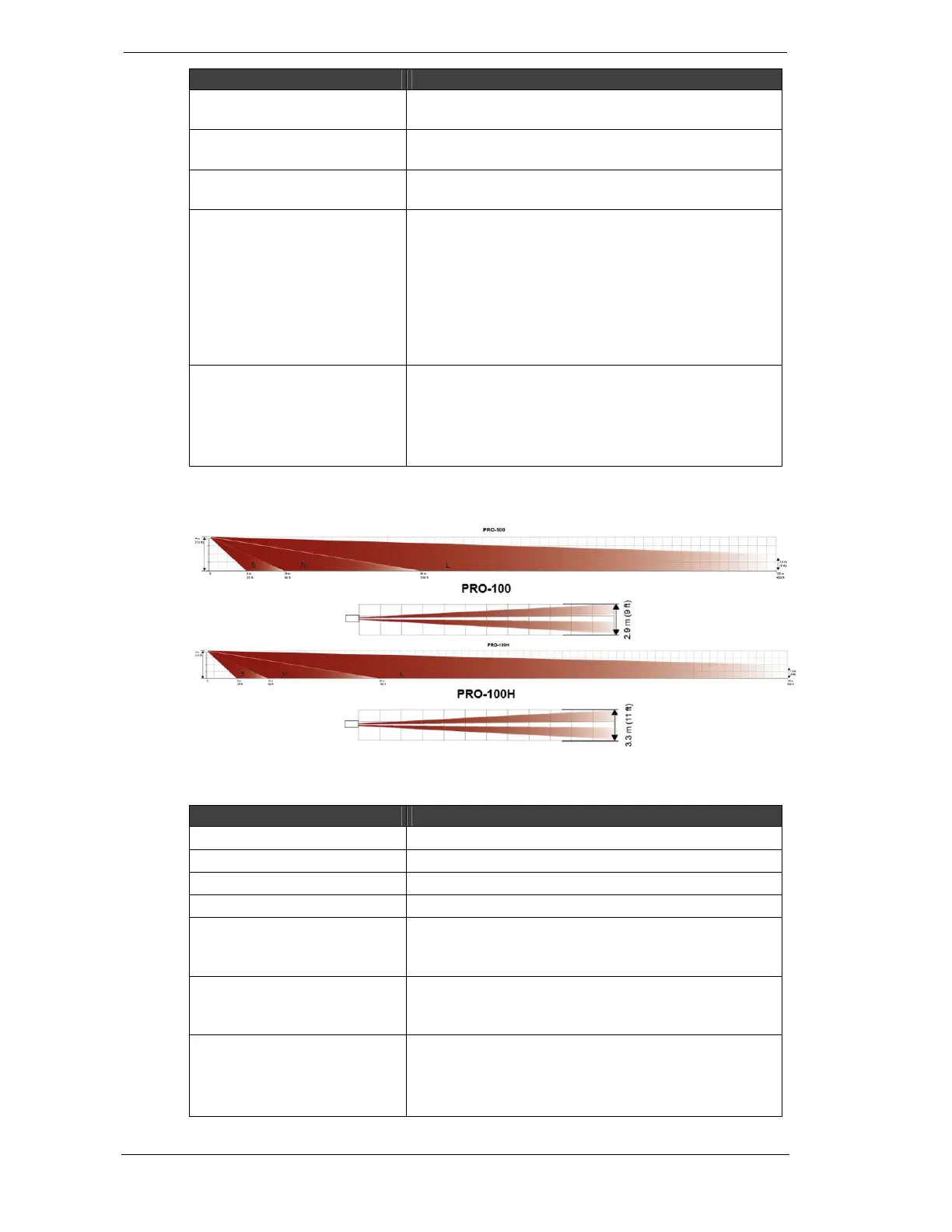

Planning and Commissioning Manual ADPRO Passive-Infrared (PIR) PRO Series by Xtralis
Specifications ADPRO PRO-100/PRO-100H
Max. Nominal Length
PRO-100: 120 m
PRO-100H: 150 m
Nominal Width PRO-100: 2.9 m
PRO-100H: 3.3 m
Nominal Aperture angle (AA) PRO-100: 1.3°
PRO-100H: 1.4°
Sensitivity and range adjustment PRO-100: DIP-Switch:
PRO Software:
PRO Software:
Length: 60, 80, 120 m
Length: 60, 72, 84, 84, 96, 108,
120 m
Sensitivity: 50 - 150%
PRO-100H: DIP-Switch:
PRO Software:
PRO Software:
Length: 75, 105, 150m
Length: 75, 90, 105, 120, 135,
150 m
Sensitivity: 50 - 150%
Internal Switch
Range (length)
ATD
Test
Vandalism Detection
Nominal mounting height
Nominal detection ranges
16.2.4 ADPRO Passive-IR-Detector (PIR) PRO-250H
Specifications ADPRO PRO-250H
Model Item code PRO-250H 202405
Max. Nominale Length 150 m
Nominal Width 3.3 m
Nominal Aperture angle (AA) 1.3°
Alarm Output 1Relay SPST 30 VDC@100 mA max.
Open collector 30 VDC@50 mA max.
Alarm zone via 3opto-coupler outputs
Sensitivity and range adjustment DIP-Switch: Length: 75, 105, 150 m
PRO Software: Length: 75, 90, 105, 120, 135, 150 m
Sensitivity: 50 – 150%
Internal Switch
Range (length)
ATD
Test
Vandalism Detection
