9-14
9

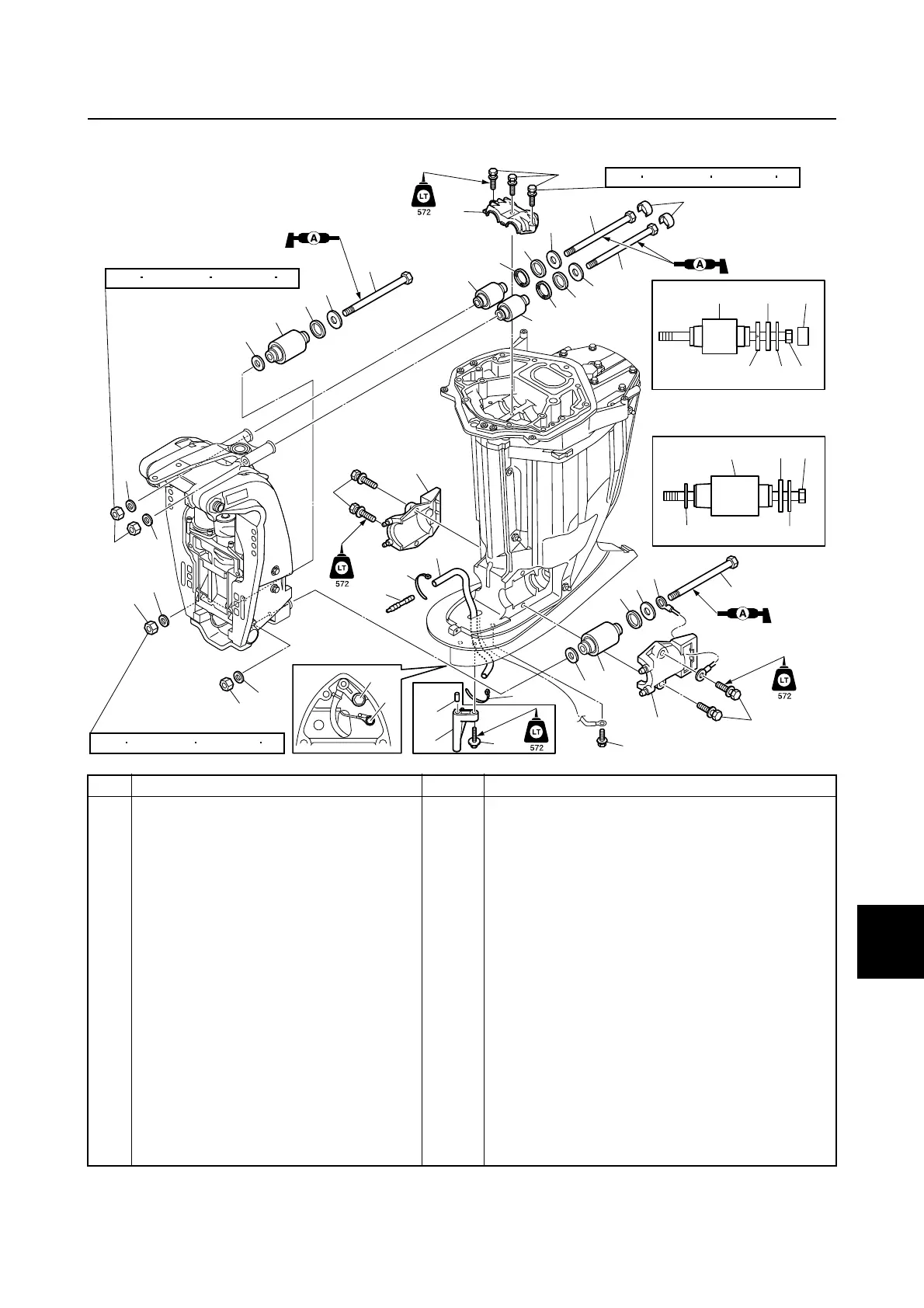

Upper case and mounts
È X-transom model
No. Part name Q’ty Remarks
1 Upper mounting nut 2
2 Lower mounting nut 2
3 Washer 4
4 Lower mount bracket bolt 4 M10 × 45 mm
5Bracket 2
6 Washer 2
7 Lower mount 2
8 Washer 2
9 Washer 2
10 Ground lead 1
11 Lower mounting bolt 2 M14 × 205 mm
12 Upper mount 2
13 Bracket 1
14 Upper mount bracket bolt 3 M10 × 45 mm
15 Washer 2
16 Washer 2
17 Washer 2
4
1
2
2
3
3
3
3
5
6
6
6
7
7
7
8
8
8
9
9
9
10
11
11
11
12
12
12
13
15
15
15
16
16
16
17
17
17
18
18
18
19
19
20
20
21
22
22
23
24
25
26
26
54 N m (5.4 kgf m, 39.8 ft lb)
72 N m (7.2 kgf m, 53.1 ft lb)
72 N m (7.2 kgf m, 53.1 ft lb)
4
5
14
È
Bottom cowling / Upper case and mounts
