Yamaha F25A - Page 102

4-6
E
FUEL
CARBURETOR

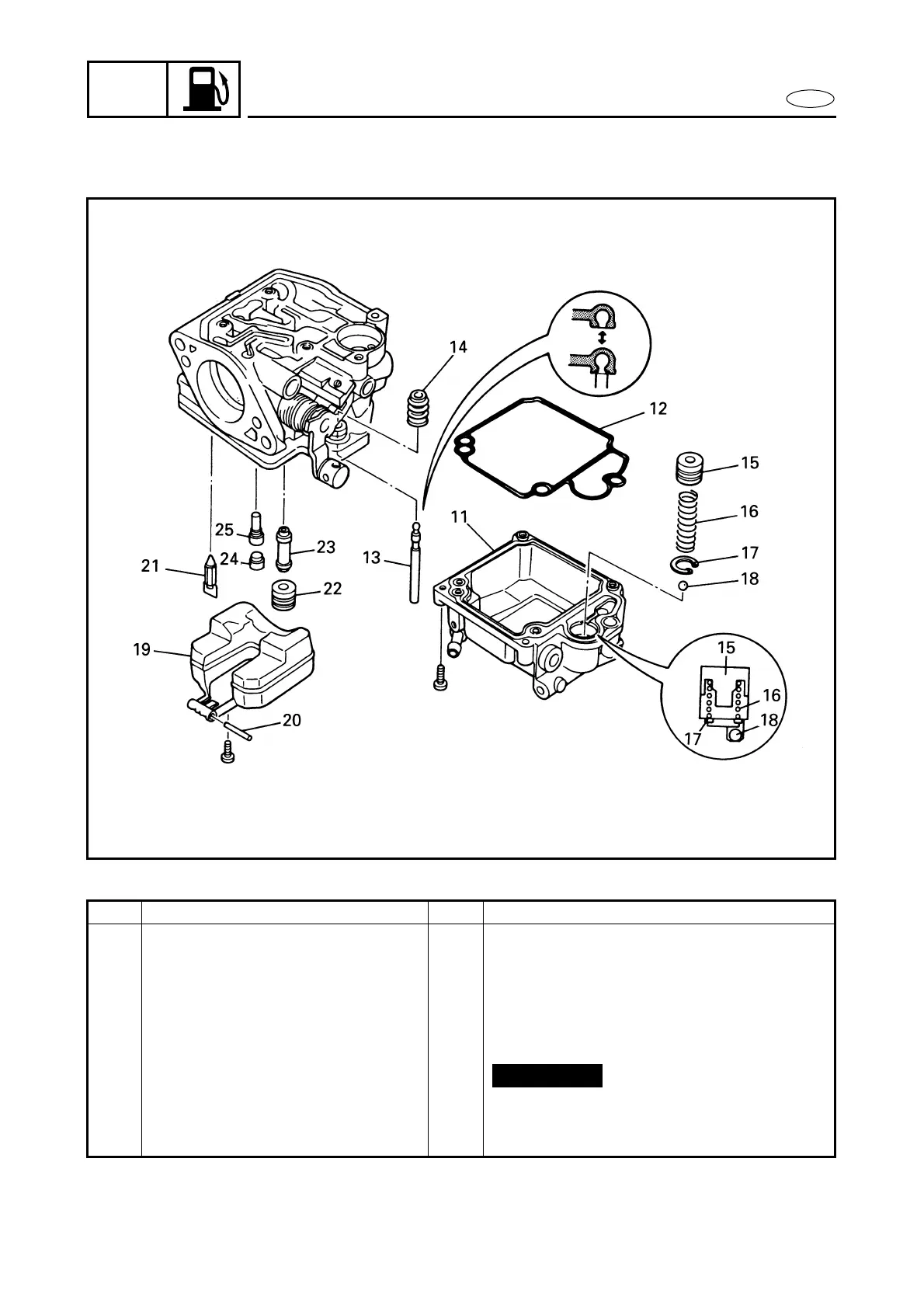

EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
11 Float chamber 1
12 Rubber gasket 1
13 Plunger rod 1
14 Rubber boot 1
15 Plunger 1
16 Spring 1
17 Circlip 1
18 Ball 1
19 Float 1
20 Float pin 1
Not reusable
