Yamaha F25A - Propeller Shaft Assy Exploded Diagram

6-5
E
LOWR
PROPELLER SHAFT ASSY.
PROPELLER SHAFT ASSY.

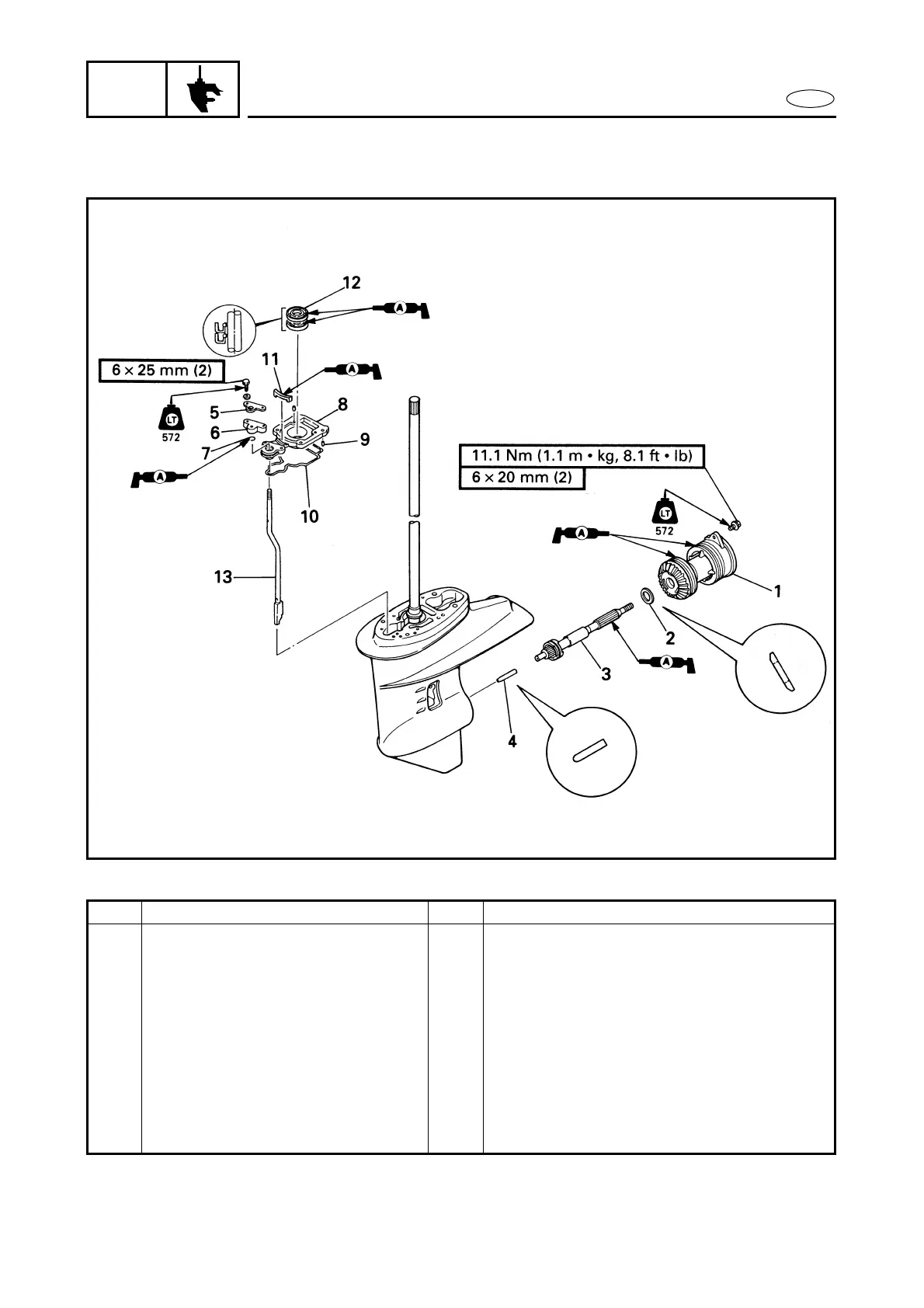

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
PROPELLER SHAFT ASSY.
REMOVAL
Follow the left “Step” for removal.
Gear oil Refer to “LOWER UNIT” in chapter 3.
Propeller Refer to “LOWER UNIT”.
Water pump Refer to “WATER PUMP”.
1 Propeller shaft housing assy. 1
2 Thrust washer 1
3 Propeller shaft assy. 1
4 Shift plunger 1
5 Shift shaft bracket 1
