Yamaha F25A - Lower Unit Exploded Diagram

6-1
E
LOWR
LOWER UNIT
EXPLODED DIAGRAM

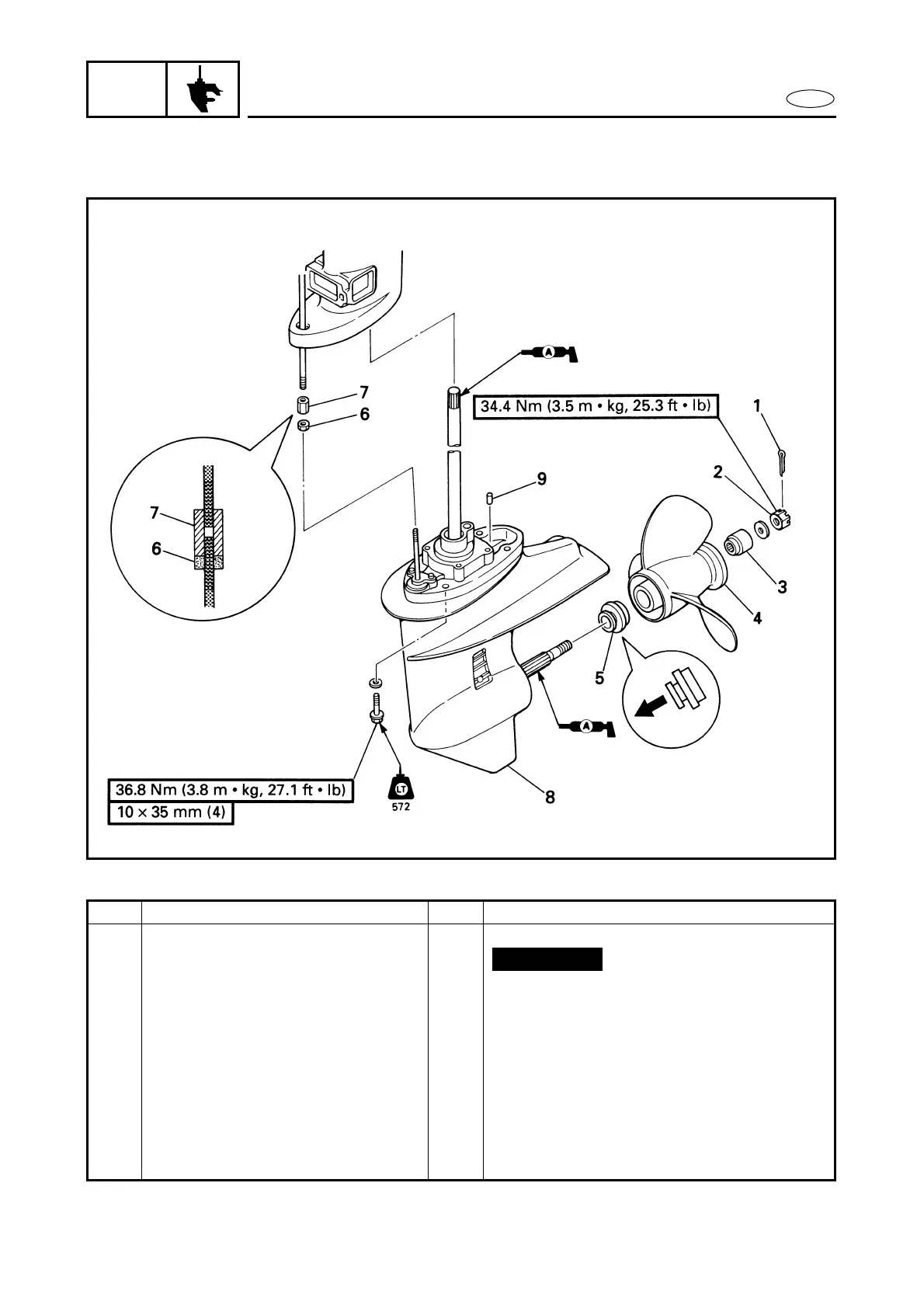

REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
LOWER UNIT REMOVAL Follow the left “Step” for removal.
1 Cotter pin 1
2 Propeller nut 1
3 Spacer 1
4 Propeller 1
5 Collar 1
6 Locknut 1
7 Adjusting nut 1
8 Lower unit 1
9 Dowel pin 2
Reverse the removal steps for installation.
Not reusable
LOWER UNIT
