Yamaha F25A - Wire Harness (MH) Wiring Diagram

8-4
E
–+
ELEC

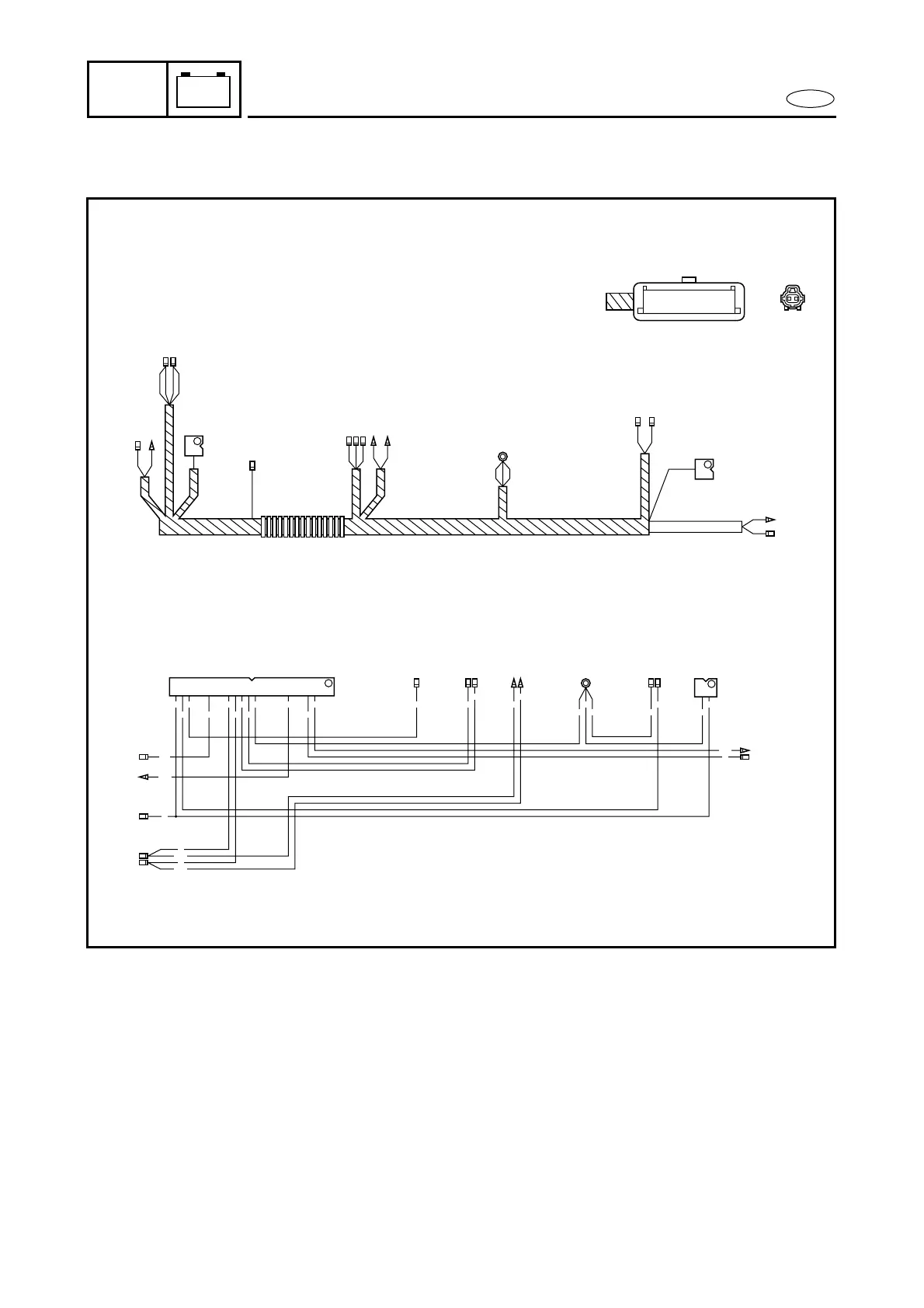

WIRE HARNESS
WIRE HARNESS (MH)
WIRING DIAGRAM
A
A
B
1
1
4
2
2
3
3
4
5
8
9
9
0
0
A
A
8
13 14 15 18 19 20 22 24 1 2 6 9 10
R/W P Y
W
Y
W/G B
B
B
Br/B
P
B
O
P/W B/W
Br/B
R/W
B/W
Br/B
O G/W Y/R
Y/R
P/W
Y/B
Y
Y/B
Br/B Y
CDEFGHIJKLMN
1234567890AB
AB
B
756
67
G/W
W/G
Y/B
Y/B
Connect to:
1 Low-oil-pressure warning lamp
2 Electrothermal ram
3 CDI unit
4 Engine stop switch
5 Oil pressure switch
6 Charge coil
7 Power bobbin
8 Ground
9 Engine temperature sensor
0 Pulser coil
A Ignition coil
B : Black
O : Orange
P : Pink
W : White
Y : Yellow
B/W : Black/white
Br/B : Brown/black
G/W : Green/white
P/W : Pink/white
R/W : Red/white
W/G : White/green
Y/B : Yellow/black
Y/R : Yellow/red
