Yamaha F25A - Clamp Bracket (EHT, ET) Exploded Diagram

7-15
E
BRKT
CLAMP BRACKET
CLAMP BRACKET (EHT, ET)

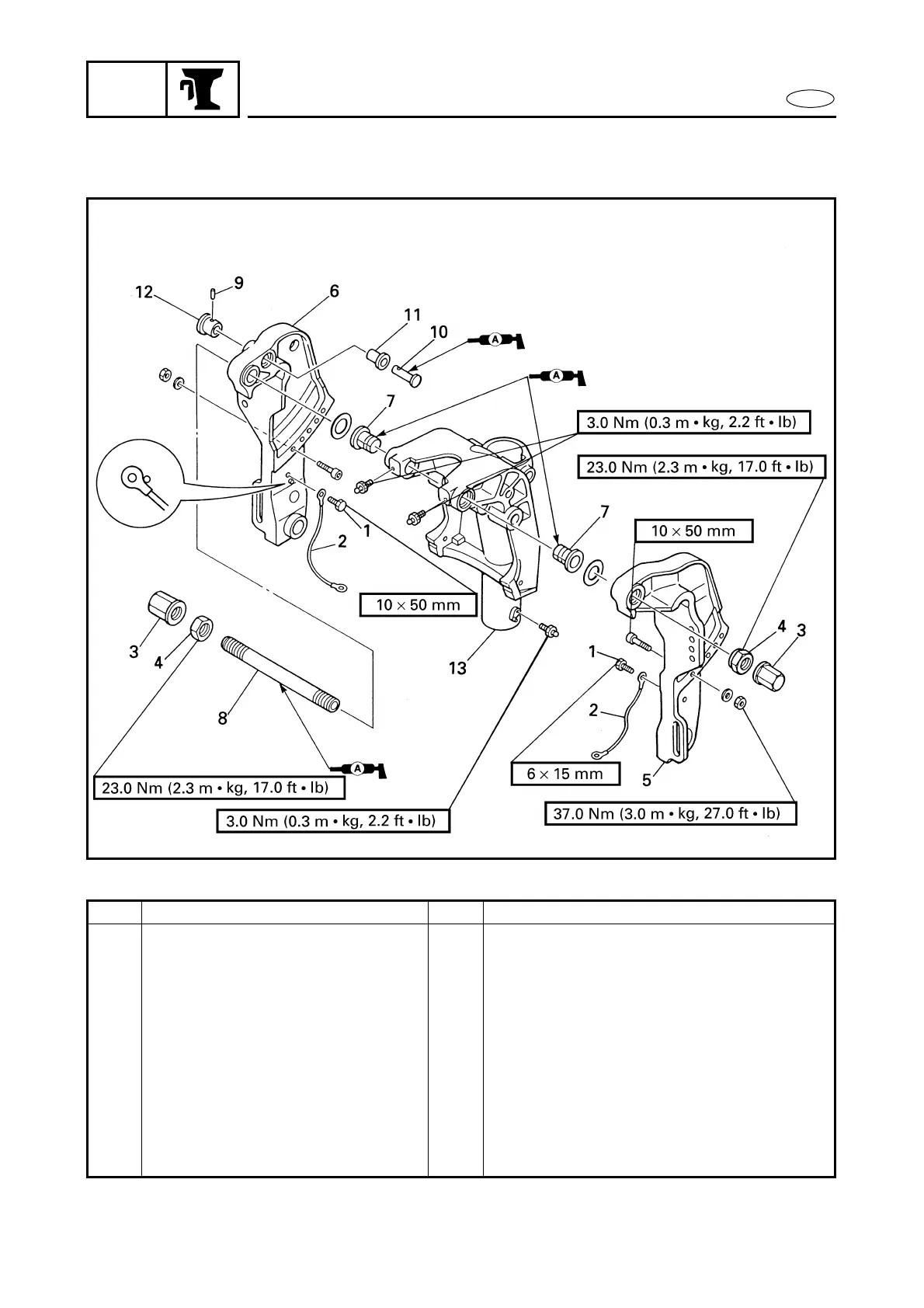

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
CLAMP BRACKET DISASSEMBLY Follow the left “Step” for removal.
PTT unit Refer to “POWER TRIM AND TILT (PTT)
UNIT”.
1 Bolt 2
2 Ground lead 2
3 Cap nut 2
4 Nut 2
5 Left clamp bracket 1
6 Right clamp bracket 1
7 Bushing 2
8 Shaft bolt 1
