Yamaha F25A - Starter Switch (EH, EHT) Check; Neutral Switch (EH, EHT) Check

8-20
–+
ELEC
E
STARTING SYSTEM
Tester positive lead 1 →
Starter relay terminal
Tester negative lead 2 →
Starter relay terminal
Battery positive terminal →
Brown terminal 3
Battery negative terminal →
Black terminal 4
● Check that there is continuity between
the starter relay terminals.

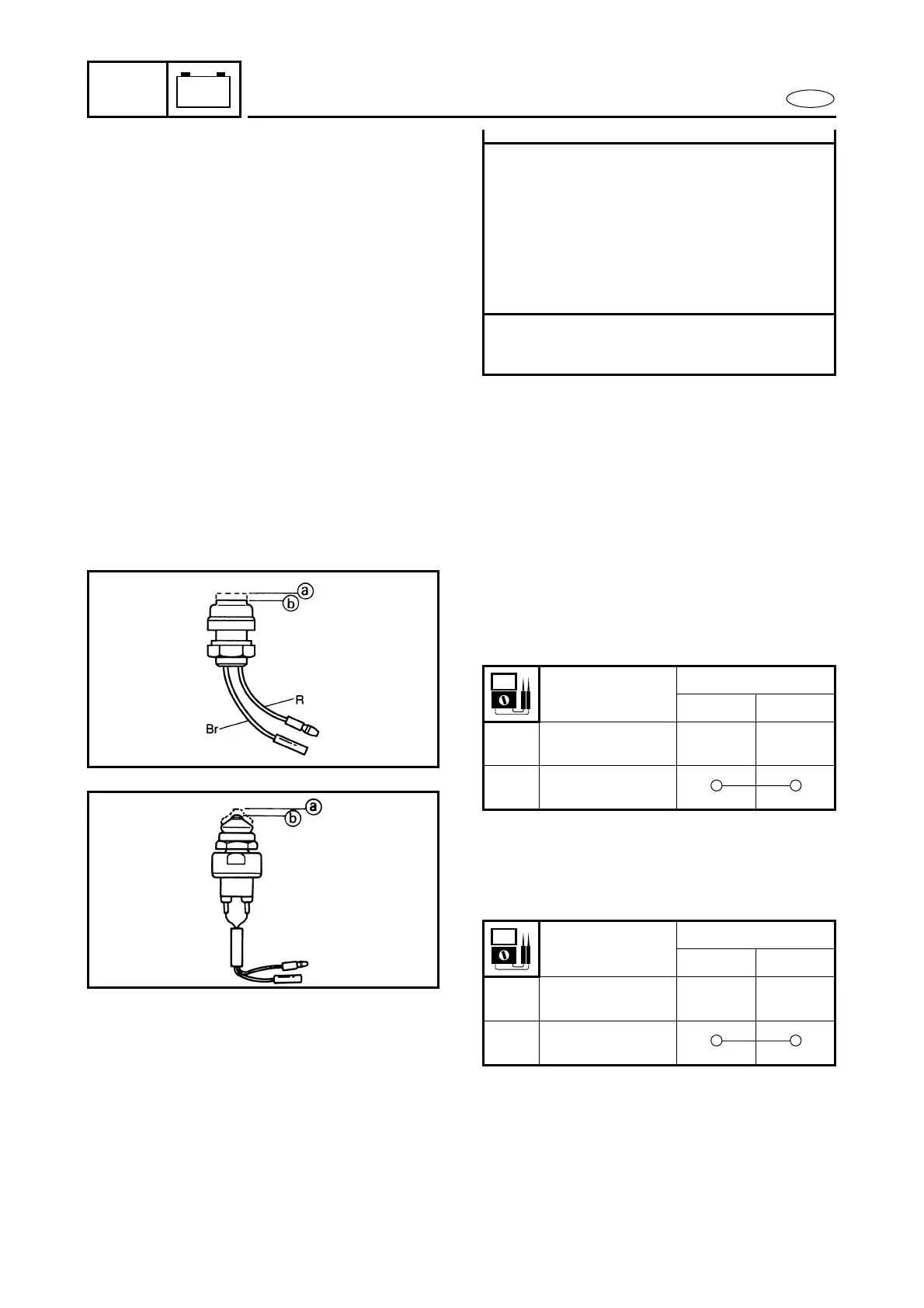

STARTER SWITCH (EH, EHT)
1. Check:
● Continuity
No continuity → Replace.
NEUTRAL SWITCH (EH, EHT)
1. Check:
● Continuity
No continuity → Replace.
Switch
position
Lead color
Red Brown
a Home position
b Depressed
Neutral
switch length
Lead color
Brown Brown
a Home position
b Depressed
