Yamaha F25A - Propeller Shaft Housing Assy. Disassembly; Propeller Shaft Housing Assy. Assembly

6-10
E
LOWR
PROPELLER SHAFT HOUSING ASSY.
SERVICE POINTS

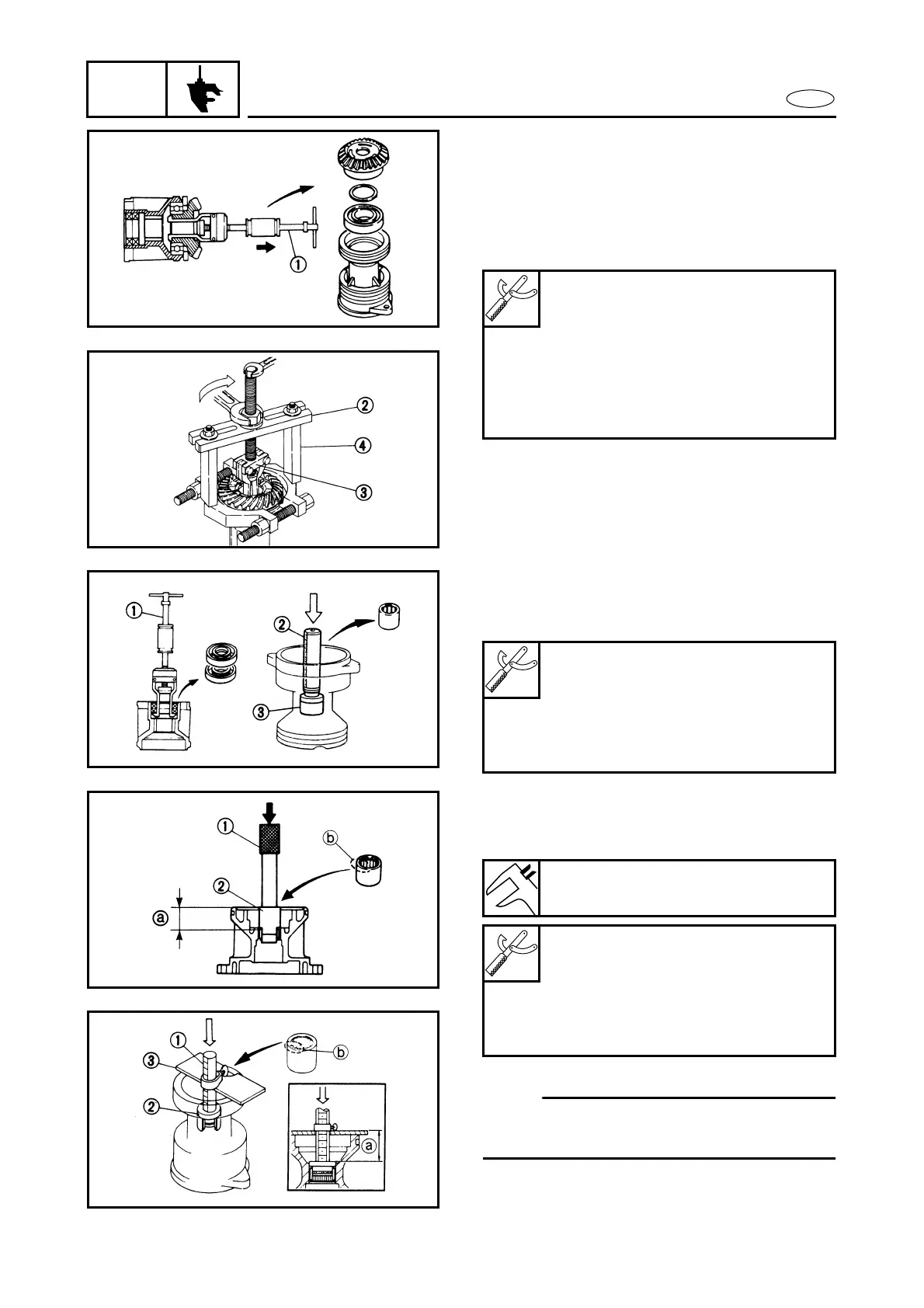

Propeller shaft housing assy. disassembly
1. Remove:
●
Reverse gear
●
Reverse gear shim(s)
●
Ball bearing
Å For USA and CANADA
ı Except for USA and CANADA
Slide hammer set 1 :
YB-06096
Stopper guide plate 2 :
90890-06501
Bearing puller 3 :
90890-06535
Stopper guide stand 4 :
90890-06538
Å
ı
2. Remove:
● Oil seals
● Needle bearing
Slide hammer set 1:
YB-06096
Driver rod 2:
YB-06229/90890-06604
Needle bearing attachment 3:
YB-06082/90890-06615
Propeller shaft housing assy. assembly
1. Install:
● Needle bearing
NOTE:
Install the needle bearing with its manufac-
turer’s marks b facing up.
Å For USA and CANADA
ı Except for USA and CANADA
Needle bearing position a:
31.0 ~ 31.5 mm (1.22 ~ 1.24 in)
Driver rod 1:
YB-06229/90890-06604
Needle bearing attachment 2:
YB-06082/90890-06615
Bearing depth plate 3:
90890-06603
Å
