8-21

–+

ELEC

STARTER MOTOR

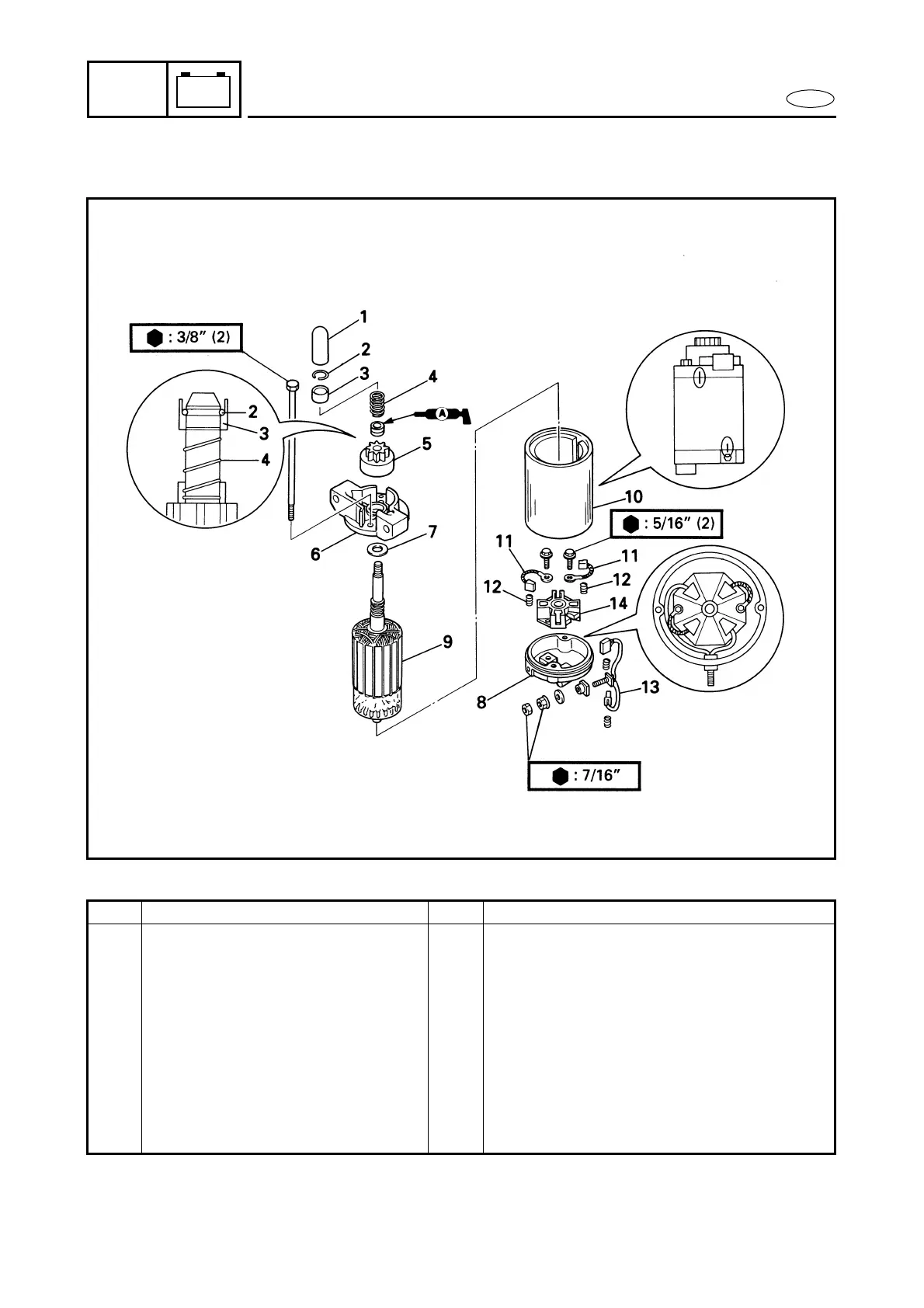

EXPLODED DIAGRAM

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

STARTER MOTOR

DISASSEMBLY

Follow the left “Step” for removal.

1 Cap 1

2 Clip 1

3 Pinion gear assy. stopper 1

4 Spring 1

5 Pinion gear assy. 1

6 Front bracket 1

7 Washer 1

8 Rear bracket 1
