5-20

POWR

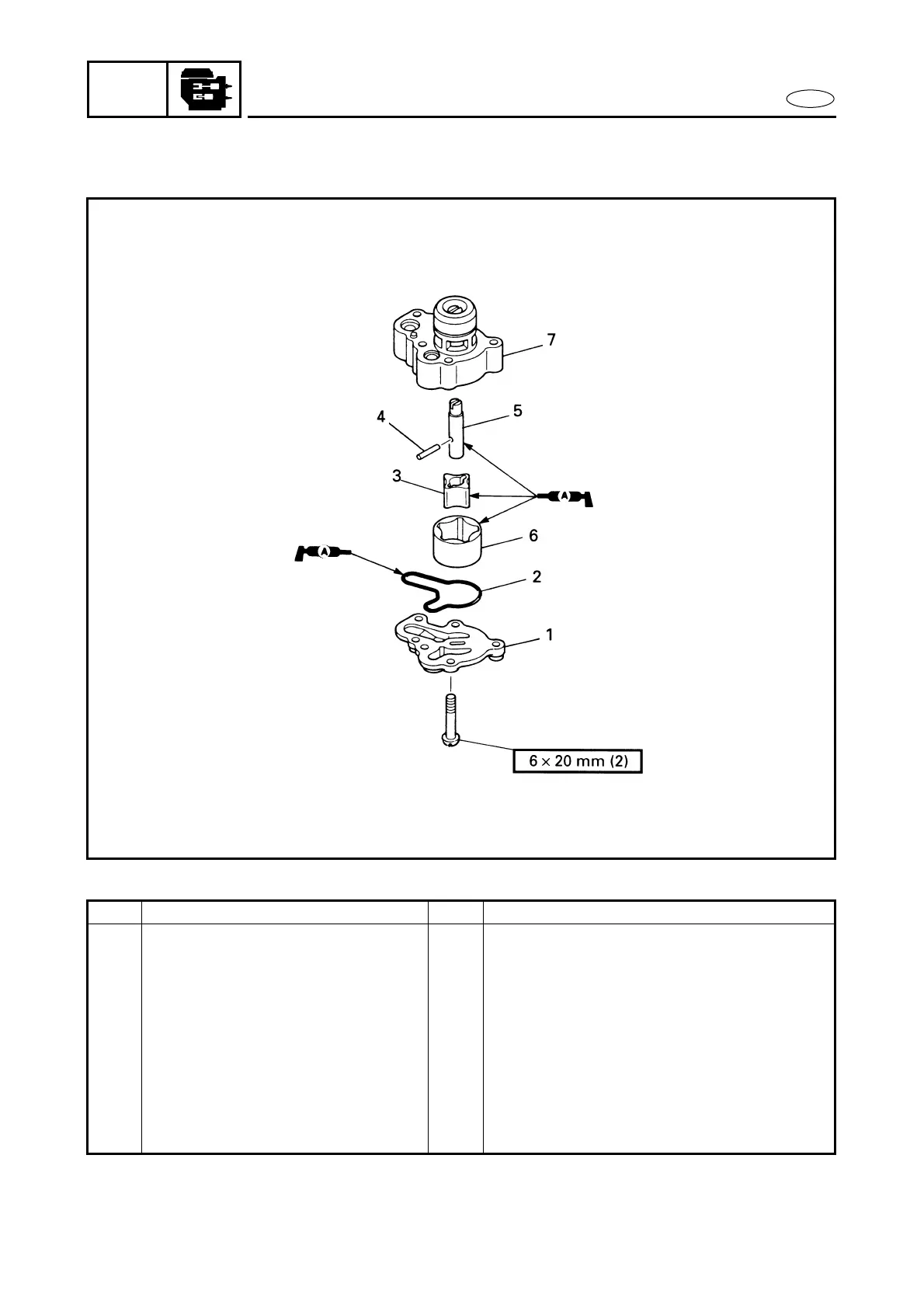

OIL PUMP

EXPLODED DIAGRAM

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

OIL PUMP DISASSEMBLY Follow the left “Step” for removal.

1 Oil pump cover 1

2 Rubber gasket 1

3 Inner rotor 1

4 Pin 1

5 Rotor shaft 1

6 Outer rotor 1

7 Oil pump housing 1

Reverse the disassembly steps for instal-

lation.
