Yamaha F25A - Clamp Bracket (MH, EH, E) Exploded Diagram

To Next Page

To Previous Page

7-13

BRKT

CLAMP BRACKET

CLAMP BRACKET (MH, EH, E)

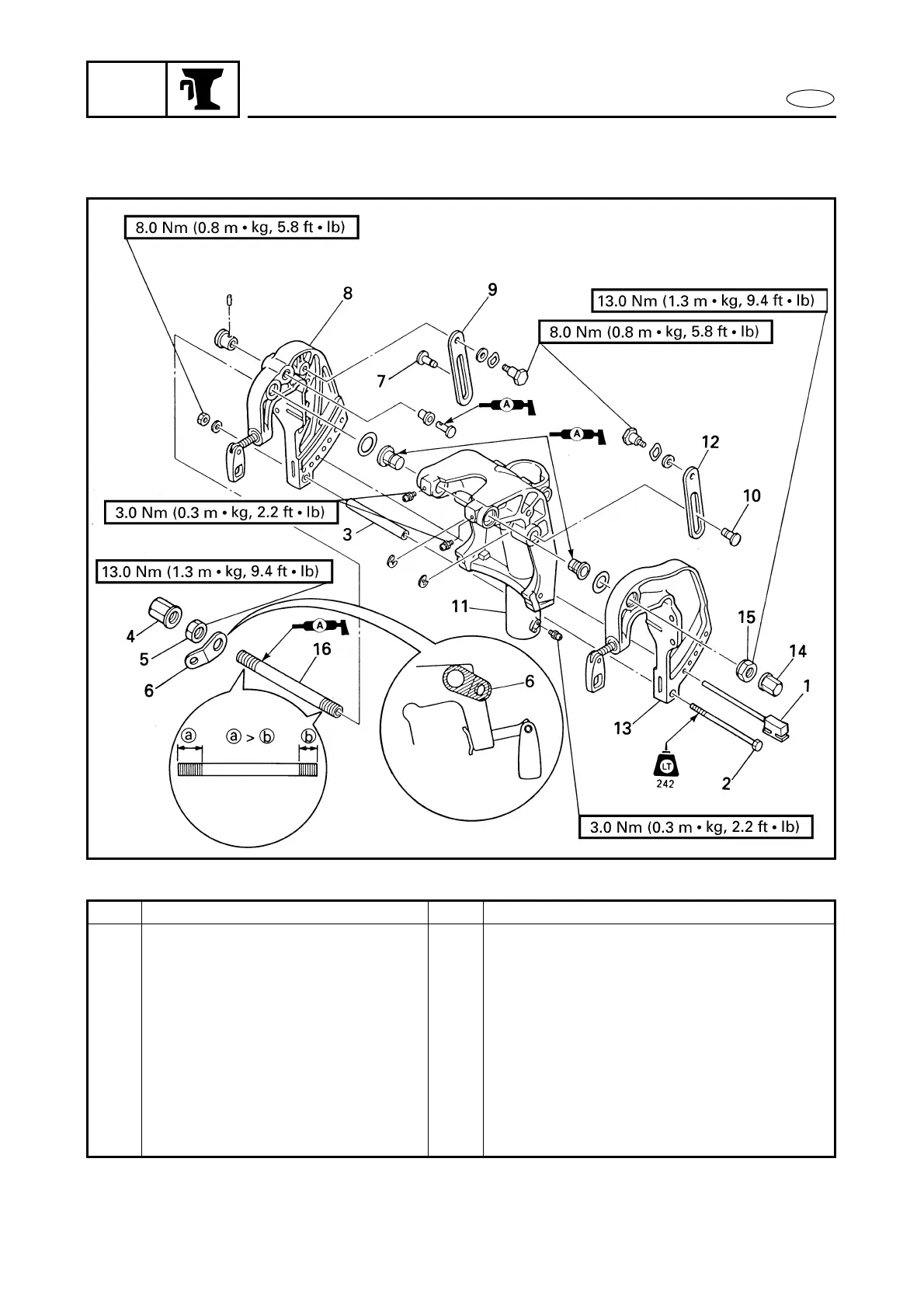

EXPLODED DIAGRAM

REMOVAL AND INSTALLATION CHART

Step Procedure/Part name Q’ty Service points

CLAMP BRACKET DISASSEMBLY

Follow the left “Step” for removal.

1 Tilt pin 1

2 Bolt 1

3 Collar 1

4 Cap nut 1

5 Nut 1

6 Clamp bracket plate 1

7 Pin 1

8 Right clamp bracket 1

9 Tilt stop lever 1
