6-9
E
LOWR
PROPELLER SHAFT HOUSING ASSY.
PROPELLER SHAFT HOUSING ASSY.

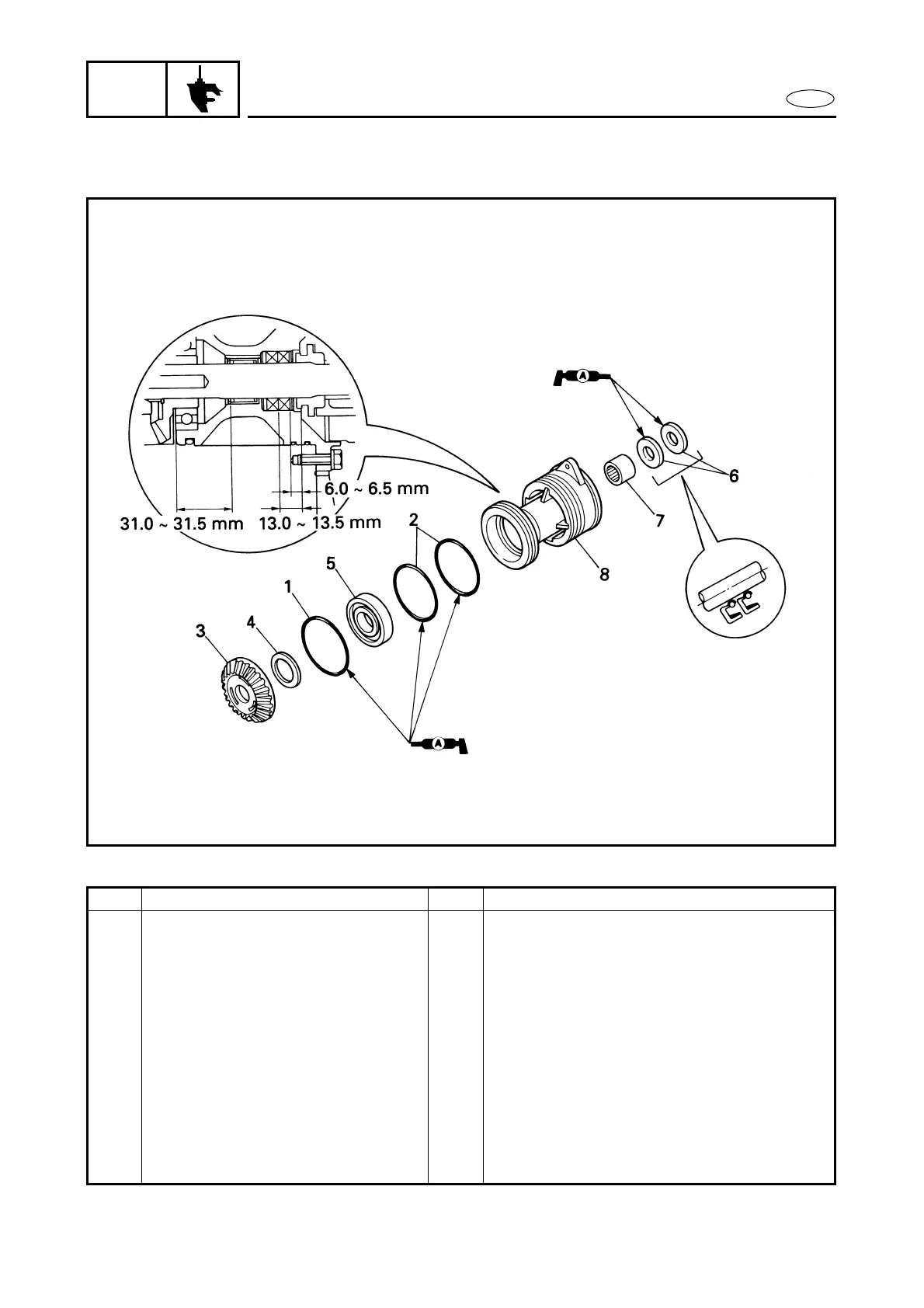

EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
PROPELLER SHAFT HOUSING
ASSY. DISASSEMBLY
Follow the left “Step” for removal.
1 O-ring 1 63.6
×
3.9 mm
2 O-ring 2 65.0
×
2.4 mm
3 Reverse gear 1
4 Reverse gear shim 1 set
5 Ball bearing 1
6 Oil seal 2
7 Needle bearing 1
8 Propeller shaft housing 1
Reverse the disassembly steps for instal-
lation.
To Next Page
