Yamaha F25A - Page 104

To Next Page

To Previous Page

4-7

FUEL

CARBURETOR

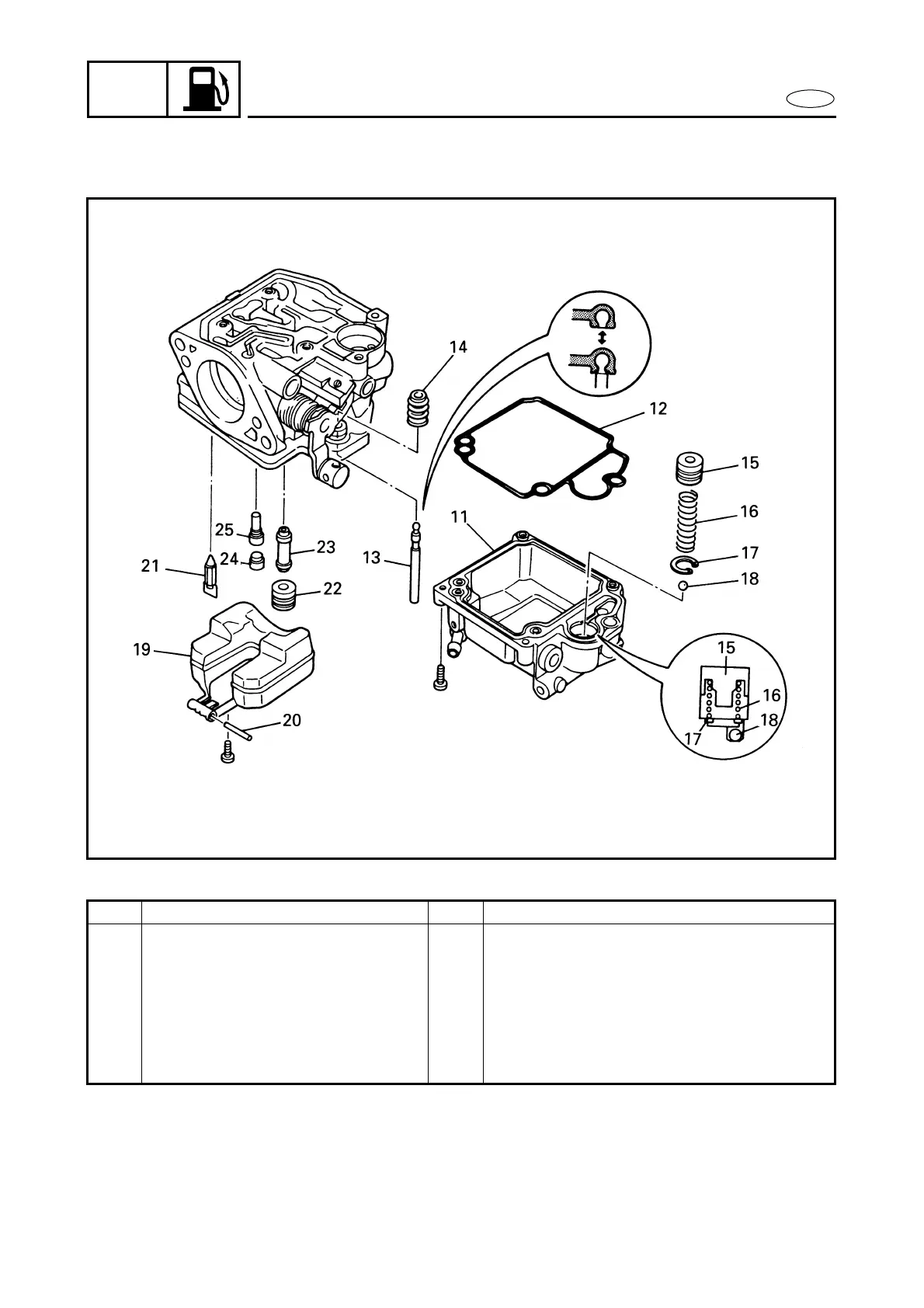

EXPLODED DIAGRAM

Step Procedure/Part name Q’ty Service points

21 Needle valve 1

22 Main jet 1

23 Main nozzle 1

24 Pilot jet plug 1

25 Pilot jet 1

Reverse the disassembly steps for instal-

lation.
