Yamaha F25A - Page 130

5-9
E
POWR

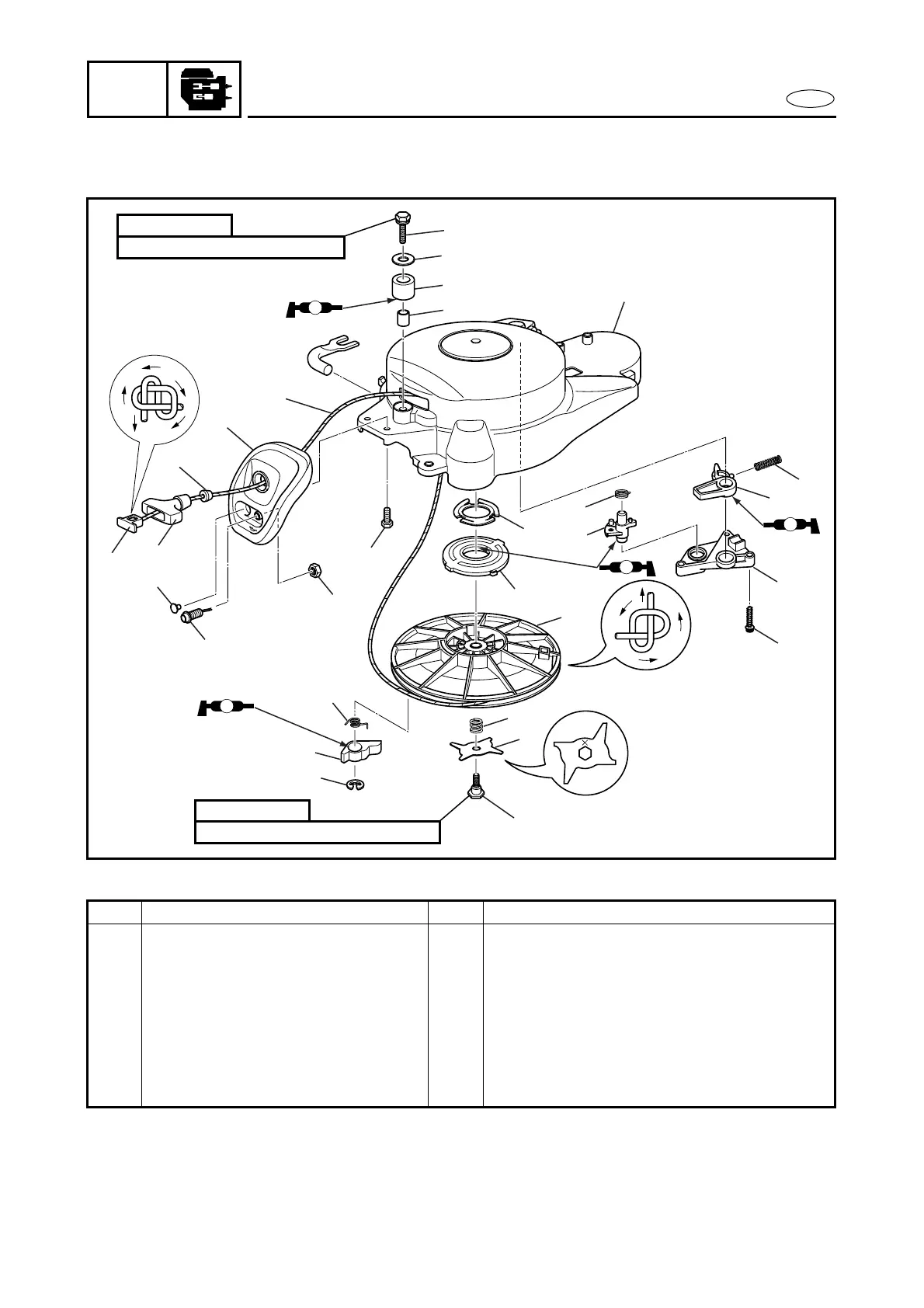

RECOIL STARTER
EXPLODED DIAGRAM
25
26
28
27
21
20
6
7
4
5 3
2
2
1
24
23
22
14
15
17
16
18
19
12
13
10
11
9
8
A
A
A
A
6 × 30 mm
8.0 Nm (0.8 m
• kg, 5.9 ft • Ib)
6 × 25 mm
15.0 Nm (1.5 m
• kg, 11.1 ft • Ib)
Step Procedure/Part name Q’ty Service points
23 Drive pawl 2
24 Spring 2
25 Bolt 1
26 Washer 1
27 Collar 1
28 Recoil starter roller 1
Reverse the disassembly steps for instal-
lation.
