Yamaha F25A - Page 142

5-15
E
POWR
ELECTRICAL UNIT

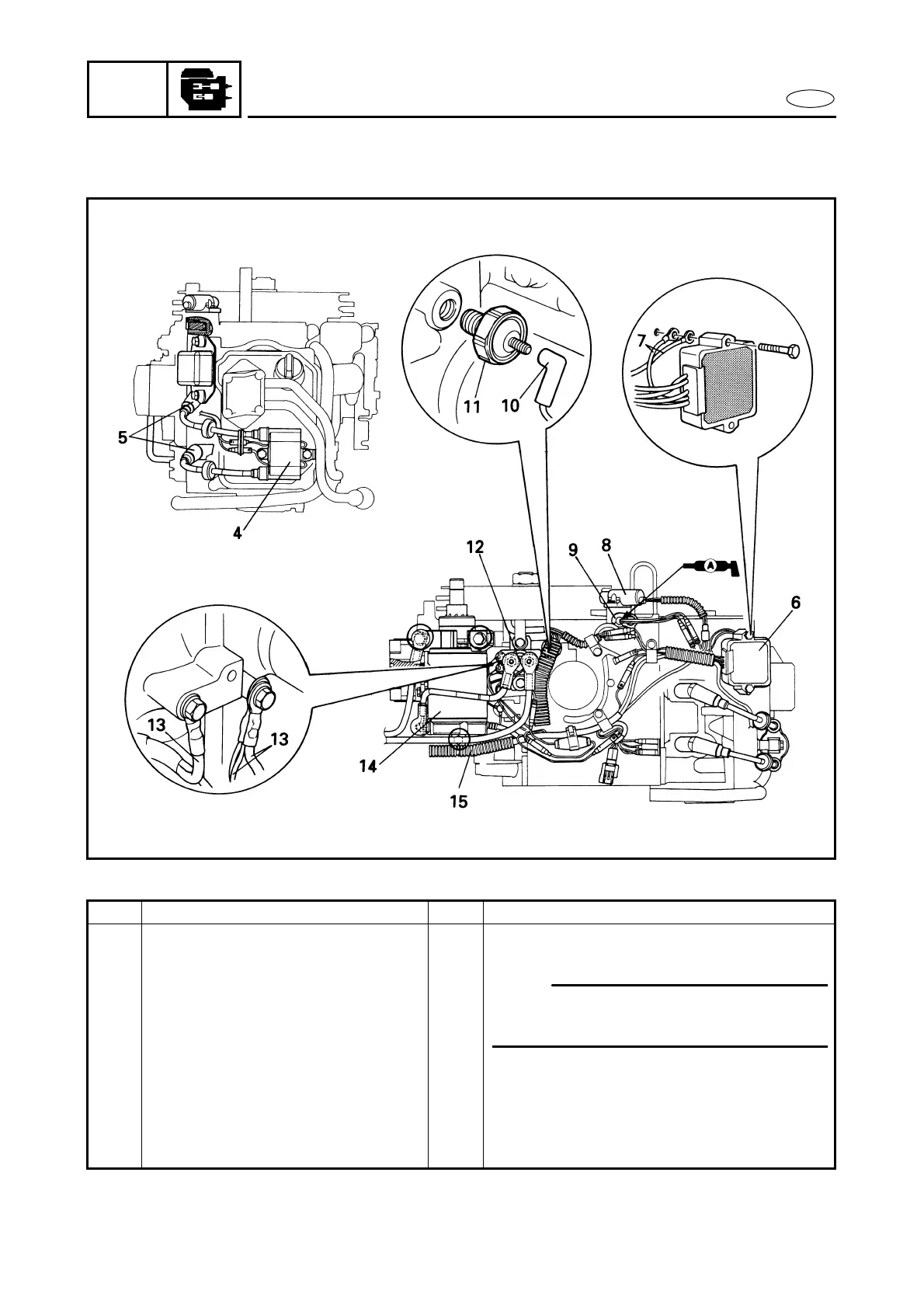

EXPLODED DIAGRAM
Step Procedure/Part name Q’ty Service points
4 Ignition coil 1
5 Spark plug lead 2
6 Rectifier/regulator
(EH, EHT, E, ET)
1
7 Ground lead 2
8 Pulser coil 1
9 Engine temperature sensor 1
10 Oil pressure switch connector 1
11 Oil pressure switch 1
NOTE:
The aluminum side of the rectifier/regula-
tor must face the engine.
