6-8
E
LOWR

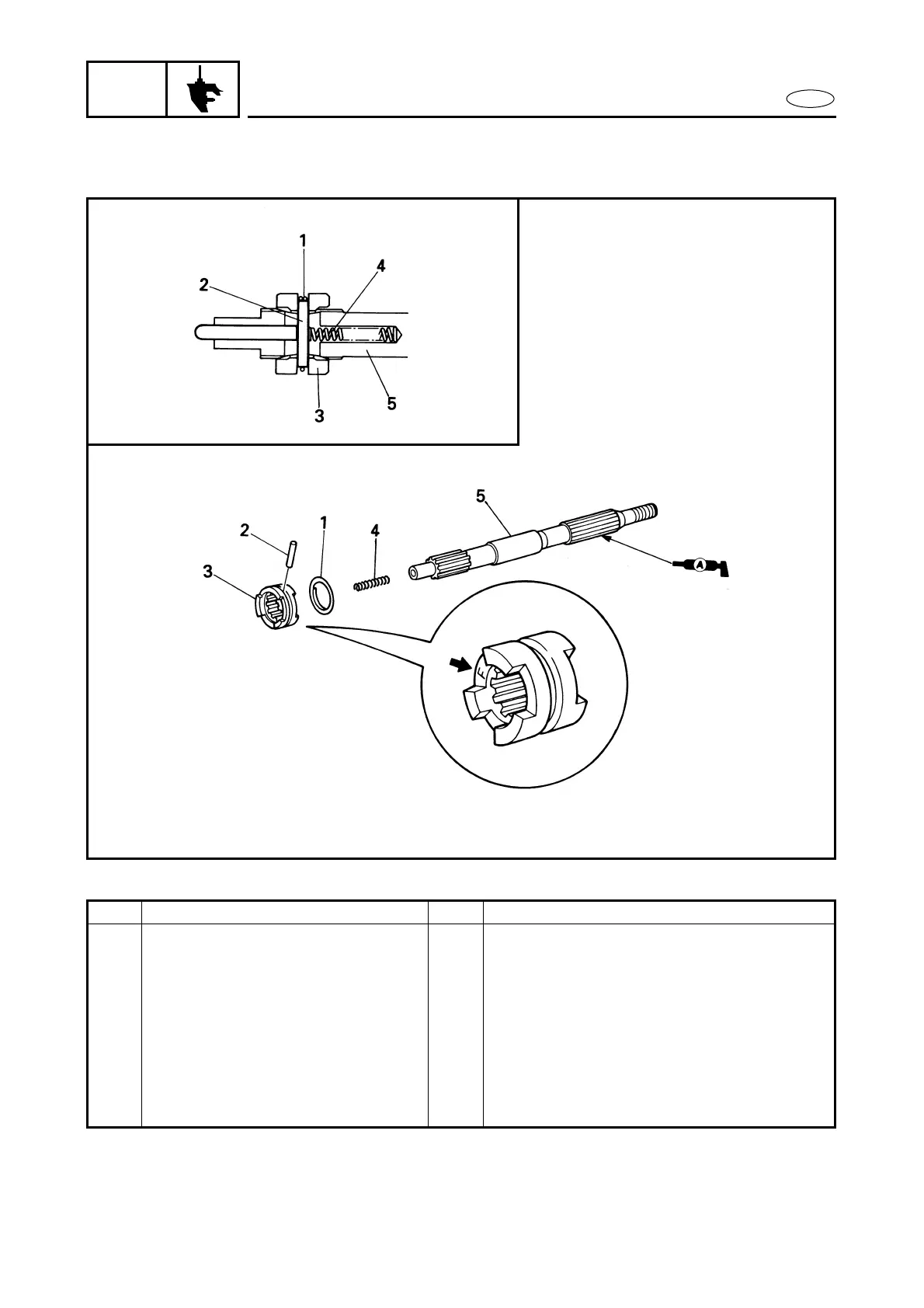

PROPELLER SHAFT ASSY.
EXPLODED DIAGRAM
REMOVAL AND INSTALLATION CHART
Step Procedure/Part name Q’ty Service points
PROPELLER SHAFT ASSY.
DISASSEMBLY
Follow the left “Step” for removal.
1 Cross pin ring 1
2 Cross pin 1
3 Dog clutch 1
4 Spring 1
5 Propeller shaft 1
Reverse the disassembly steps for instal-
lation.
