7-18

BRKT

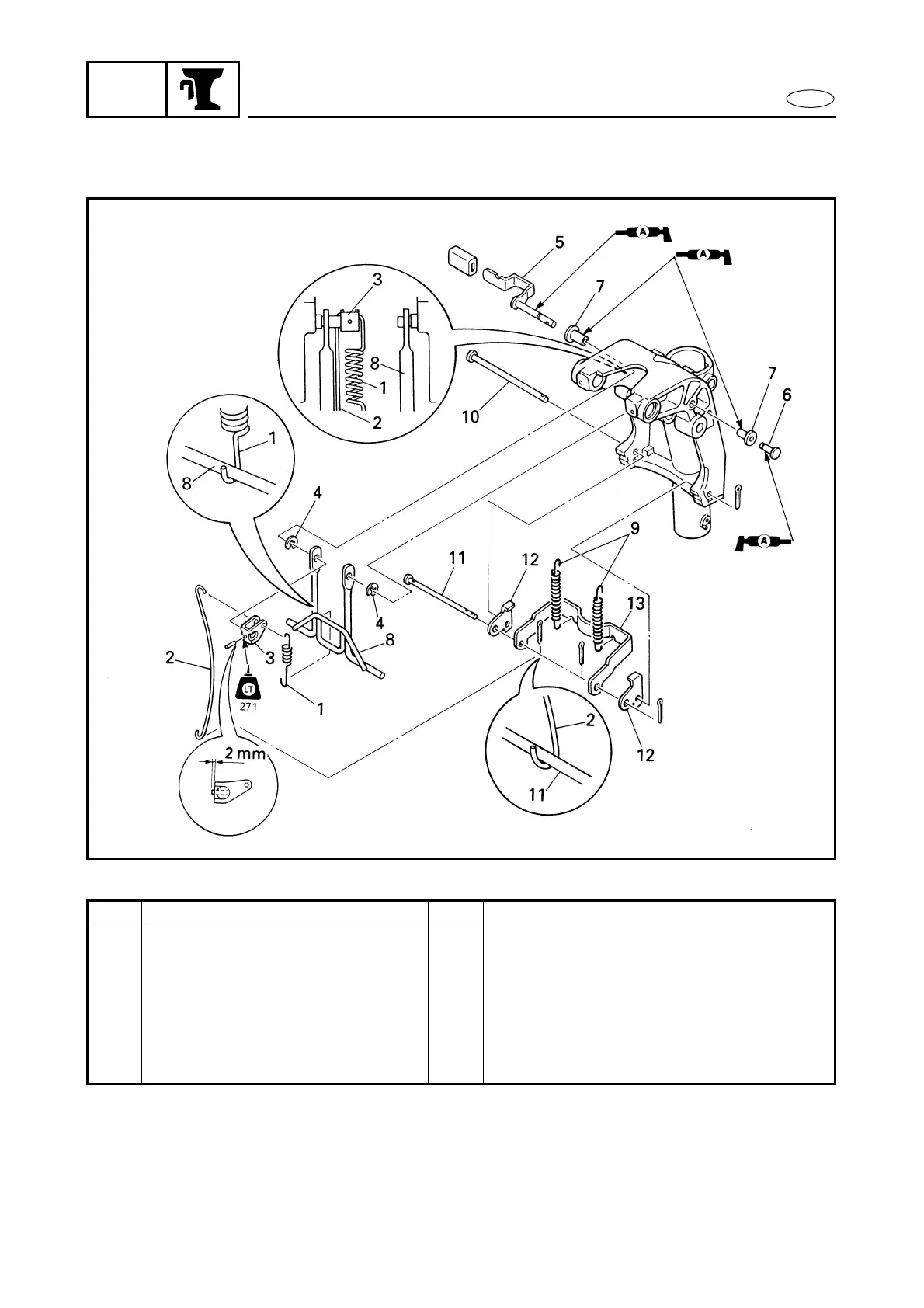

SWIVEL BRACKET

EXPLODED DIAGRAM

Step Procedure/Part name Q’ty Service points

9 Spring 2

10 Reverse lock shaft 1

11 Reverse lock arm shaft 1

12 Reverse lock jaw 2

13 Reverse lock arm 1

Reverse the disassembly steps for instal-

lation.
