7-28

BRKT

PUMP HOUSING

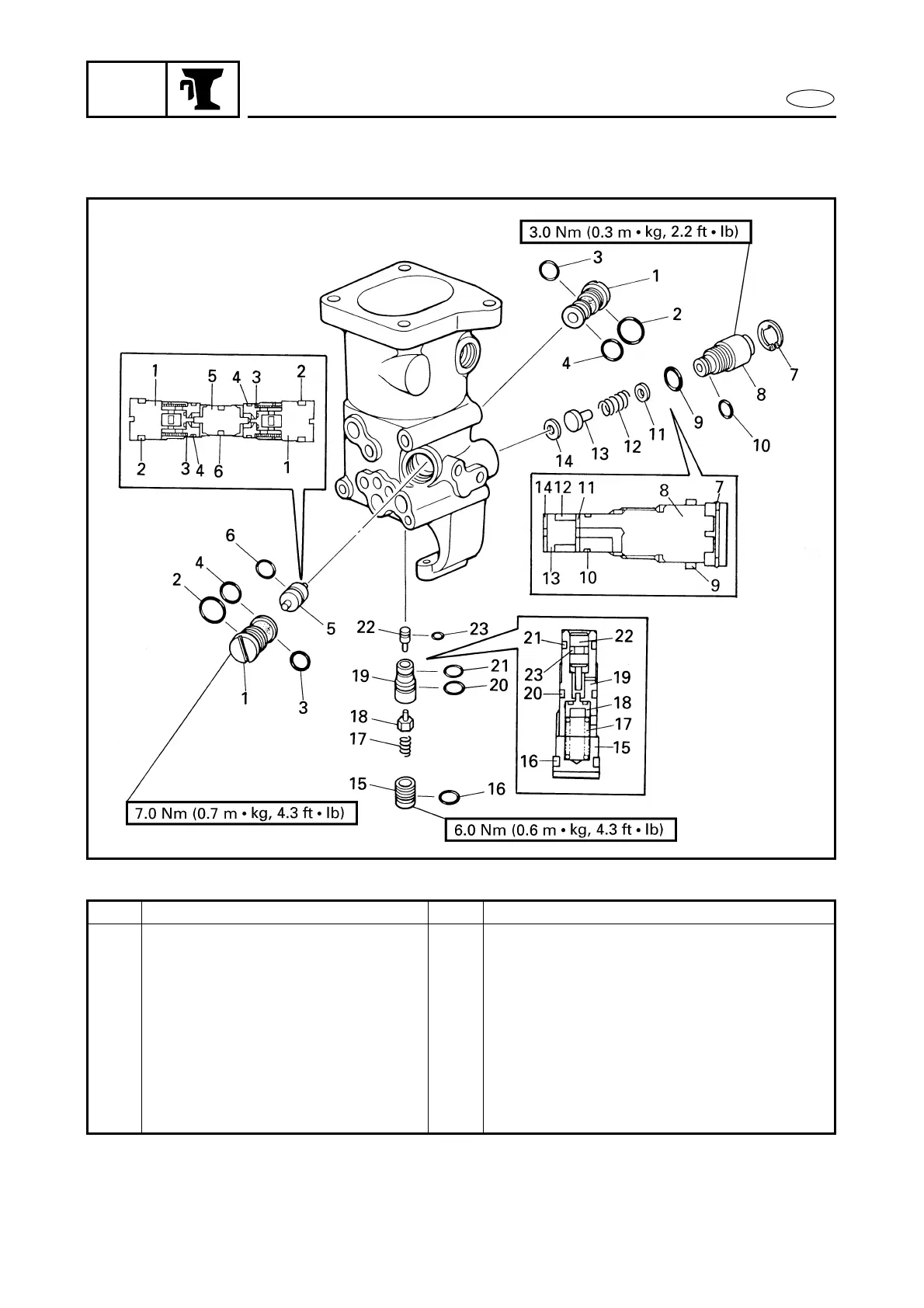

EXPLODED DIAGRAM

Step Procedure/Part name Q’ty Service points

10 O-ring 1 9.5 × 1.5 mm

11 Valve seat 1

12 Spring 1

13 Plunger 1

14 Valve seat 1

15 Up-relief valve 1

16 O-ring 1 10.8 × 2.4 mm

17 Spring 1

18 Valve seat 1
