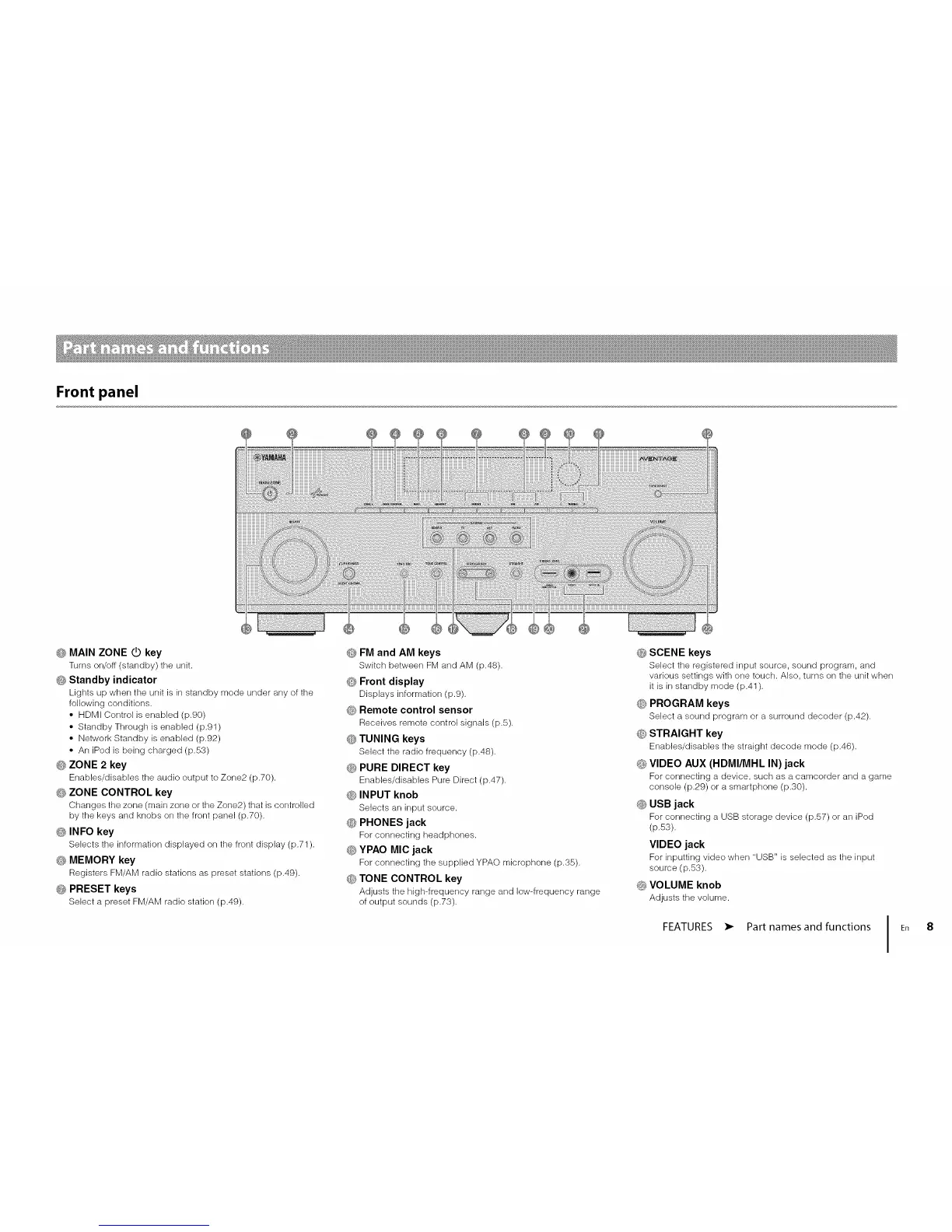

Front panel
_; MAIN ZONE O key
Turns on/off (standby) the unit.
;_ Standby indicator
Lights up when tile unit is in standby mode under any of tile
following conditions.
• HDMI Control is enabled (p.90)
• Standby Through is enabled (p.91)
• Network Standby is enabled (p.92)
• An iPod is being charged (p.53)
G ZONE 2 key
Enables/disables the audio output to Zone2 (p.70).
_ ZONE CONTROL key
Changes the zone (main zone or the Zone2) that is controlled
by the keys and knobs on the front panel (p.70).
0 INFO key
Selects tile information displayed on tile front display (p.71).
_ MEMORY key
Registers FM/AM radio stations as preset stations (p.49).
#_ PRESET keys
Select a preset FM/AM radio station (p.49).
Q FM and AM keys
Switch between FM and AM (p.48).
0 Front display
Displays information (p.9).
_ Remote control sensor
Receives remote control signals (p.5).
O TUNING keys
Select tile radio frequency (p.48).
0 PURE DIRECT key
Enables/disables Pure Direct (p.47).
@ INPUT knob
Selects an input source.
(_ PHONES jack
For connecting headphones.
_1YPAO MIC jack
For connecting the supplied YPAO microphone (p.35).
_#?TONE CONTROL key
Adjusts tile high-frequency range and low-frequency range
of output sounds (p.73).
O SCENE keys
Select tile registered input source, sound program, and
various settings with one touch. Also, turns on the unit when
it is in standby mode (p.41).
Q PROGRAM keys
Select a sound program or a surround decoder (p.42).
G STRAIGHT key
Enables/disables the straight decode mode (p.46).
_ VIDEO AUX (HDMI/MHL IN) jack
For connecting a device, such as a camcorder and a game
console (p.29) or a smartphone (p.30).
_ USB jack
For connecting a USB storage device (p.57) or an iPod
(p,SS).
VIDEO jack
For inputting video when "USB" is selected as the input
source (p.53).
0 VOLUME knob
Adjusts the volume.
FEATURES • Part names and functions I
En 8
