2 - 19
SPEC
1 Cable guide
2 Brake cable
3 Throttle cable
4 Fuel tank breather hose
5 Engine stop switch lead
6 Air vent hose
7 Air intake duct
8 Ignition coil
9 Cable guide
0 Wire harness
A Damper
B CDI unit lead
C CDI unit
D Rectifier/regulator lead
E Rectifier/regulator
F Crankcase breather hose
G Carburetor breather hose
H Spark plug lead
I Fuel hose
J Starter cable
K CDI magneto lead
L Thermo switch
A
1
2
3
4
5
6
7
8
9
0
A
C
E
B
F
G
H
I
6
6
JL
5
H
B
8
K
7
Å
Ç
Ç
Ï
Ì
B - B C - C
D - D F - F
E
ı
Î
D
D
B
D
AA
B
B
B
B
C
C
C
C
E
BD
B
D
FF
FF

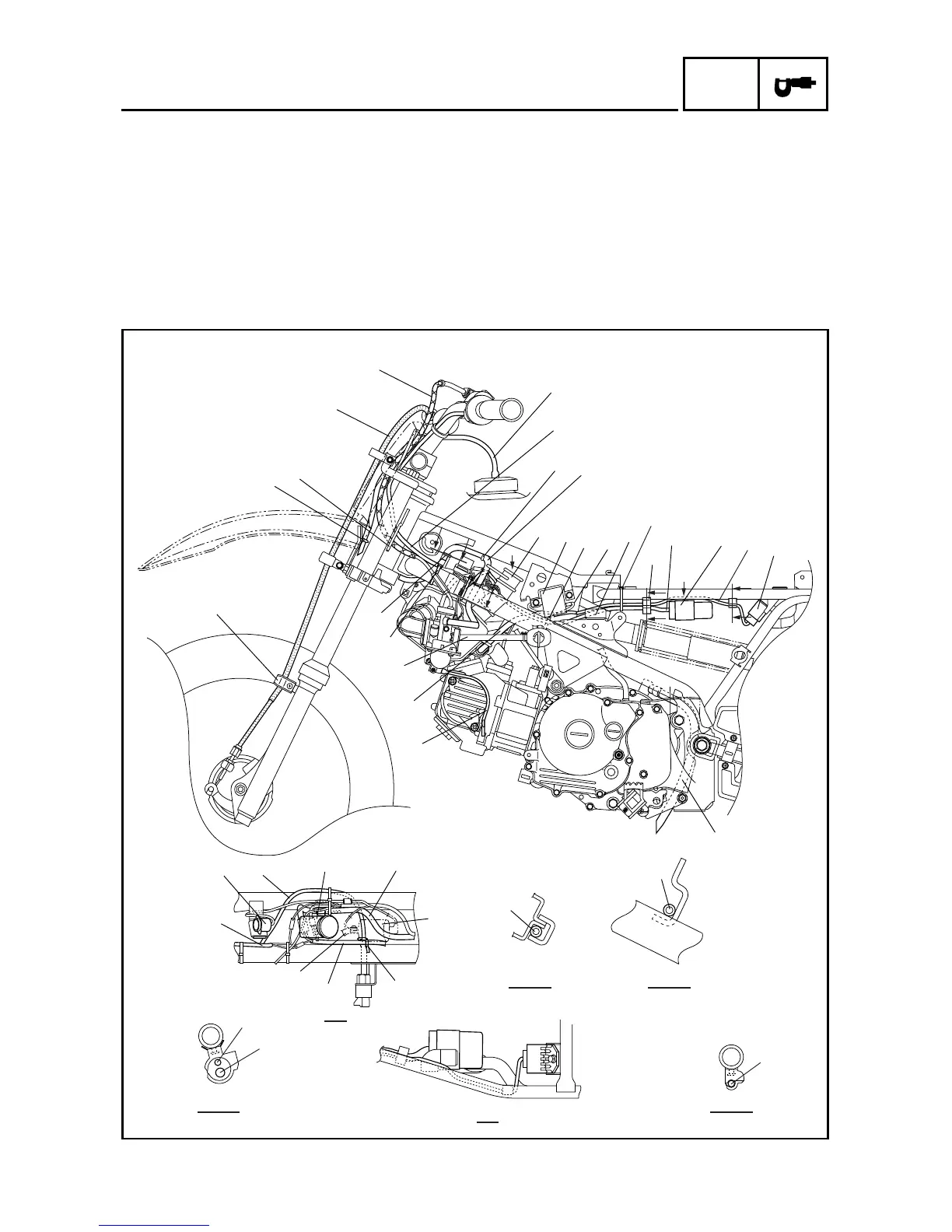

CABLE ROUTING DIAGRAM
