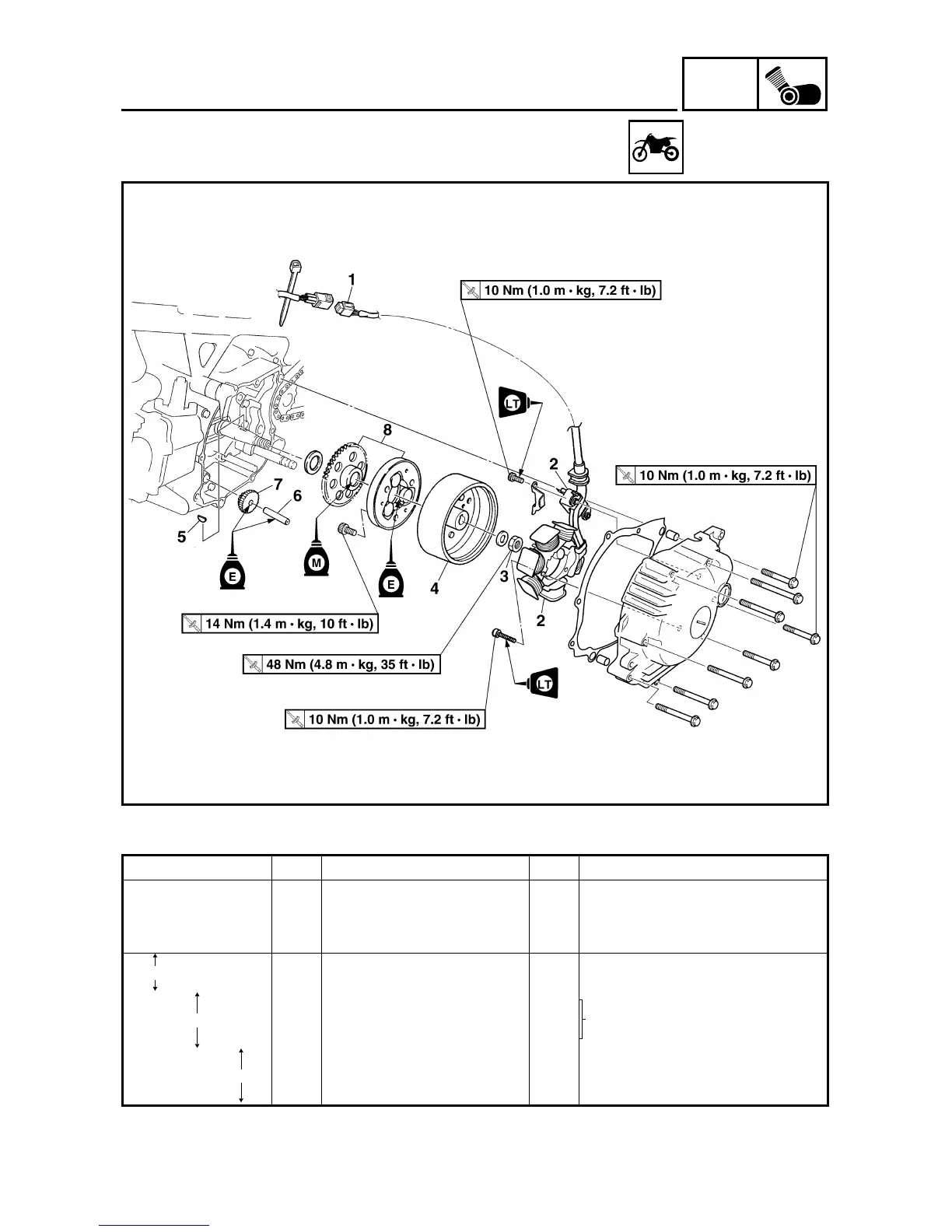

CDI MAGNETO AND STARTER CLUTCH (TT-R90E)
CDI MAGNETO AND STARTER CLUTCH (TT-R90E)
Extent of removal: 1 Pickup coil/stator removal 2 Rotor removal
3 Starter clutch/wheel gear removal
Extent of removal Order Part name Q’ty Remarks
CDI MAGNETO AND STATOR
REMOVAL
Preparation for removal Fuel tank
Crankcase cover (left) Refer to “CLUTCH” section.
1 CDI magneto coupler 1
2 Pickup coil/stator assembly 1
3 Rotor nut 1
Use special tool.
Refer to “REMOVAL POINTS”.
4 Rotor 1
5 Woodruff key 1
6 Shaft 1
7 Idler gear 1
8 Starter clutch/wheel gear 1/1
1
2
3
