5 - 9
CHAS
HANDLEBAR
EC5B0000
HANDLEBAR
TT-R90
Extent of removal: 1 Handlebar removal
Extent of removal Order Part name Q’ty Remarks

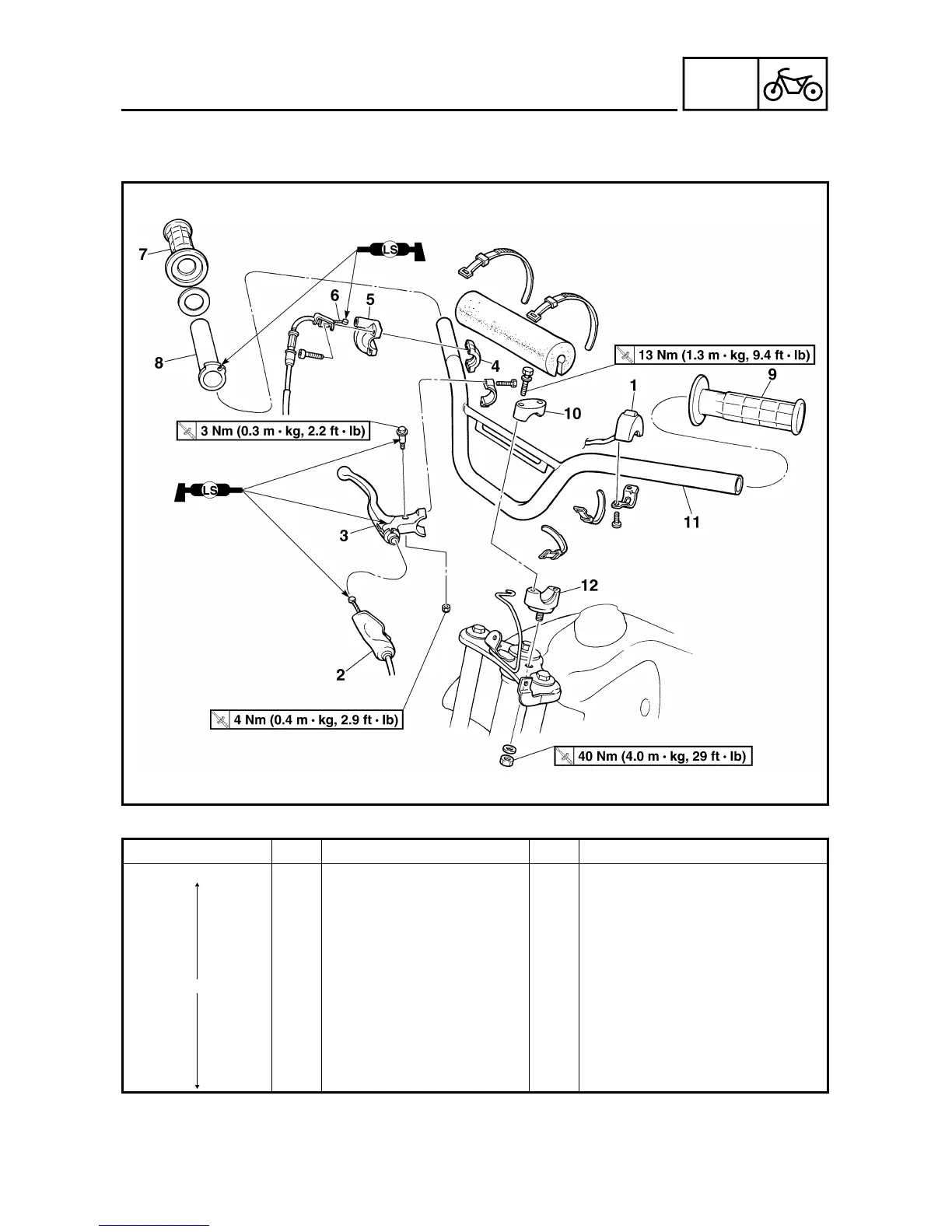

HANDLEBAR REMOVAL
1 “ENGINE STOP” switch 1
2 Brake lever cable 1 Disconnect at the lever side.
3 Brake lever 1
4 Grip cap (lower) 1
5 Grip cap (upper) 1
6 Throttle cable 1 Disconnect at the throttle side.
7 Grip (right) 1
8 Tube guide 1
9 Grip (left) 1
10 Handlebar holder (upper) 2
11 Handlebar 1
12 Handlebar holder (lower) 2
