4 - 1
ENG
ENGINE
CARBURETOR
Extent of removal:
1
Carburetor removal
Extent of removal
Order
Part name
Q’ty
Remarks

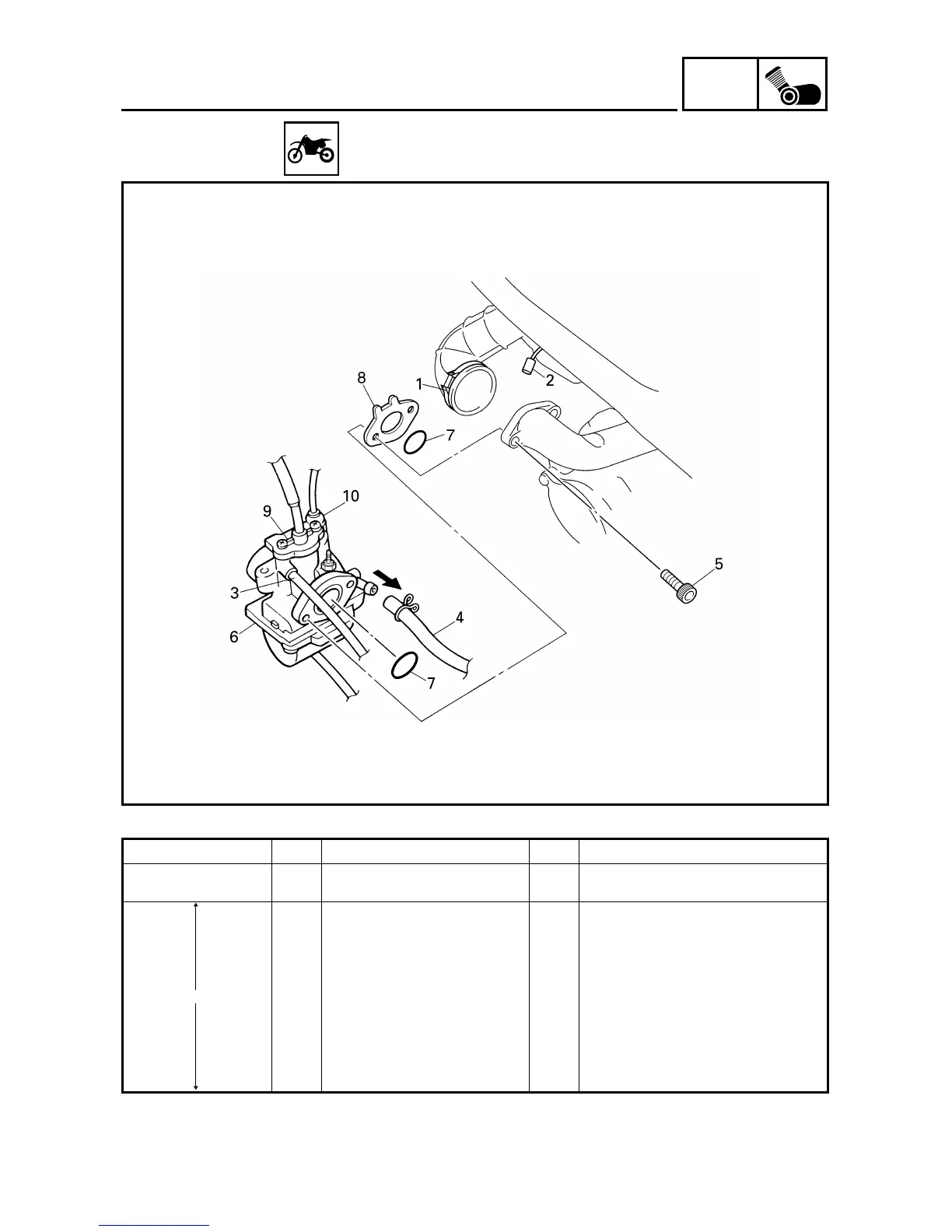

CARBURETOR REMOVAL
Preparation for removal
Fuel tank
1
Clamp (air filter joint)
1
Loosen the screw (air filter joint).
2
Carburetor heater lead
1
3
Air vent hose
1
4
Fuel hose
1
5
Bolt
2
6
Carburetor assembly
1
7
O-ring
2
8
Spacer
1
9
Carburetor top
1
10
Starter plunger assembly
1
1
CARBURETOR
