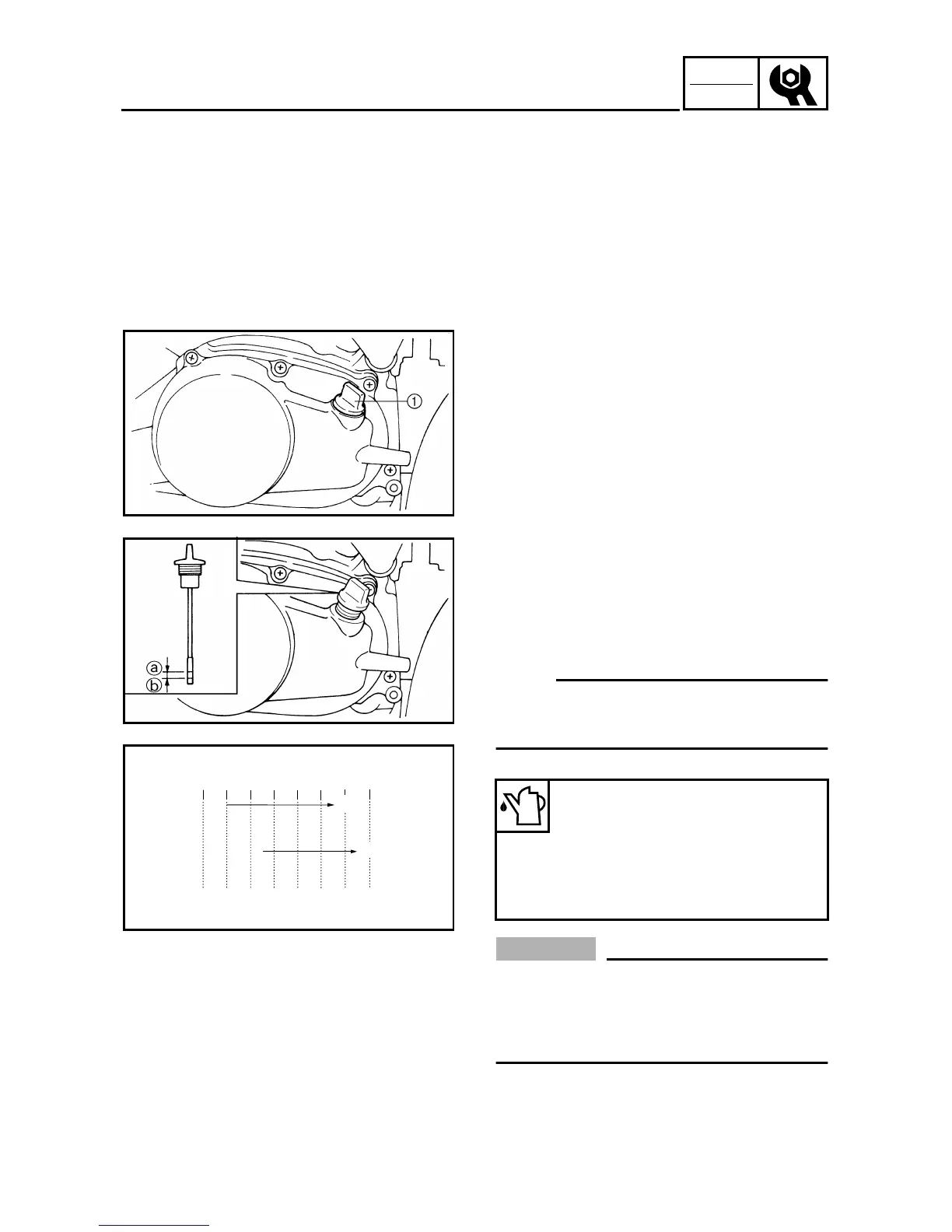

ENGINE OIL LEVEL INSPECTION
1. Start the engine, warm it up for several
minutes and wait for five minutes.
2. Place the machine on a level place and
hold it up on upright position by placing
the suitable stand under the engine.
3. Remove:
●
Dipstick
1
4. Check:
●
Oil level
Oil level should be between maximum
a
and minimum
b
marks.
Oil level is low
→
Add oil to proper
level.
OTE:
When inspecting the oil level, do not screw the
dipstick into the oil tank. Insert the gauge
lightly.
(For USA and CDN)
CAUTION:
●
Do not add any chemical additives.
Engine oil also lubricates the clutch and
additives could cause clutch slippage.
●
Do not allow foreign material to enter the
crankcase.
Recommended oil:
At –10 ˚C (10 ˚F) or higher
Å
:
Yamalube 4 (10W-30) or SAE
10W-30 type SE/SF motor oil
At 5 ˚C (40 ˚F) or higher
ı
:
Yamalube 4 (20W-40) or SAE
20W-40 type SE/SF motor oil
0
10 30 50 70
90
110
130
-20
-10
0
10
20 30 40
50
Å
ı
˚C
˚F
