5 - 12
CHAS
SWINGARM
EC570000
SWINGARM

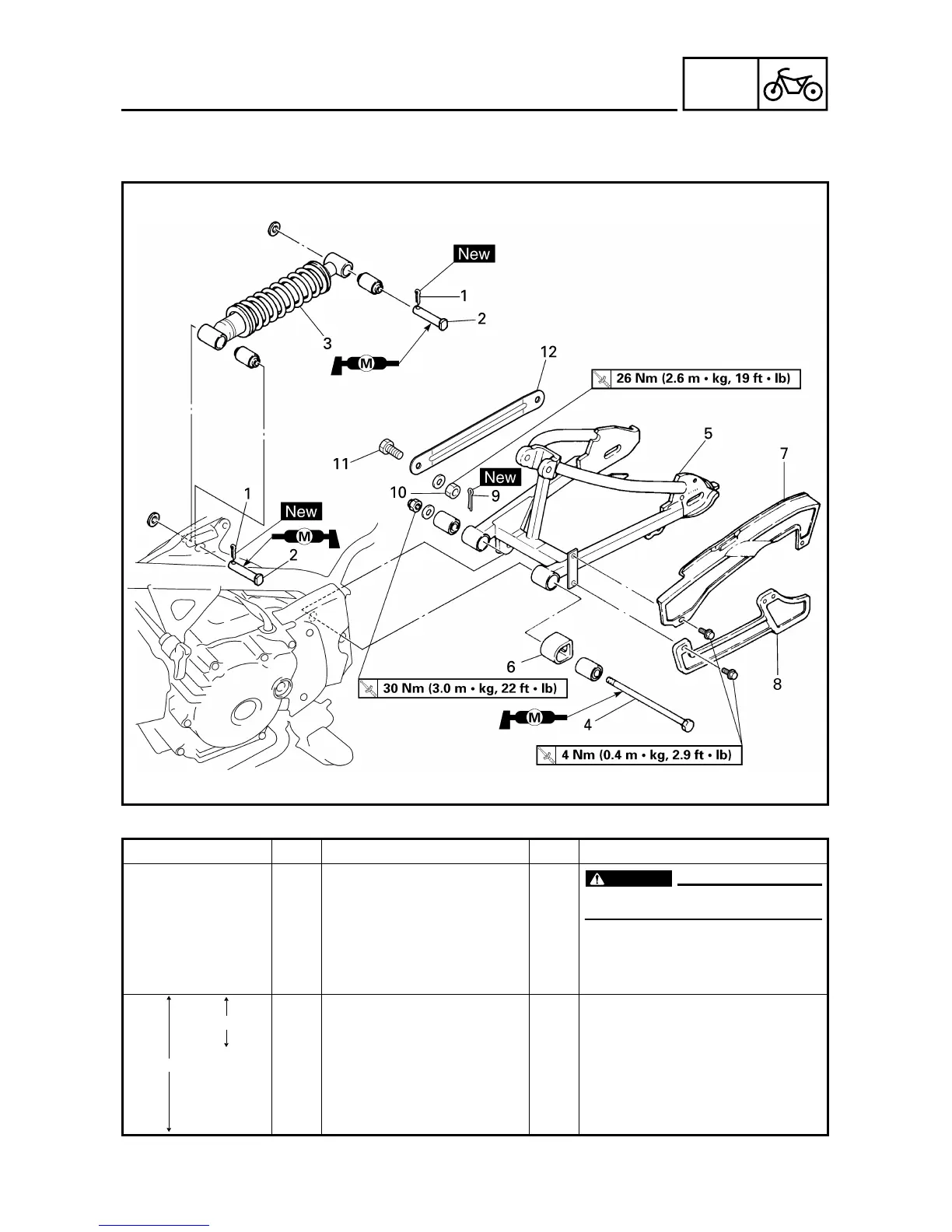

Extent of removal: 1 Swingarm removal 2 Rear shock absorber removal
Extent of removal Order Part name Q’ty Remarks
SWINGARM REMOVAL
WARNING
Support the machine securely so there is no
danger of it falling over.
Preparation for removal Hold the machine by placing the
suitable stand under the engine.
Rear wheel Refer to “FRONT WHEEL AND REAR
WHEEL” section.
Rear fender
Drive chain
1 Cotter pin 2
2 Pin 2
3 Rear shock absorber 1
4 Pivot shaft 1 Hold the swingarm.
5 Swing arm 1
6 Drive chain guide 1
7 Drive chain guard 1
8 Drive chain support 1
1
2
To Next Page
