Yamaha TT-R90(T) User Manual

4 - 33
ENG

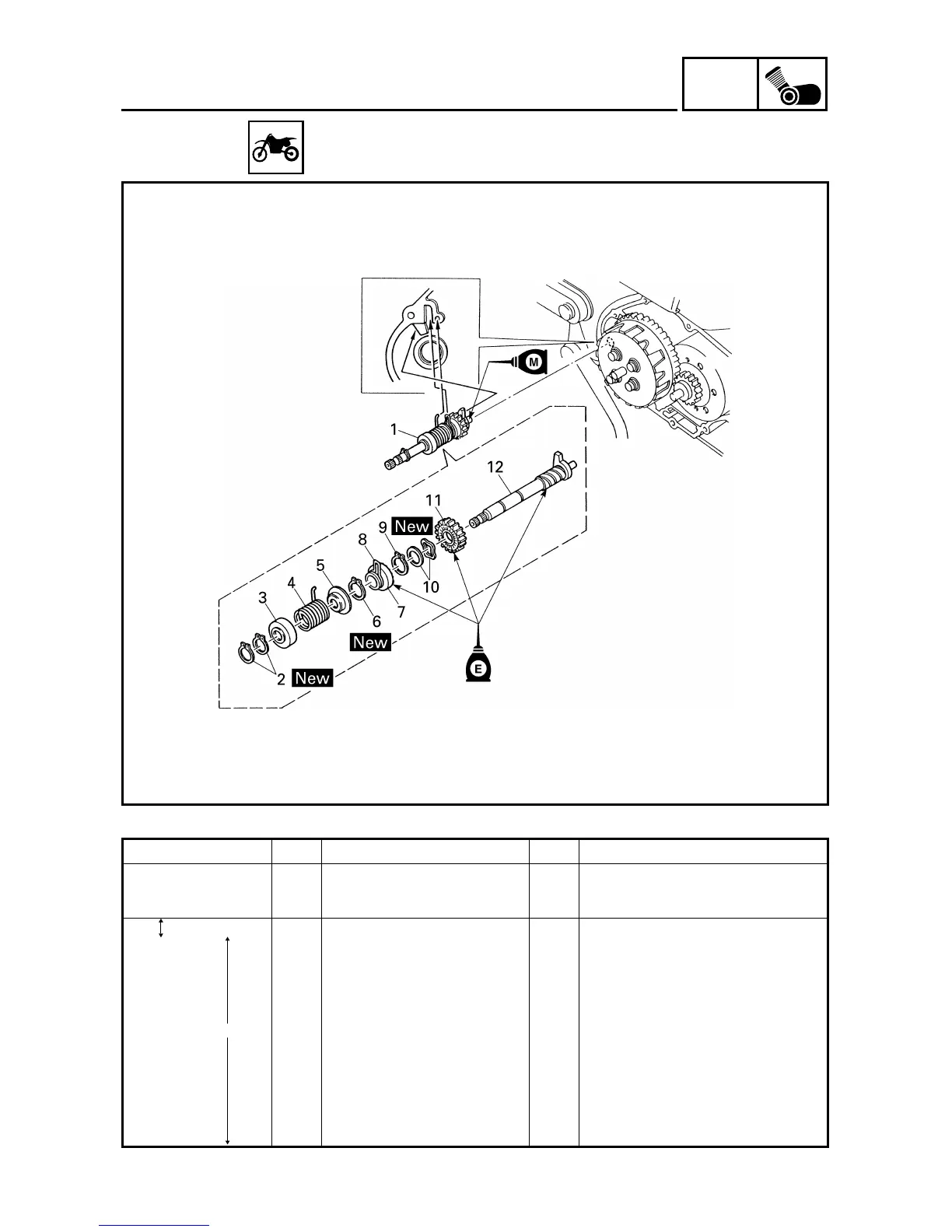

KICK AXLE
KICK AXLE
Extent of removal: 1 Kick axle removal 2 Kick axle disassembly
Extent of removal Order Part name Q’ty Remarks
KICK AXLE REMOVAL AND
DISASSEMBLY
Preparation for removal Crankcase cover (right) Refer to “CLUTCH” section.
1 Kick axle assembly 1
2 Circlip 2
3 Spring cover 1
4 Torsion spring 1
5 Spring guide 1
6 Circlip 1
7 Ratchet wheel 1
8 Clip 1
9 Circlip 1
10 Washer/wave washer 1/1
11 Kick gear 1
12
Kick axle
1
1
2
