VALVES AND VALVE SPRINGS
VALVES AND VALVE SPRINGS

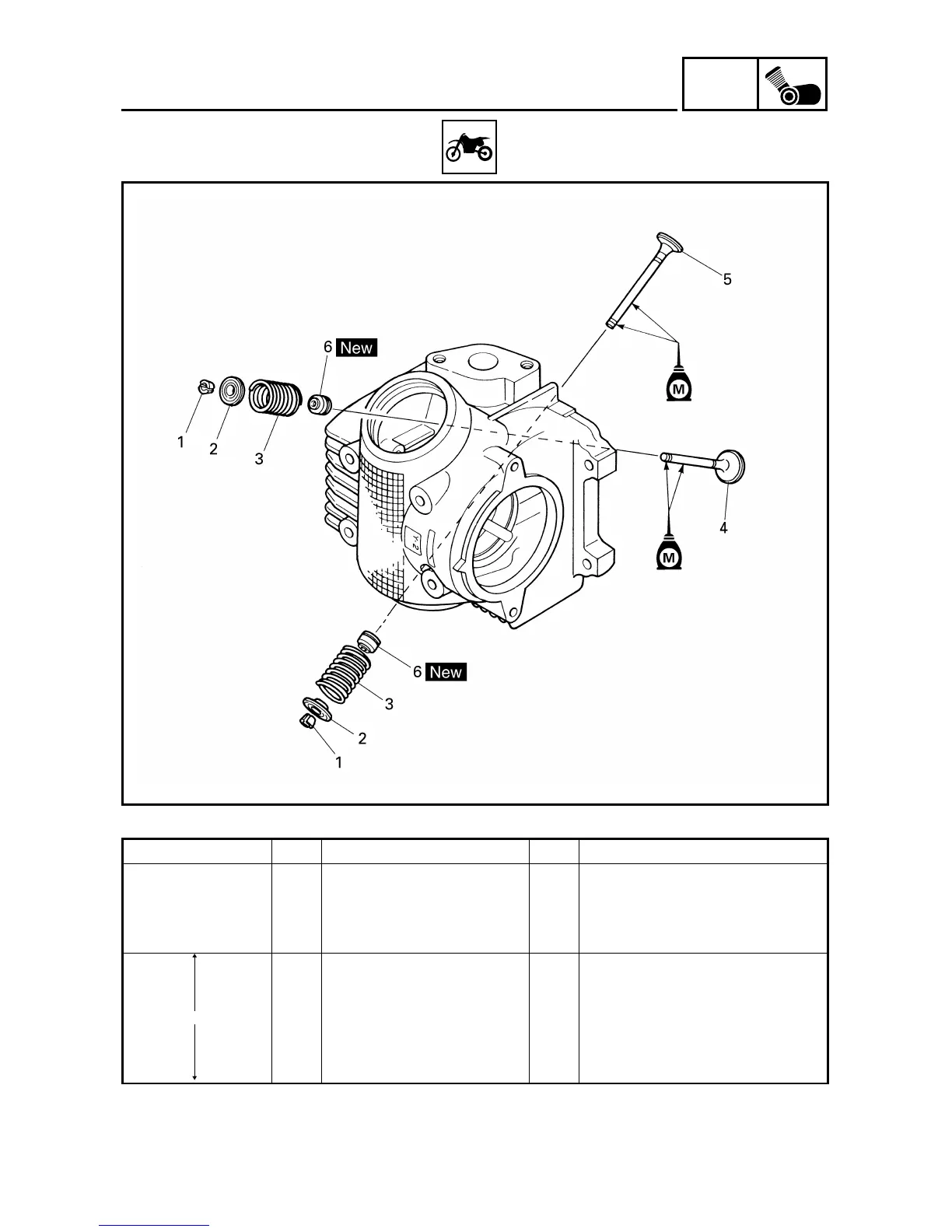

Extent of removal: 1 Valves removal
Extent of removal Order Part name Q’ty Remarks
VALVES AND VALVE SPRINGS
REMOVAL
Preparation for removal Cylinder head Refer to “CYLINDER HEAD” section.
Rocker arm and camshaft Refer to “CAMSHAFT AND ROCKER
ARMS” section.
1 Valve cotter 4 Use special tool.
Refer to “REMOVAL POINTS”.
2 Spring retainer 2
3 Valve spring 2
4 Intake valve 1
5 Exhaust valve 1
6 Valve stem seal 2
