1 - 5
GEN
INFO
IMPORTANT INFORMATION/
CHECKING OF CONNECTION
EC136000

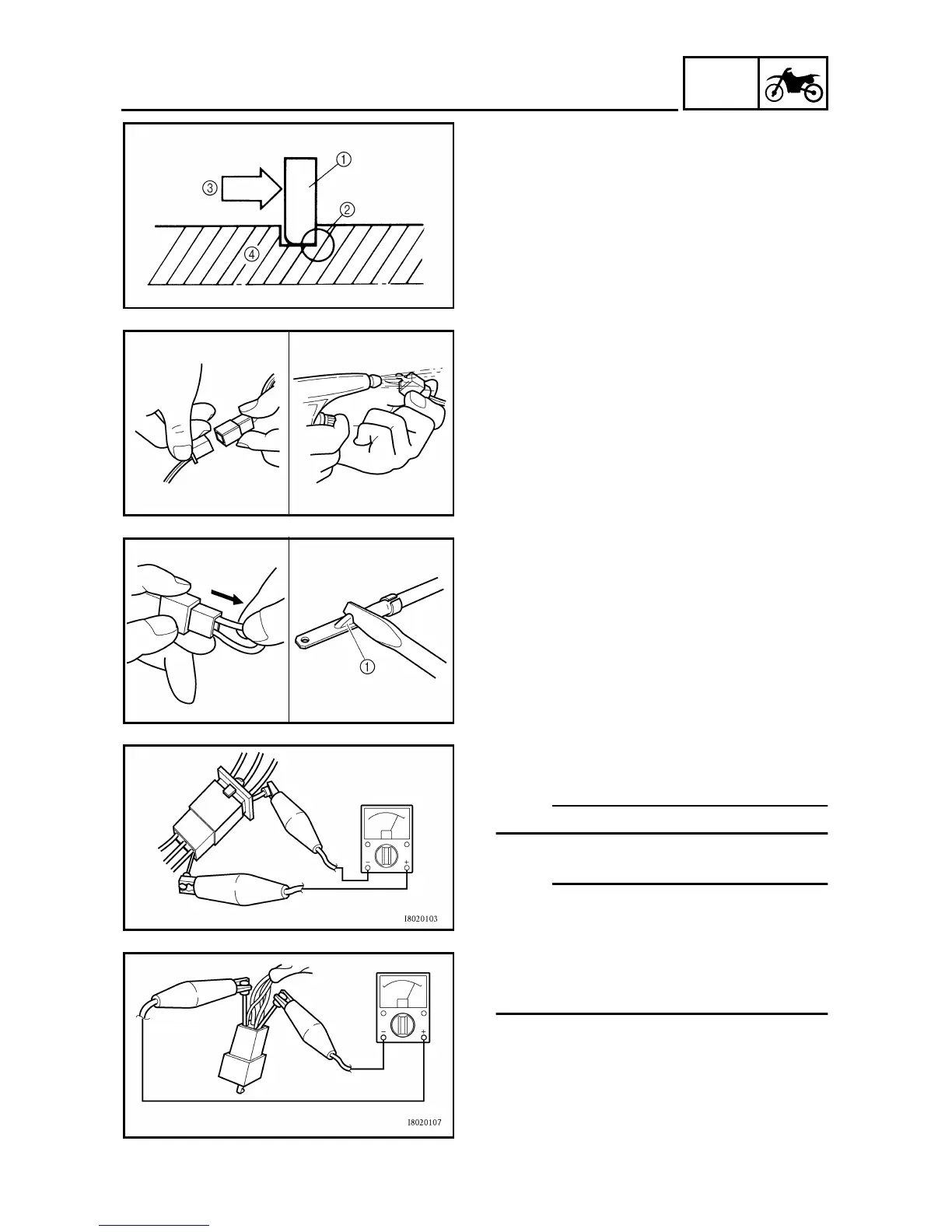

CIRCLIPS
1. All circlips should be inspected carefully
before reassembly. Always replace pis-
ton pin clips after one use. Replace dis-
torted circlips. When installing a circlip
1, make sure that the sharp-edged cor-
ner 2 is positioned opposite to the thrust
3 it receives. See the sectional view.
4 Shaft
CHECKING OF CONNECTION
Dealing with stains, rust, moisture, etc. on the
connector.
1. Disconnect:
● Connector
2. Dry each terminal with an air bower.
3. Connect and disconnect the connector
two or three times.
4. Pull the lead to check that it will not come
off.
5. If the terminal comes off, bend up the pin
1 and reinsert the terminal into the con-
nector.
6. Connect:
● Connector
OTE:
● If there in no continuity, clean the terminals.
● Be sure to perform the steps 1 to 7 listed
above when checking the wireharness.
● For a field remedy, use a contact revitalizer
available on the market.
● Use the tester on the connector as shown.
