5 - 6
CHAS
FRONT FORK
EC550000
FRONT FORK
Extent of removal:
1
Front fork removal
Extent of removal Order Part name Q’ty Remarks

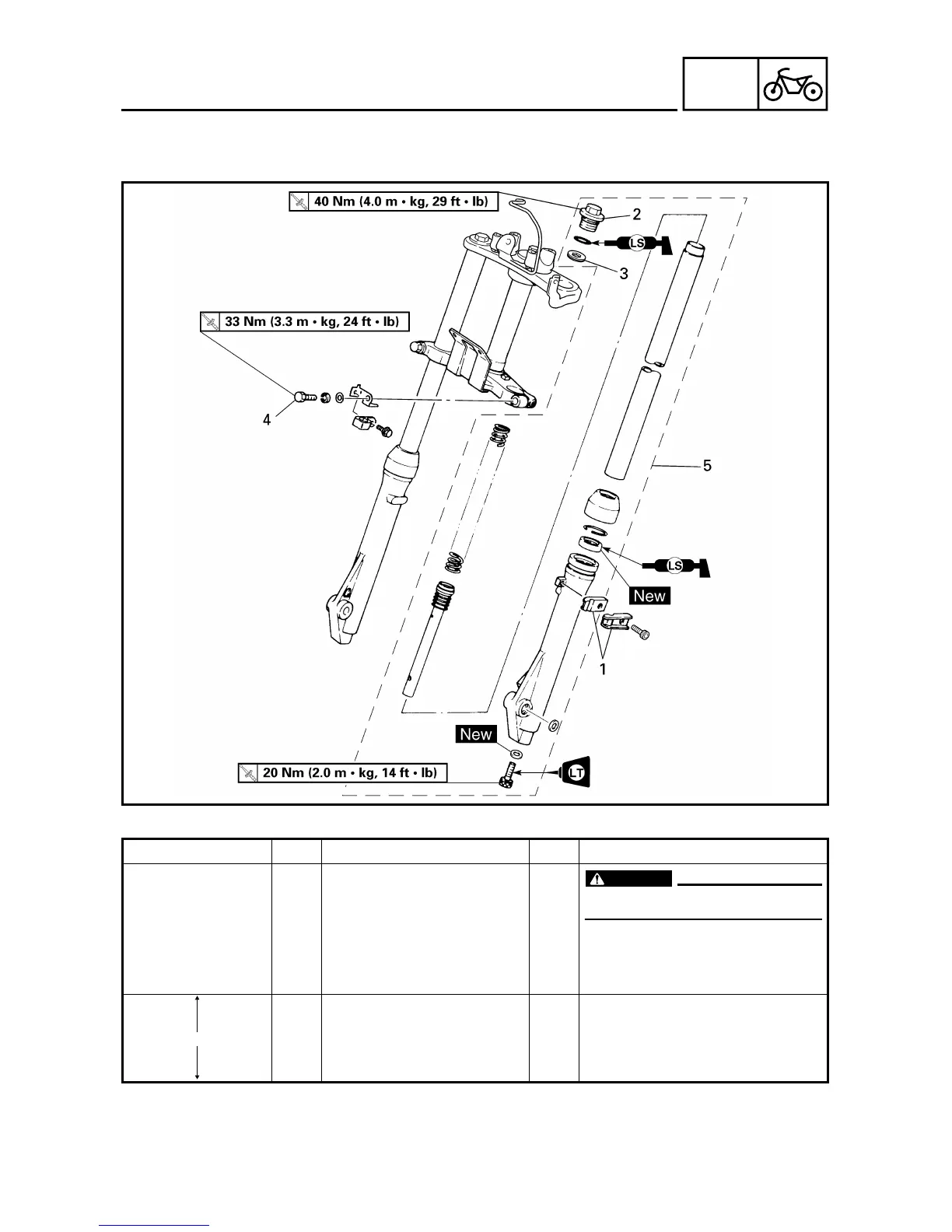

FRONT FORK REMOVAL
WARNING
Support the machine securely so there is no
danger of it falling over.
Preparation for removal Hold the machine by placing the
suitable stand under the engine.
Front wheel Refer to “FRONT WHEEL AND REAR
WHEEL” section.
Handlebar Refer to “HANDLEBAR” section.
Front fender
1 Brake cable holder 1
2 Cap bolt 1
3 Adjuster 1 Only loosening.
4 Pinch bolt (under bracket) 1 Only loosening.
5 Front fork 1
1
