5 - 1
CHAS
EC500000
CHASSIS
FRONT WHEEL AND REAR WHEEL

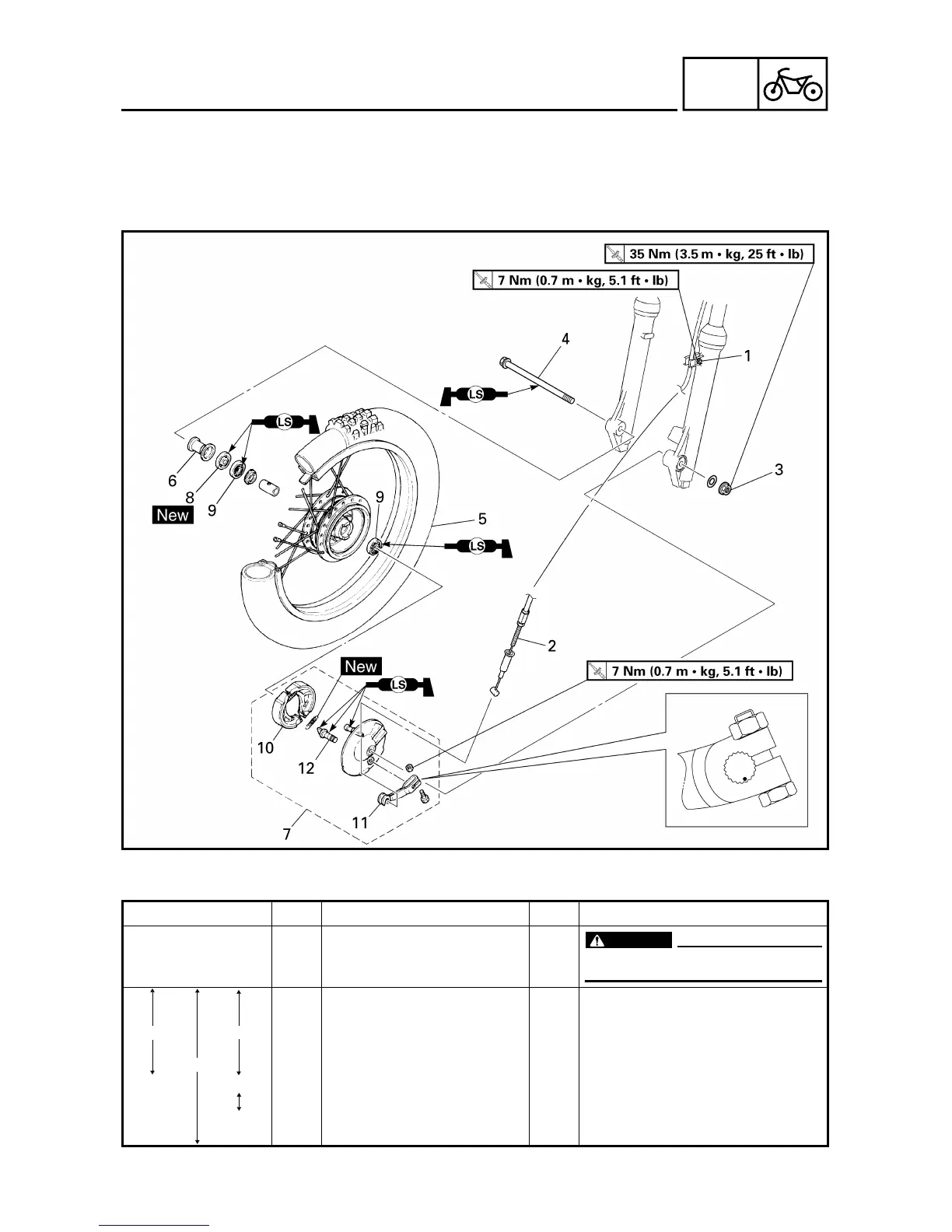

FRONT WHEEL AND FRONT BRAKE
FRONT WHEEL AND REAR WHEEL
Extent of removal:
1
Front wheel removal
2
Wheel bearing removal
3
Brake shoe plate assembly removal and disassembly
Extent of removal Order Part name Q’ty Remarks
FRONT WHEEL REMOVAL
WARNING
Support the machine securely so there is no
danger of it falling over.
Preparation for removal Hold the machine by placing the
suitable stand under the engine.
1 Bolt (brake cable holder) 1 Only loosening.
2 Brake cable 1 Disconnect at the lever side.
3 Wheel axle nut 1
4 Front wheel axle 1
5 Front wheel 1
6 Collar set 1
7 Brake shoe plate assembly 1
8 Oil seal 1
9
Bearing
2
Refer to “REMOVAL POINTS”.
2
3
1
3
To Next Page
