Yamaha TT-R90(T) User Manual

4 - 39
ENG

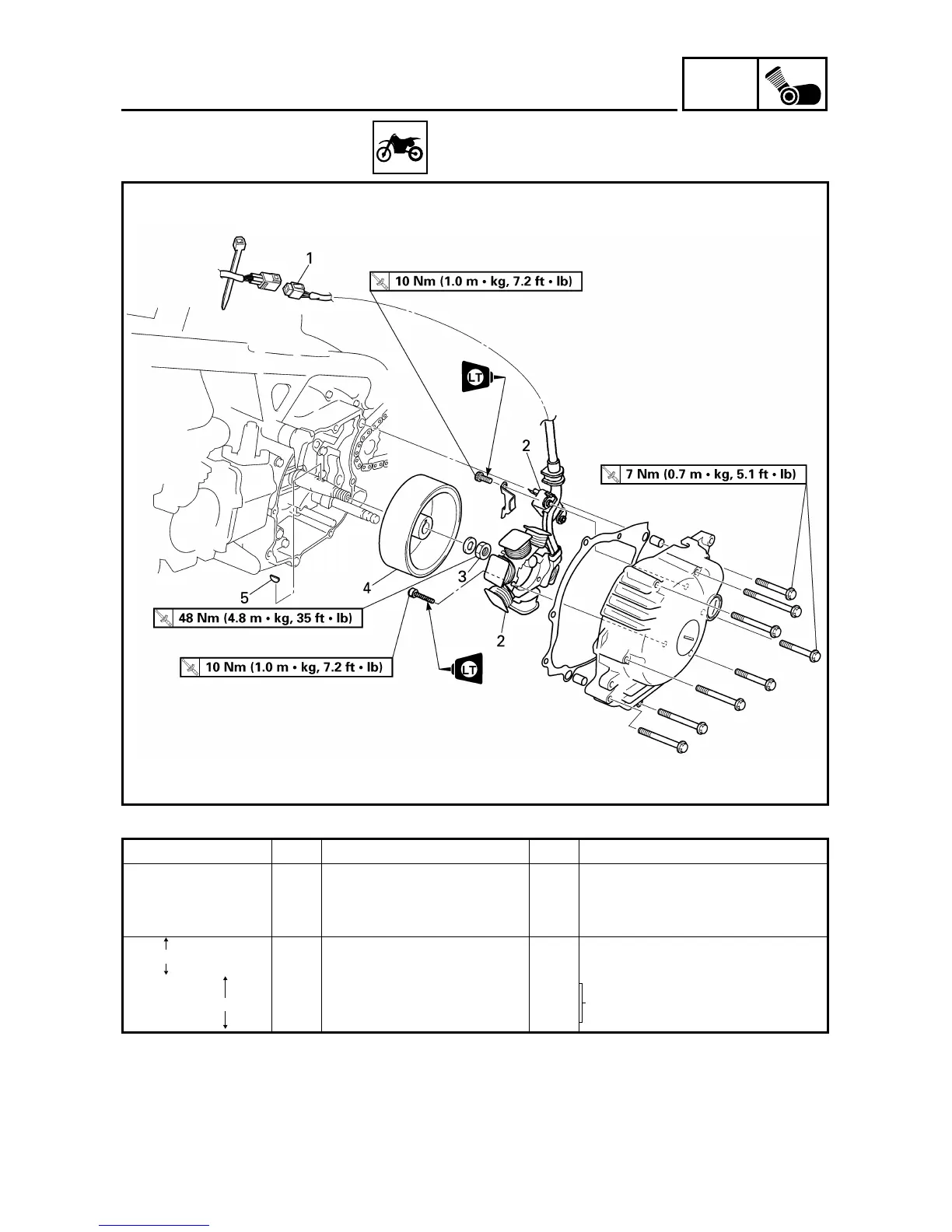

CDI MAGNETO (TT-R90)
Extent of removal: 1 Pickup coil/stator assembly removal 2 Rotor removal
Extent of removal Order Part name Q’ty Remarks
CDI MAGNETO AND STATOR
REMOVAL
Preparation for removal Fuel tank
Crankcase cover (left) Refer to “CLUTCH” section.
1 CDI magneto coupler 1
2 Pickup coil/stator assembly 1
3 Rotor nut 1
Use special tool.
Refer to “REMOVAL POINTS”.
4 Rotor 1
5 Woodruff key 1
1
2
CDI MAGNETO (TT-R90)
