4 - 27
ENG
CLUTCH
CLUTCH
CRANKCASE COVER (LEFT AND RIGHT)
Extent of removal:
1
Crankcase cover (left) removal
2
Crankcase cover (right) removal

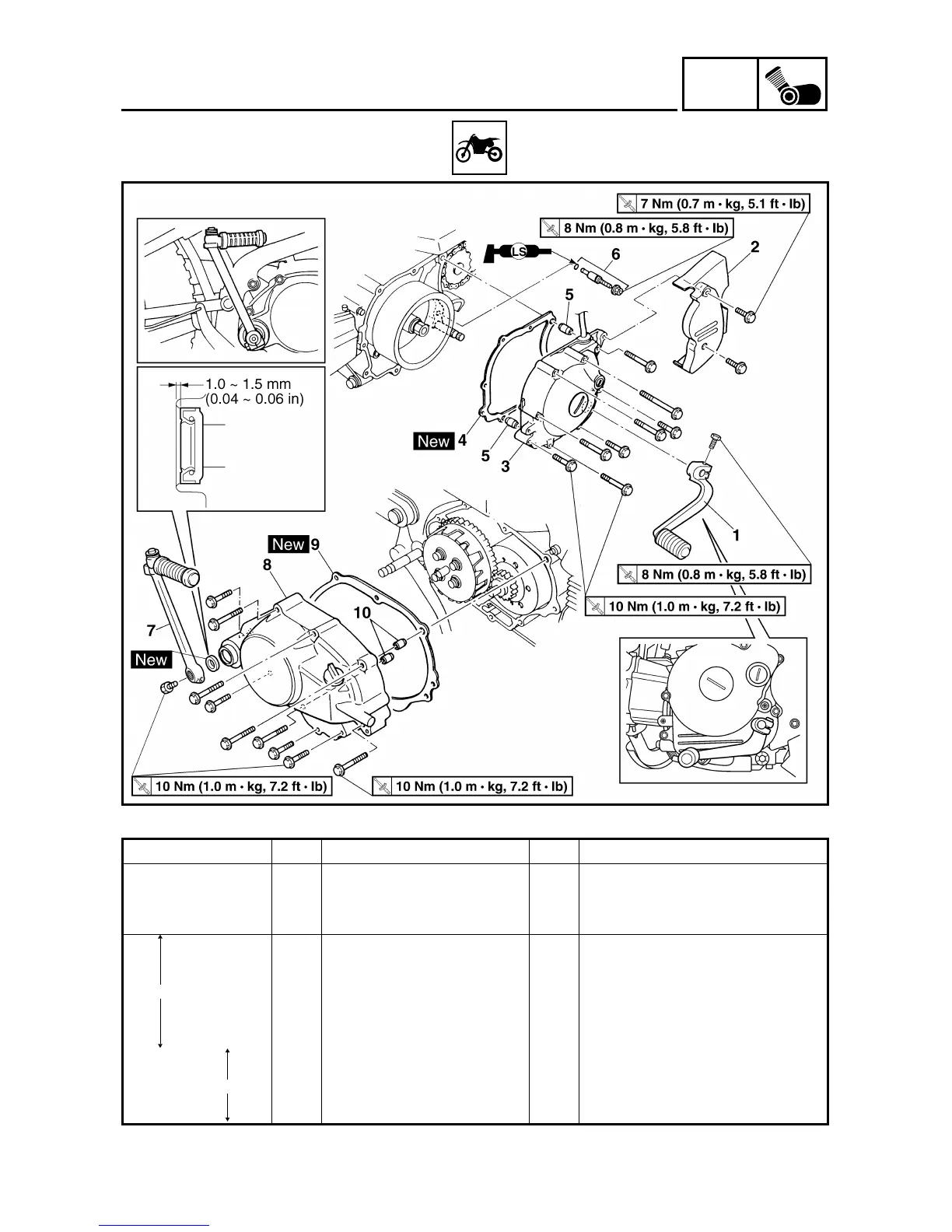

Extent of removal Order Part name Q’ty Remarks
CRANKCASE COVER (LEFT
AND RIGHT) REMOVAL
Preparation for removal Drain the engine oil. Refer to “ENGINE OIL REPLACEMENT”
section in the CHAPTER 3.
1 Shift pedal 1
2 Drive sprocket cover 1
3 Crankcase cover (left) 1
4 Gasket 1
5 Dowel pin 2
6 Clutch adjusting screw 1
7 Kick crank 1
8 Crankcase cover (right) 1
9 Gasket 1
10 Dowel pin 2
1
2
To Next Page
