4 - 36

ENG

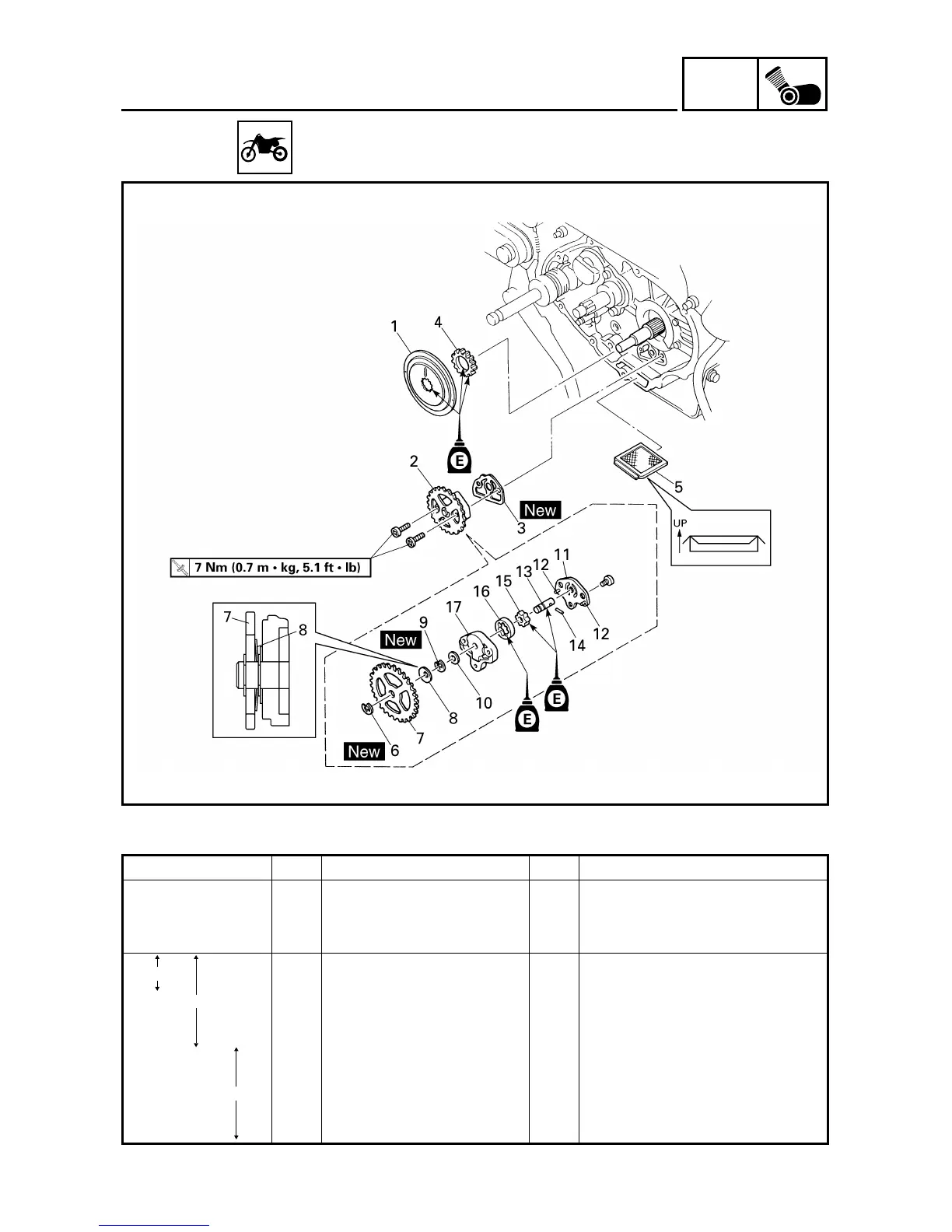

OIL PUMP

Extent of removal: 1 Oil pump removal 2 Oil strainer removal

3 Oil pump disassembly

Extent of removal Order Part name Q’ty Remarks

OIL PUMP REMOVAL AND DIS-

ASSEMBLY

Preparation for removal Clutch housing and clutch carrier Refer to “CLUTCH” section.

Shift shaft Refer to “SHIFT SHAFT” section.

1 Rotary filter 1

2 Oil pump assembly 1

3 Gasket 1

4 Oil pump drive gear 1

5 Oil strainer 1

6 Circlip 1

7 Oil pump driven gear 1

8 Spring washer 1

9 Circlip 1

10 Washer 1
