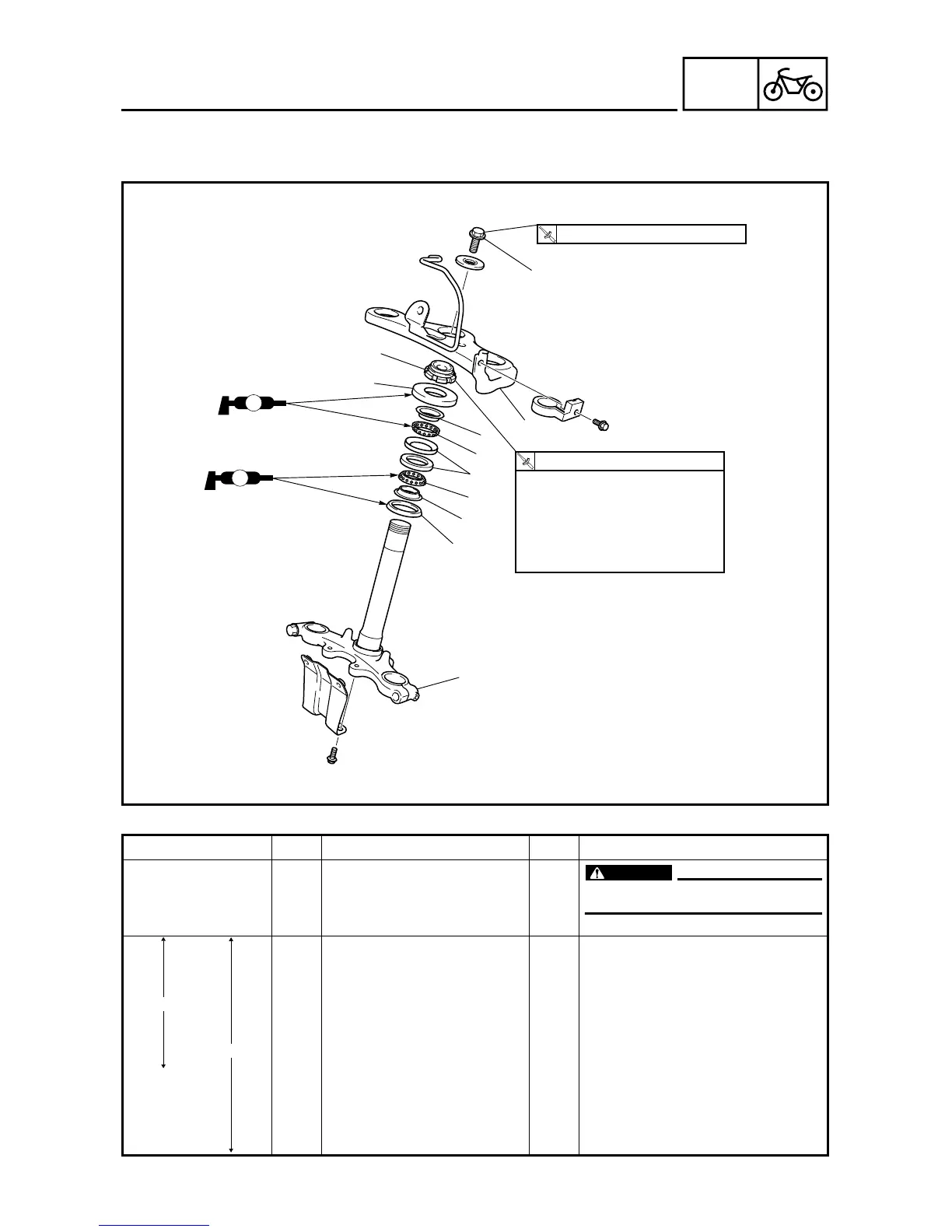

5 - 11
CHAS
STEERING
EC560000
STEERING
LS
LS
T
R
.
.
TIGHTENING STEPS:
•Tighten ring nut.
38 Nm (3.8 m • kg, 27 ft • Ib)
•Loosen it completely.
•Retighten it.
1 Nm (0.1 m • kg, 0.7 ft • Ib)
T
R
.
.
40 Nm (4.0 m • kg, 29 ft • Ib)
5
9
6
8
10
7
6
4
3
2
1
Extent of removal: 1 Under bracket removal 2 Bearing removal
Extent of removal Order Part name Q’ty Remarks
STEERING REMOVAL
WARNING
Support the machine securely so there is no
danger of it falling over.
Preparation for removal Hold the machine by placing the
suitable stand under the engine.
Front fork Refer to “FRONT FORK” section.
1 Steering stem bolt 1
2 Handle crown 1
3 Ring nut 1 Use special tool.
Refer to “STEERING HEAD INSPEC-
TION AND ADJUSTMENT” section in
the CHAPTER 3.
4 Ball race cover 1
5 Under bracket 1
6 Bearing inner race 2
7 Upper bearing ball 19
8 Lower bearing ball 16
9 Dust seal 1
10 Bearing outer race 2
2
1
To Next Page
