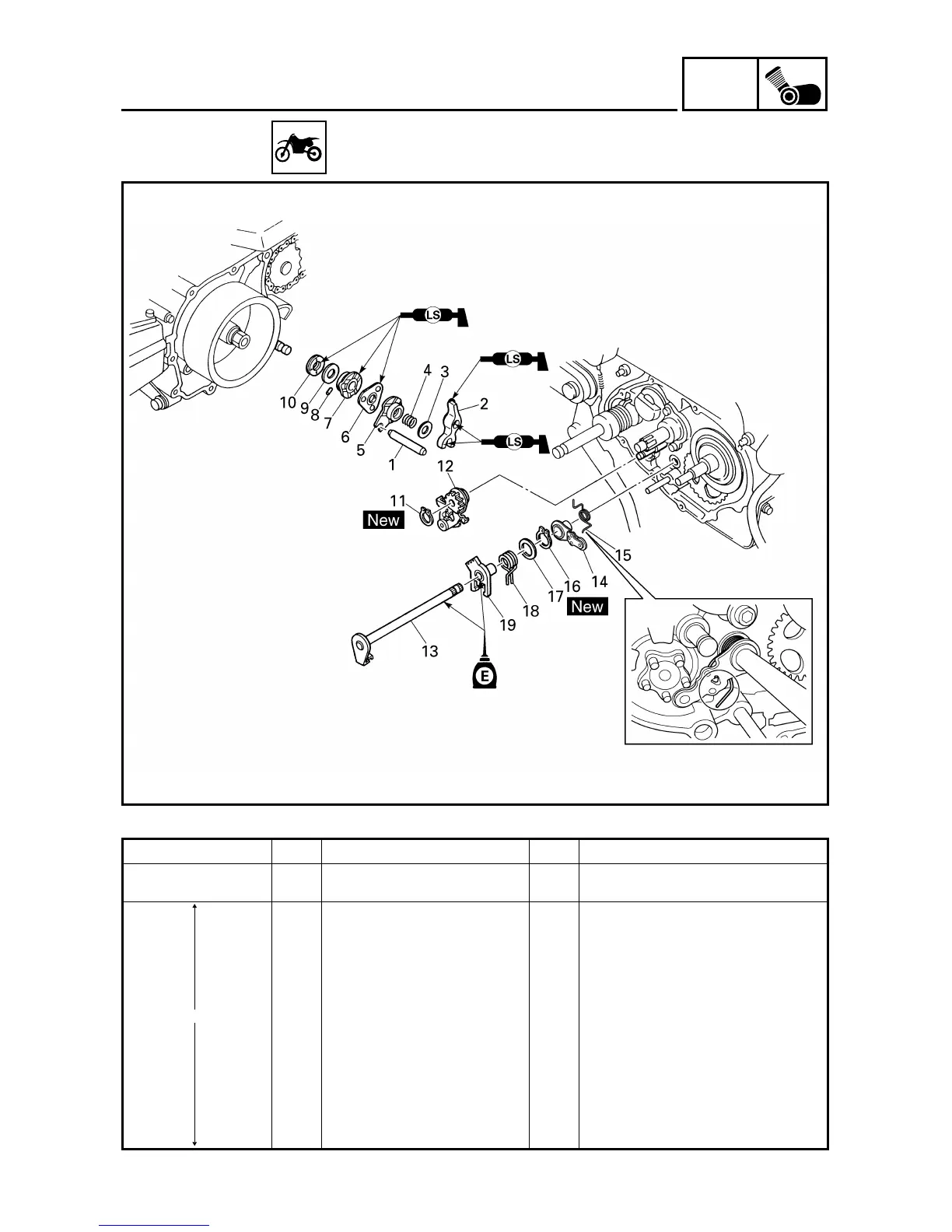

SHIFT SHAFT
SHIFT SHAFT
Extent of removal: 1 Shift shaft removal
Extent of removal Order Part name Q’ty Remarks
SHIFT SHAFT REMOVAL
Preparation for removal Clutch housing and clutch carrier Refer to “CLUTCH” section.
1 Shift fork guide bar 1
2 Shift arm 3 1
3 Plate washer 1
4 Compression spring 1
5 Shift guide 1
6 Ball holder 1
7 Guide 1
8 Dowel pin 1
9 Plate washer 1
10 Thrust bearing 1
11 Circlip 1
12 Shift lever assembly 1
13 Shift shaft 1
