4 - 48
ENG

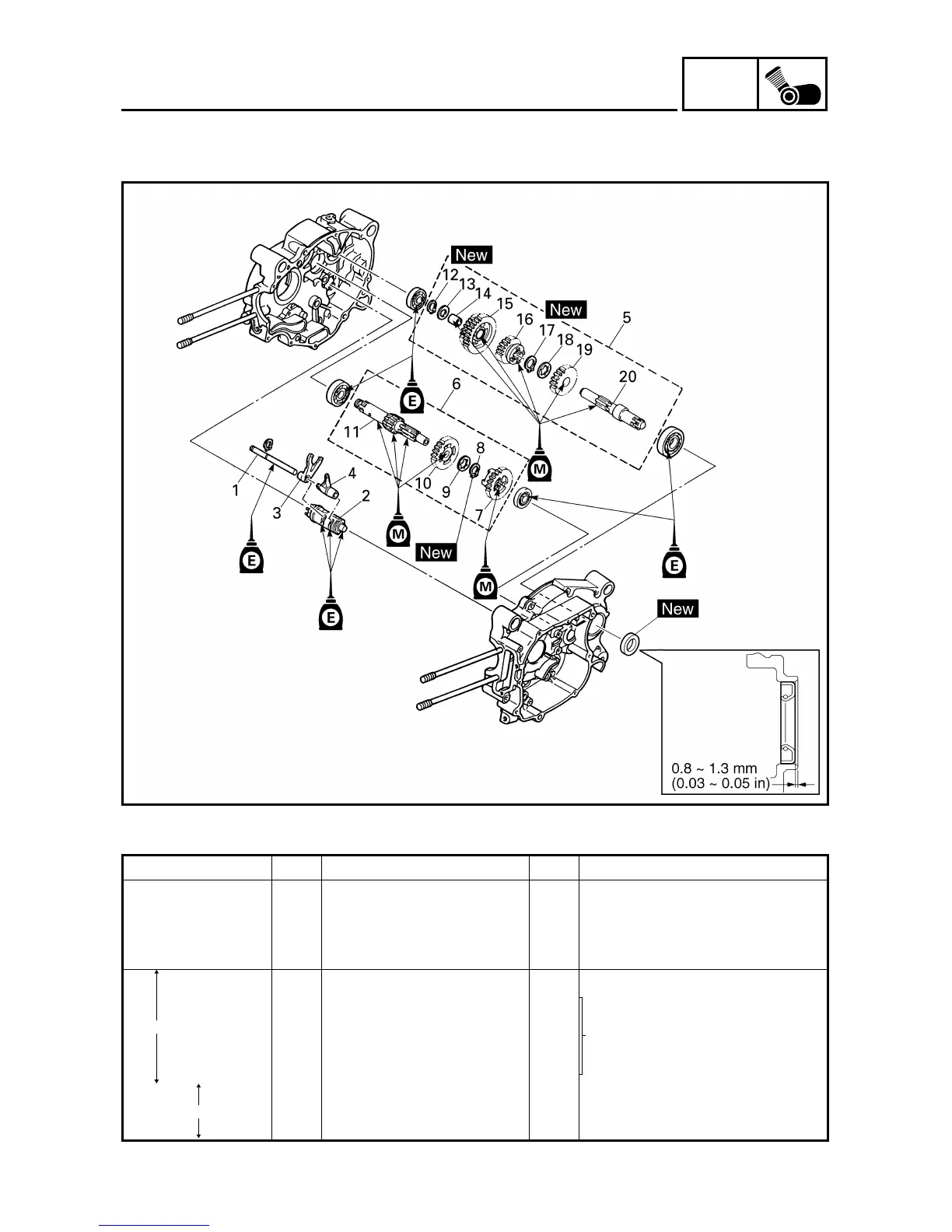

SHIFT FORK, SHIFT CAM AND TRANSMISSION
SHIFT FORK, SHIFT CAM AND TRANSMISSION
Extent of removal: 1 Shift fork, shift cam, main axle and drive axle removal
2 Main axle disassembly 3 Drive axle disassembly
Extent of removal Order Part name Q’ty Remarks
SHIFT FORK, SHIFT CAM
TRANSMISSION REMOVAL
Preparation for removal Engine assembly
Separate the crankcase. Refer to “CRANKCASE AND CRANK-
SHAFT” section.
1 Guide bar 1
2 Shift cam 1
Refer to “REMOVAL POINTS”.
3 Shift fork 2 “R” 1
4 Shift fork 1 “L” 1
5 Drive axle assembly 1
6 Main axle assembly 1
7 2nd pinion gear 1
8 Circlip 1
9 Washer 1
1
2
To Next Page
